Switch Ruijie Networks

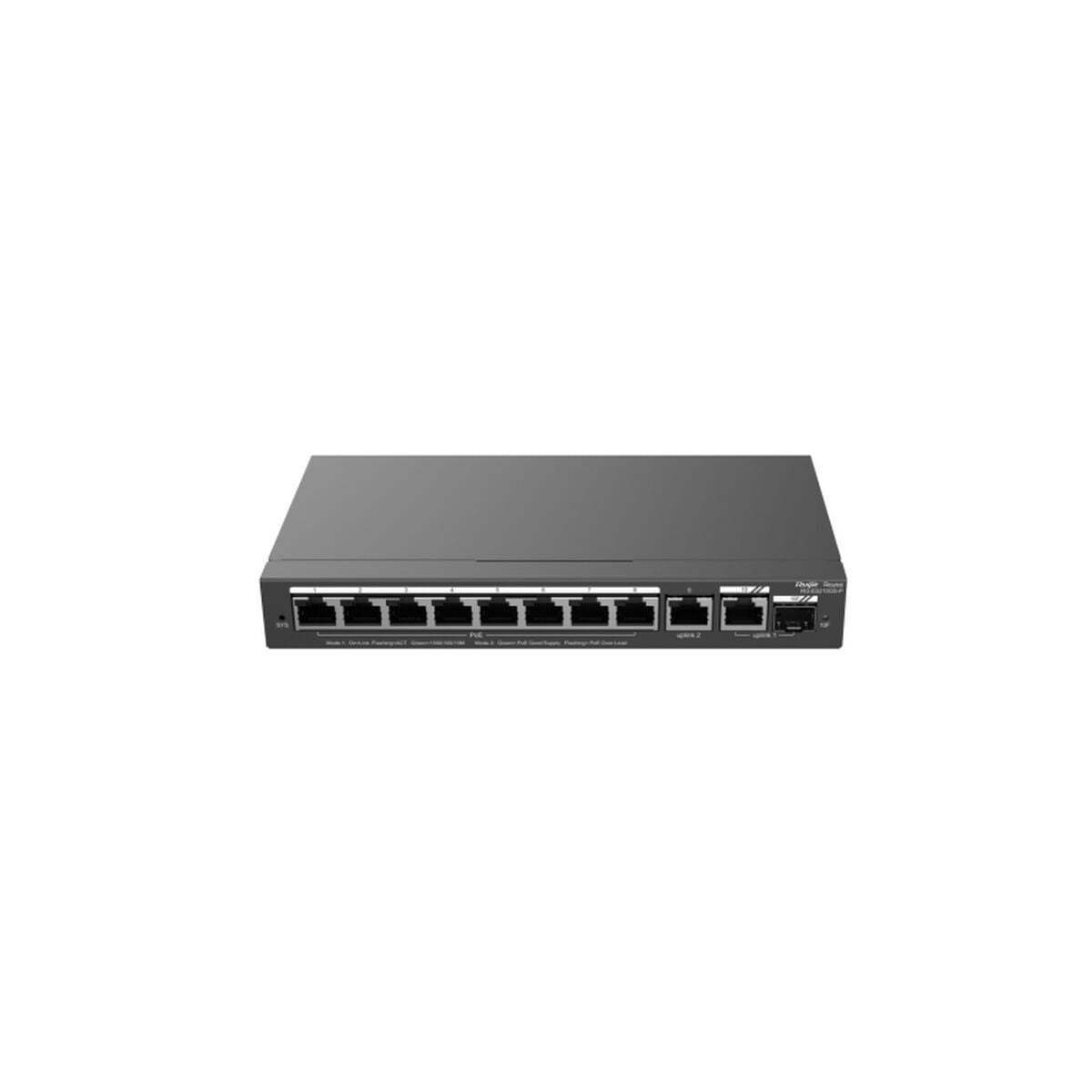

The Reyee Switch 8xGbE 2xUplink 1xSFP Combo PoE 120W from Ruijie Networks is a Layer 2 managed switch designed for professional environments requiring efficient and secure network management. This device features a total of 10 Gigabit Ethernet RJ-45 ports (10/100/1000 Mbps), including 8 PoE+ ports with a 120 W power budget, allowing it to power compatible devices such as IP cameras, VoIP phones, and access points without additional power supplies. It also includes 2 SFP slots for uplinks, offering flexibility for fiber connections or higher-speed links in larger network setups. Its switching capacity reaches 20 Gbit/s with a forwarding rate of 14.8 million packets per second, supported by a 4.1 MB packet buffer, ensuring smooth traffic handling and low latency.

This switch stands out for its web-based and cloud management, simplifying configuration, monitoring, and remote maintenance, significantly reducing operational time and costs. It supports key network standards like IEEE 802.3af and 802.3at, essential for Power over Ethernet (PoE) delivery. Advanced network features include VLAN support for up to 16 VLANs, flow control, DHCP Client, DHCP Snooping, and compatibility with IGMP, providing security, segmentation, and traffic optimization in multi-user and multi-device networks. It also includes loop protection to maintain service continuity in redundant environments.

With a compact and robust design, this unit is fully stackable and rack-mountable with dimensions of 202 mm wide, 108 mm deep, and 28 mm high, weighing 1.38 kg. It operates within a standard temperature range of 0 to 40 °C and supports relative humidity between 10% and 90%, suitable for office and telecom settings. Its power input is versatile, with a voltage range of 100-240 V AC and support for AC, DC, and PoE power. It includes a physical reset button for quick configuration recovery and has a moderate operational noise level of 45 dB. Its mean time between failures (MTBF) is 200,000 hours, ensuring long-term reliability and durability.

This model includes an installation guide and power cable, facilitating setup. In summary, the Reyee Switch 8xGbE 2xUplink 1xSFP Combo PoE 120W by Ruijie Networks offers an efficient and adaptable solution for corporate or SMB networks requiring advanced control, integrated PoE power, and simplified cloud management.

• Product with plug: Yes
• Type of plug: Plug EU
• Type:
  • Switch
  • Stackable
• Power supply: Electric Network
• Colour: Black
• Noise level: 45 dB
• Characteristics: Installation guide included
• Number of slots: 2
• Connections:
  • RJ45
  • Ethernet LAN
• Power: 120 W
• Voltage: 100 - 240 V
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Safety: IGMP
• Amperage: 0,6 A
