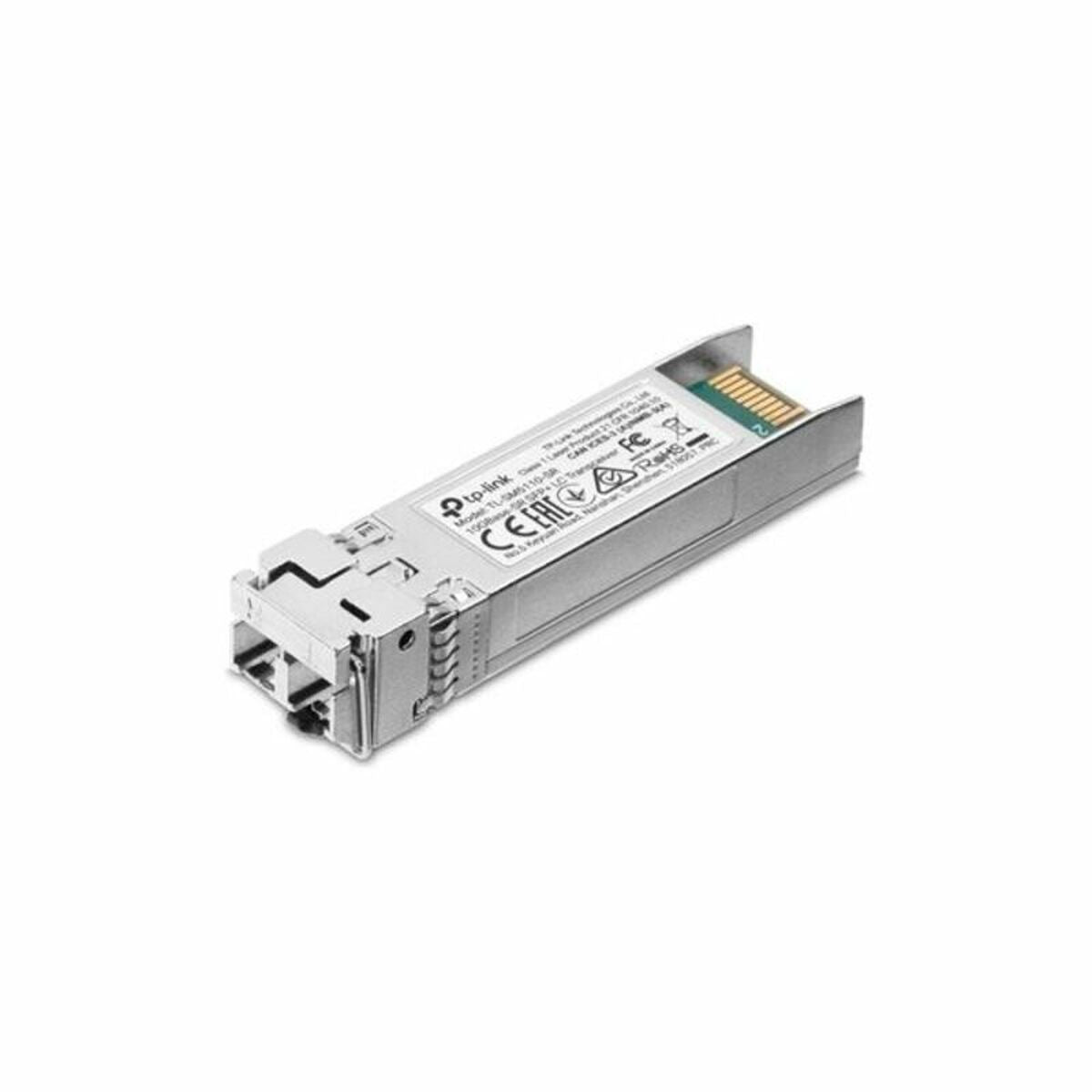

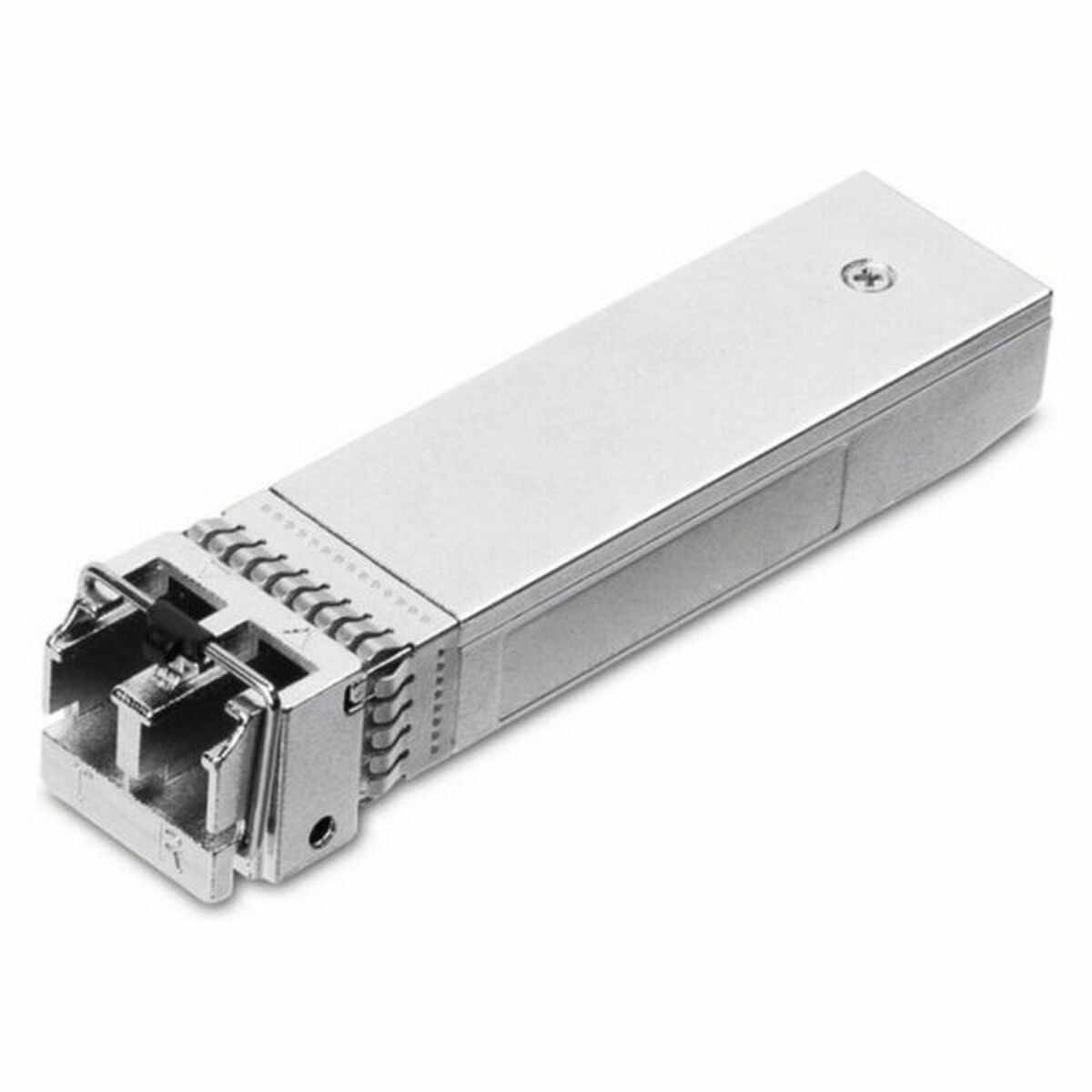

SFP LC Optical Module TP-Link TL-SM5110-SR

The TP-Link SFP LC TL-SM5110-SR optical module is a transceiver designed for high-speed networks requiring reliable and efficient fiber optic connections. This device features an SFP+ interface compatible with 10G ports, allowing a maximum data transfer speed of 10 Gbps, ideal for network infrastructures demanding high bandwidth, such as data centers or advanced enterprise environments. It uses multimode fiber with a wavelength of 850 nm, optimized for short-range connections, and includes an LC type connector that ensures a secure and stable connection with fiber optic cables. Its silver design and wired construction provide durability and compatibility with modern network equipment standards, as well as hot-pluggable capability, allowing installation or replacement without powering down the device. It operates with an input voltage of 3.3 V and complies with international certifications such as FCC and CE, ensuring quality and adherence to safety and performance regulations. Additionally, it supports digital diagnostic monitoring (DDM), providing real-time information on operational parameters like temperature, signal power, and voltage, crucial for proactive and efficient network maintenance. Compatible with switches and devices supporting the Multi-Source Agreement (MSA) for SFP+ standard, this TP-Link transceiver is a reliable and versatile solution to upgrade or expand fiber optic networks with optimal performance. Overall, the TL-SM5110-SR is a technical component offering stability, compatibility, and speed for environments requiring professional, high-quality connectivity.

• Type:
  • Cabling
  • Fibre optic
• Speed: 10 Gbps
• Connections:
  • LC
  • SFP+
  • USB 2.0 x 2
• Colour: Silver
• AC input voltage: 3.3 V
• Operating System: Windows 10 Pro
• Certificate: CE
• Working range for humidity: 10 % - 90 %
• Working range for temperature: 0º / 70º
• Voltage: 3,3 V

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

• SFP transceiver type: Fiber optic
• Maximum data transfer rate: 10000 Mbit/s
• Interface type: SFP+
• Multi-mode fiber (MMF) supported: Y
• Fiber optic connector: LC (UPC)
• Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
• Maximum transfer distance: 300 m
• Wavelength: 850 nm
• Digital Diagnostics Monitoring (DDM): Y
• Product colour: Silver
• Hot-swap: Y
• Certification: FCC, CE
• Input voltage: 3.3 V
• Operating temperature (T-T): 0 - 70 °C
• Storage temperature (T-T): -40 - 80 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
