SFP LC Optical Module TP-Link TL-SM5110-SR
If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy SFP LC Optical Module TP-Link TL-SM5110-SR at an unbeatable price.
General Product Safety Regulations information:
TP-Link Technologies Co., Ltd.
Feldring 9, Hofheim am Taunus, Germany, 65719
65719 - Hofheim am Taunus
+34912000727
support.uk@tp-link.com
https://www.tp-link.com
- Speed: 10 Gbps
- Type:
- Wired
- Fibre optic
- Characteristics: With cable
- Colour: Silver
- Operating System: Windows 10 Pro
- Certificate: CE
- Working range for humidity: 10 % - 90 %
- Working range for temperature: 0º / 70º
- Voltage: 3,3 V
- Connections:
- SFP+
- USB 2.0 x 2

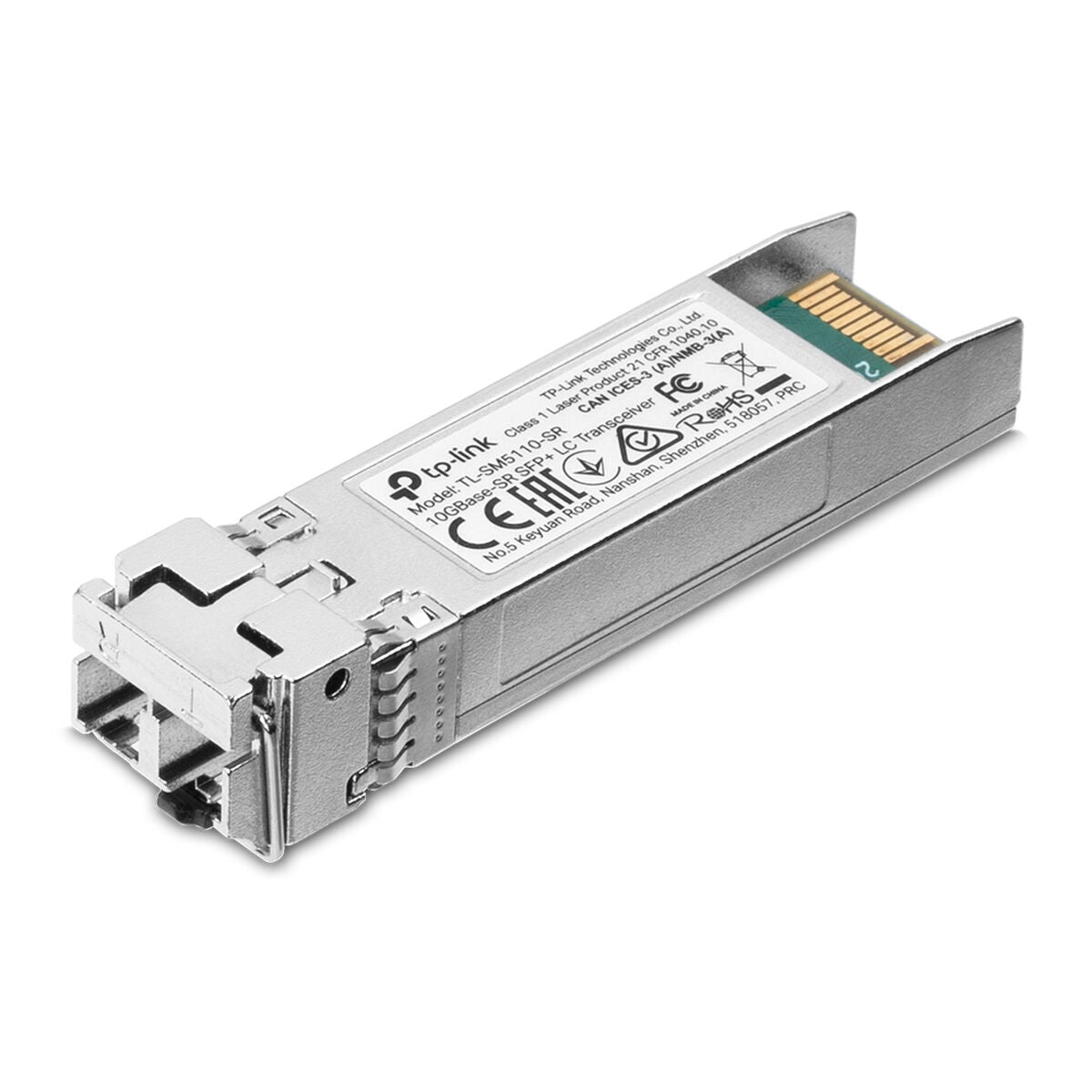

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Multi-mode fiber (MMF) supported: Y
- Fiber optic connector: LC (UPC)
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- Maximum transfer distance: 300 m
- Wavelength: 850 nm
- Digital Diagnostics Monitoring (DDM): Y
- Product colour: Silver
- Hot-swap: Y
- Certification: FCC, CE
- Input voltage: 3.3 V
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 80 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
