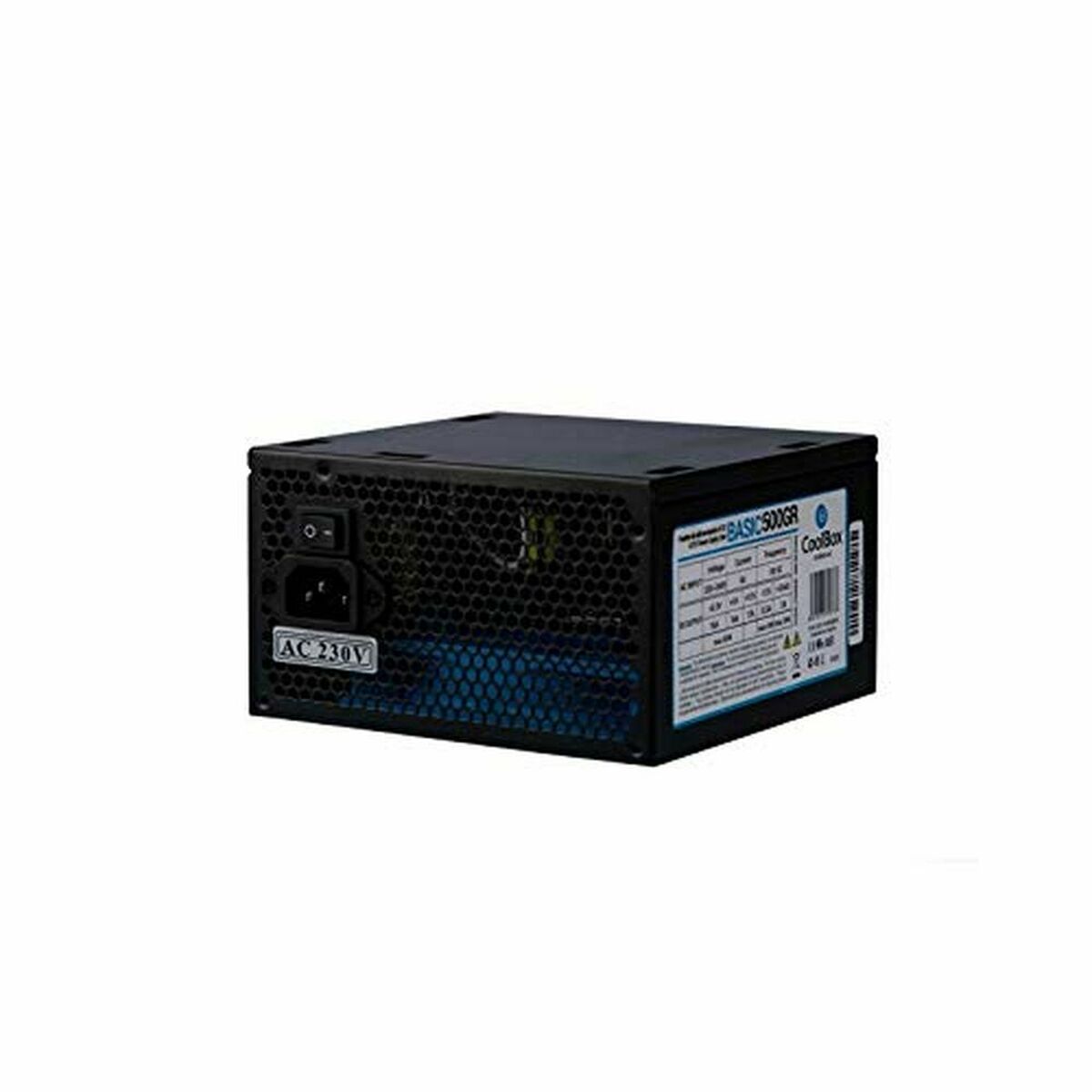

Power supply CoolBox COO-FA500B-BKB ATX 500 W RoHS CE

• Depth: 140 mm
• Width:
  • 150 mm
  • 15 cm
• Recommended use:
  • Desktop PC
  • PC
• Form factor: ATX
• Power:
  • 500 W
  • 6 W
  • 300 W
  • 80 W
• Ventilator:
  • Ø 12 cm
  • 1
  • 12 cm
• Compatible:
  • AMD©
  • Intel®
  • ATX
• Type: Power supply
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • 24 PIN x 1
  • ATX 24-pin x 1
  • SATA x 2
  • FDD x 1
• Colour: Black
• Power supply:
  • Electric Network
  • CA cable
• Characteristics: On/off interrupter
• Year: 2019
• Voltage:
  • 220 V
  • 220-240 V
• Frequency: 50 Hz
• Amperage:
  • 5 A
  • 2 A
• Certificate:
  • RoHS
  • CE

CoolBox Basic 500GR ATX. Total power: 500 W, AC input voltage: 220 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Certification: CE. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

• Total power: 500 W
• AC input voltage: 220 - 240 V
• AC input frequency: 50 Hz
• Input current: 5 A
• Combined power (+3.3V): 80 W
• Combined power (+5V): 80 W
• Combined power (-12V): 6 W
• Combined power (+5Vsb): 10 W
• Max output current (+3.3V): 16 A
• Max output current (+12V): 17 A
• Max output current (+5V): 16 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2 A
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 2
• Number of SATA power connectors: 2
• CPU P4 connector (4-pin): 1
• Cabling type: Non-Modular
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• Certification: CE
• Product colour: Black
• Cooling type: Active
• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• On/off switch: Y
• Width: 150 mm
• Depth: 140 mm
• Height: 86 mm
• Cables included: AC
• Sustainability certificates: RoHS
