NAS Network Storage Synology RS1619XS+ Black Intel Xeon D-1527

The Synology RS1619xs+ is an advanced NAS network storage device designed for professional environments that require high reliability, performance, and scalability. Equipped with a quad-core Intel Xeon D-1527 processor at 2.2 GHz (turbo up to 2.7 GHz) and an AES-NI hardware encryption engine, this server ensures both processing power and data security. It comes with 8GB DDR4 ECC UDIMM memory by default, expandable up to 64GB to support intensive workloads or multiple simultaneous users. Its architecture supports up to 4 internal drive bays compatible with 3.5” SATA HDD, 2.5” SATA HDD or SSD, and M.2 2280 NVMe and SATA SSD, offering a maximum internal capacity of 56 TB (14 TB per drive), expandable via external units up to 224 TB total, ideal for corporate data sizes. It supports various RAID levels including RAID F1, Basic, JBOD, RAID 0, 1, 5, 6, and 10, optimizing redundancy and speed based on user needs. For connectivity, it includes 4 x 1 GbE RJ-45 LAN ports for link aggregation or failover, plus 2 USB 3.0 ports and a dedicated expansion port, facilitating integration with other units or peripherals. The file system supports Btrfs and EXT4 on internal drives and a wide range on external drives, ensuring flexibility and efficient file management. With a compact, robust black design measuring 44 x 480 x 518.6 mm, it weighs 8.16 kg and features dual 150W redundant power supplies for operational continuity, plus a controlled noise level of 39.3 dB, suitable for office or server room environments. Its efficient power consumption is around 68.68 W during activity and 34.78 W in hibernation, compatible with input voltages from 100 to 240 V and frequencies of 50-60 Hz, facilitating global installation. Additional features include scheduled power on/off, power failure recovery, and remote wake options via LAN/WAN. This model is certified under international standards such as FCC and CE, confirming its quality and compliance. In summary, the Synology RS1619xs+ is a professional NAS solution combining power, security, and flexibility for businesses requiring a robust and scalable storage infrastructure.

• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • USB-A 3.2
  • Ethernet LAN
  • 2
  • USB
  • RJ45
  • SATA
• Power supply:
  • Electric Network
  • CA cable
  • Inside
• Type:
  • DDR4
  • NAS
  • HDD/SSD
• Colour: Black
• RAM Memory: 8 GB RAM
• Voltage:
  • 100-240 V
  • 100 - 240 V
• Frequency:
  • 50-60 Hz
  • 50 - 60 Hz
  • 2,7 GHz
• Hard Drive: 128 GB SSD
• Compatible:
  • HDD/SSD
  • 2,5"-3,5"
  • Intel® Turbo Boost Technology 2.0
  • Raid 0,1,5,6,10,JBOD
• Characteristics:
  • On/off interrupter
  • LED indicator
  • Installation guide included
  • Idle states
• Internal Memory: 8 GB
• Power: 35 W
• Ventilator: 2
• 3.5" bays: 4
• Rechargeable lithium battery: 150 mAh
• Connectivity: Ethernet LAN
• Certificate: RoHS
• Requirements: 64 bits
• Speed:
  • 10/100/1000 Mbps
  • 2.2 GHz
• Not included: WiFi
• Memory Type: DDR4
• Cache: 6 MB
• Operating System: DiskStation Manager
• Technology:
  • VT-d
  • VT-x
  • Execute Disable Bit (XD Bit)
• Processor: Intel Xeon D-1527
• Nuclei: 4 Nuclei
• Processor Family: Intel

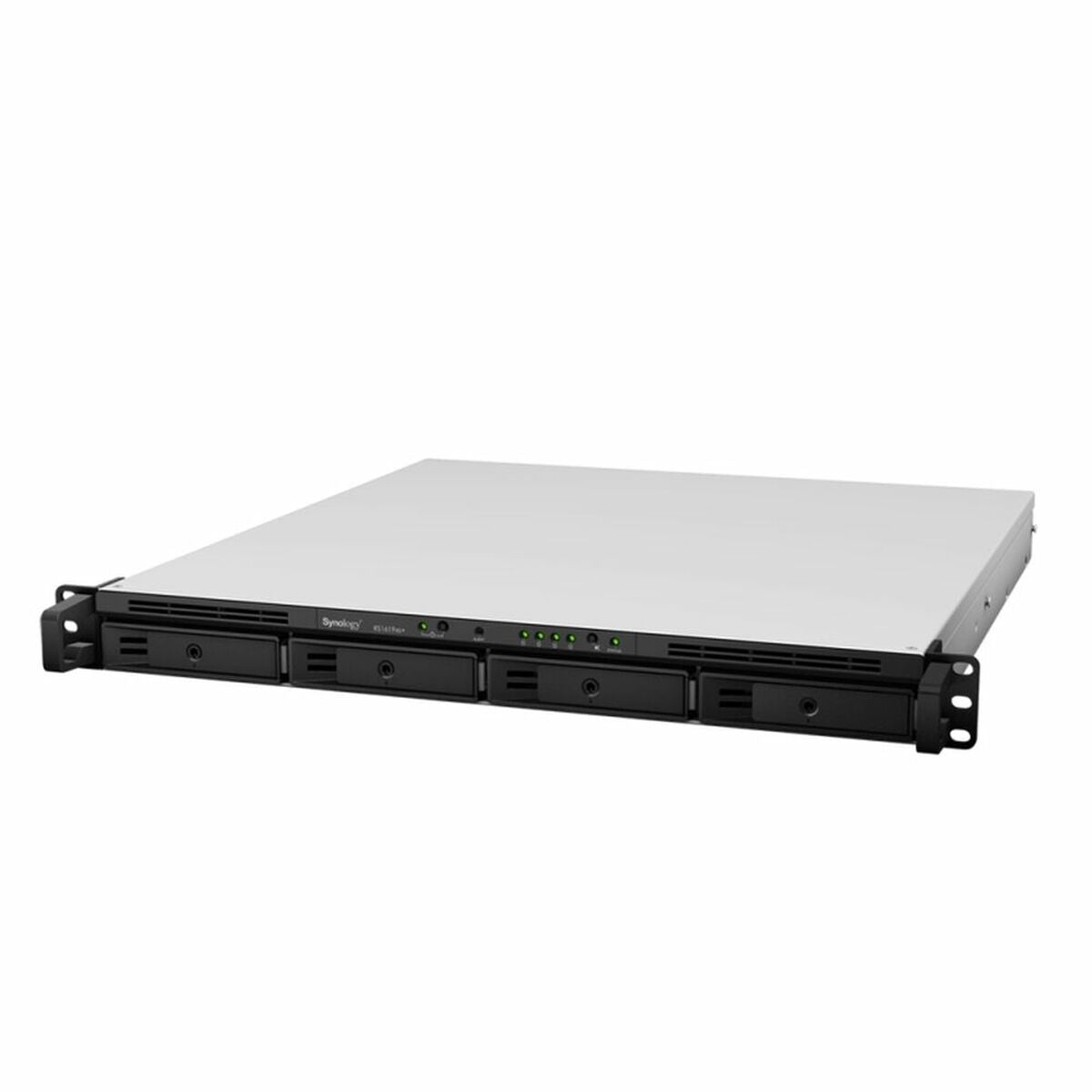

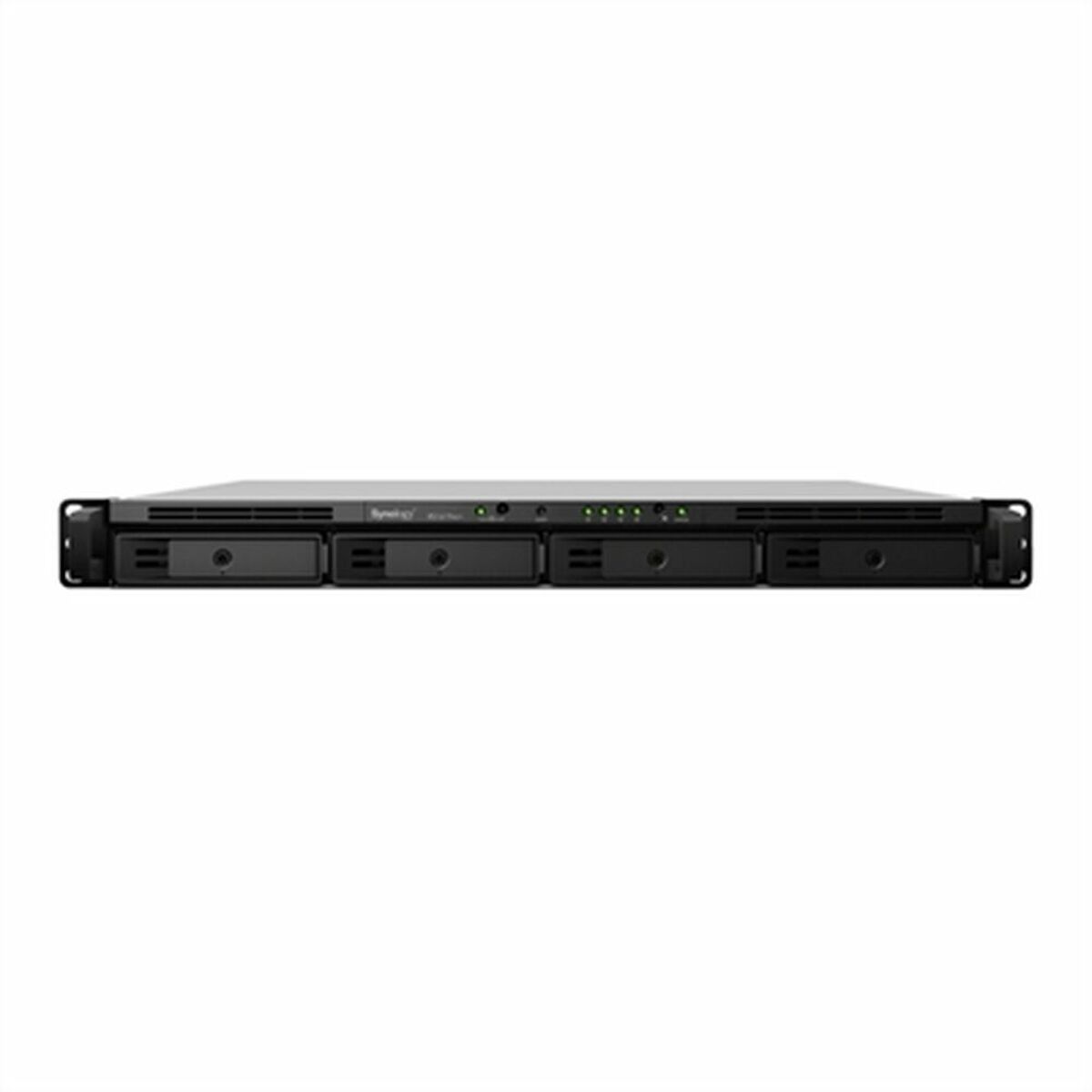

Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty. Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration. RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.

• Storage drives installed: N
• Number of storage drives supported: 4
• Installed storage drive type: N
• Supported storage drive types: HDD & SSD
• Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
• RAID support: Y
• Storage drive sizes supported: 2.5,3.5"
• Number of M.2 (M & B) slots: 2
• RAID levels: 0,1,5,6,10,JBOD
• Hot-swap drive bays: Y
• Supported file systems: BTRFS,FAT,HFS+,NTFS,ext3,ext4
• Processor family: Intel® Xeon® D
• Processor manufacturer: Intel
• Processor model: D-1527
• Processor frequency: 2.2 GHz
• Processor boost frequency: 2.7 GHz
• Processor cores: 4
• Processor threads: 8
• Processor cache: 6 MB
• CPU configuration (max): 1
• ECC supported by processor: Y
• PCI Express configurations: 1x16,1x4,1x8
• PCI Express slots version: 2.0,3.0
• Processor cache type: L3
• Processor code: SR2DK
• Processor codename: Broadwell
• Processor lithography: 14 nm
• Processor operating modes: 64-bit
• Processor package size: 37.5 x 37.5 mm
• Processor series: Intel Xeon D-1500
• Processor socket: BGA 1667
• Scalability: 1S
• Stepping: V2
• Thermal Design Power (TDP): 35 W
• Maximum internal memory supported by processor: 128 GB
• Conflict-Free processor: Y
• Internal memory: 8 GB
• Internal memory type: DDR4
• Maximum RAM supported: 64 GB
• Memory slots: 4
• Ethernet LAN: Y
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Wi-Fi: N
• iSCSI support: Y
• Wake-on-LAN ready: Y
• Supported network protocols: CIFS,AFP,NFS,FTP,WebDAV,CalDAV,iSCSI,Telnet,SSH,SNMP,VPN (PPTP, OpenVPN, L2TP)
• Link aggregation: Y
• USB port: Y
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• PCI Express x8 (Gen 3.x) slots: 1
• Expansion ports quantity: 1
• Chassis type: Rack (1U)
• Cooling type: Active
• Product colour: Black
• Number of fans: 2 fan(s)
• Fan diameter: 4 cm
• LED indicators: Alarm, HDD, Power, Status
• Type: NAS
• Device class: Small & Medium Business
• Backup function: Y
• Backup features: Cloud, iSCSI LUN
• Multilingual support: Y
• Noise level: 39.3 dB
• Web-based management: Y
• Security algorithms: HTTPS,SSH,SSL/TLS
• Access Control List (ACL): Y
• Reset button: Y
• On/off switch: Y
• Browser supported: Chrome, Firefox, Internet Explorer 10+, Safari 10+
• Operating system installed: DiskStation Manager
• Windows operating systems supported: Windows 10,Windows 7
• Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
• Server operating systems supported: Windows Server 2016
• Power supply location: Built-in
• Power supply unit (PSU) capacity: 150 W
• Number of power supply units: 2
• Power consumption (typical): 68.68 W
• Power consumption (HDD standby): 34.78 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Width: 480 mm
• Depth: 518.6 mm
• Height: 44 mm
• Weight: 8.16 kg
• Cables included: AC
• Quick installation guide: Y
• Sustainability certificates: RoHS
• Embedded options available: Y
• Enhanced Intel SpeedStep Technology: Y
• Execute Disable Bit: Y
• Idle States: Y
• Intel 64: Y
• Intel Enhanced Halt State: Y
• Intel Secure Key Technology version: 1.00
• Intel Trusted Execution Technology: Y
• Intel TSX-NI: Y
• Intel TSX-NI version: 1.00
• Intel Virtualization Technology (VT-x): Y
• Intel Virtualization Technology for Directed I/O (VT-d): Y
• Intel VT-x with Extended Page Tables (EPT): Y
• Intel® AES New Instructions (Intel® AES-NI): Y
• Intel® Hyper Threading Technology (Intel® HT Technology): Y
• Intel® OS Guard: Y
• Intel® Secure Key: Y
• Intel® Turbo Boost Technology: 2.0
• Maximum number of PCI Express lanes: 32
• Thermal Monitoring Technologies: Y
• UART: Y
• Memory channels supported by processor: Dual
• Memory types supported by processor: DDR3-SDRAM,DDR4-SDRAM
• Operating temperature (T-T): 5 - 35 °C
• Operating relative humidity (H-H): 5 - 95%
• Storage temperature (T-T): -20 - 60 °C
• Operating altitude: 0 - 5000 m
• Certification: EAC VCCI RCM FCC CE BSMI
• Processor ARK ID: 91195
