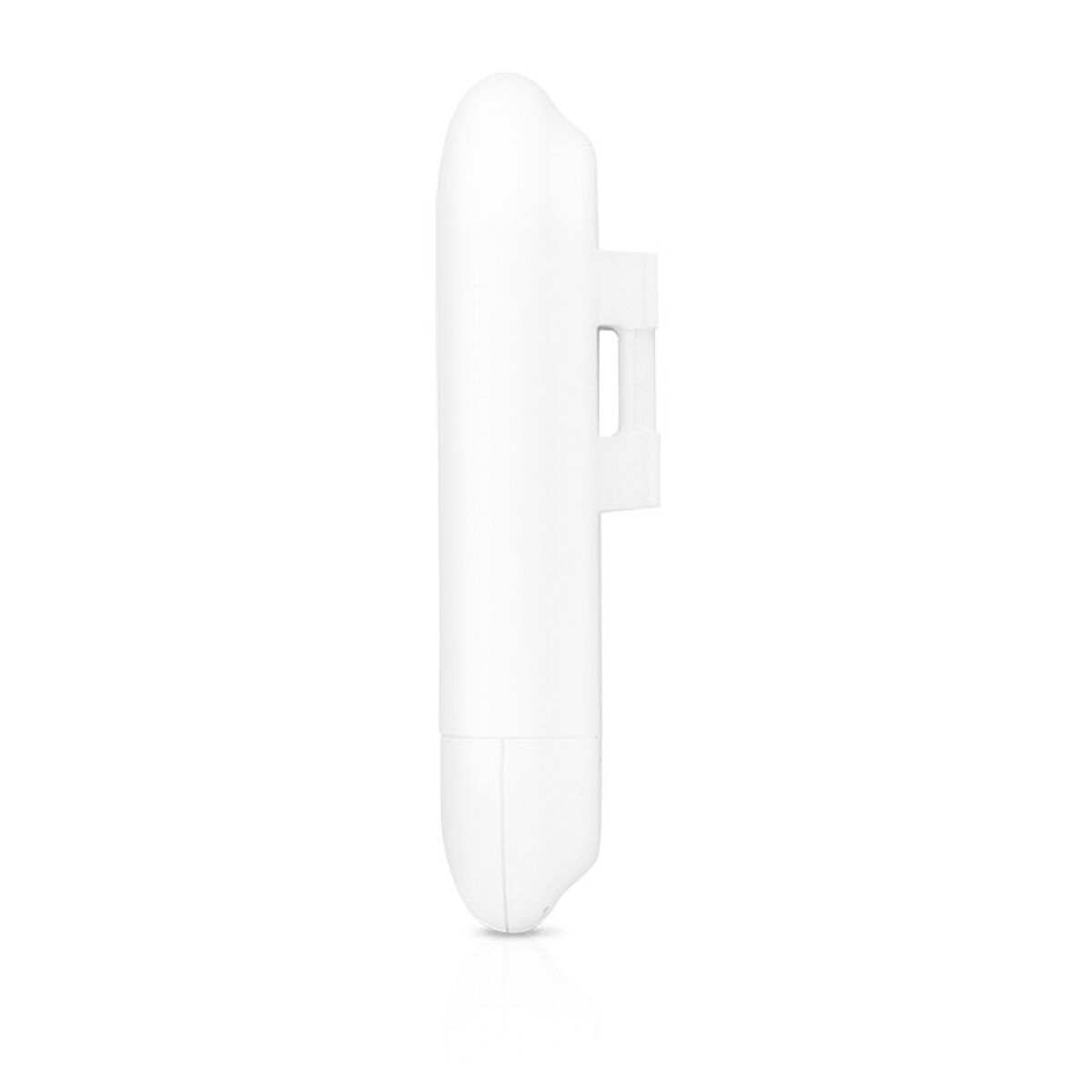

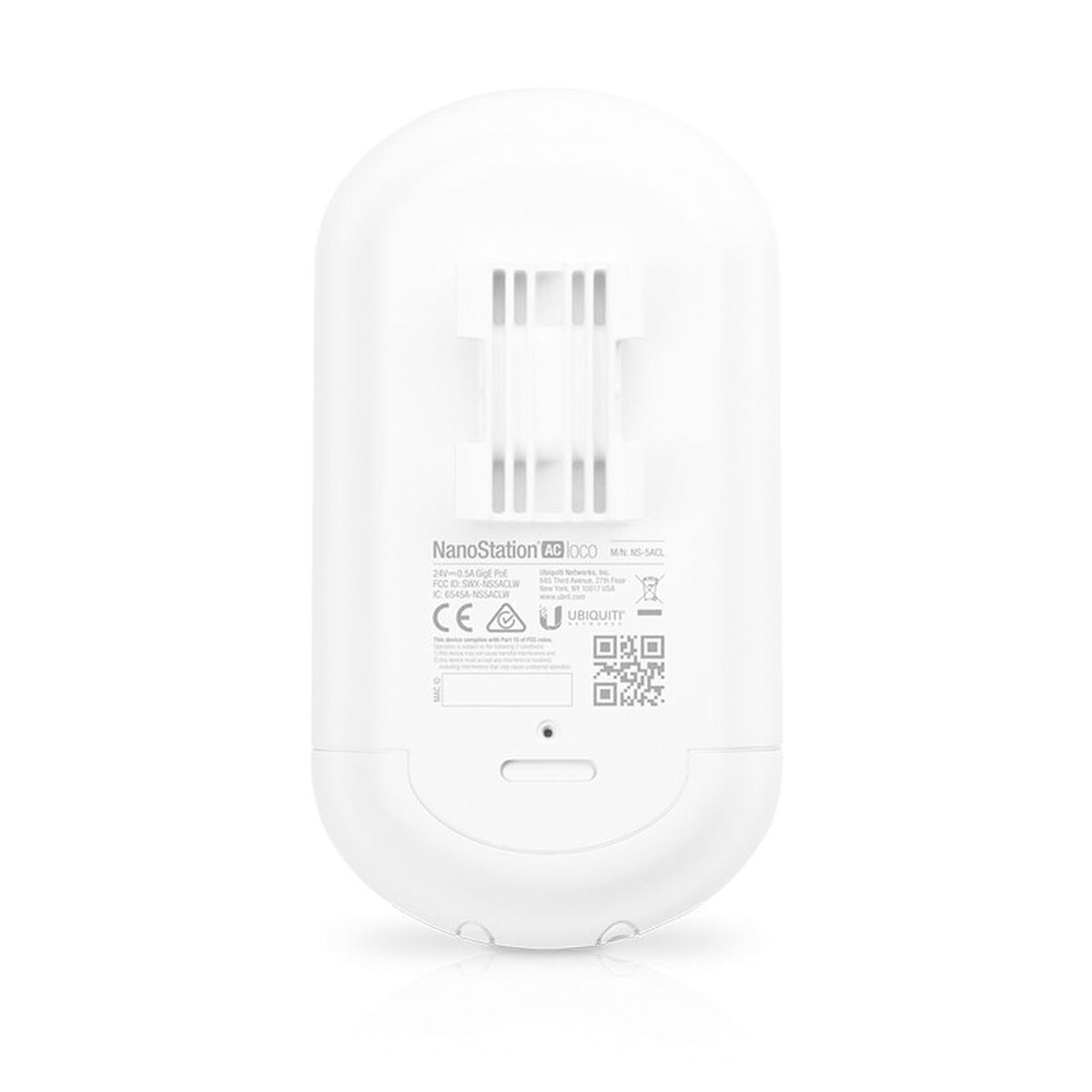

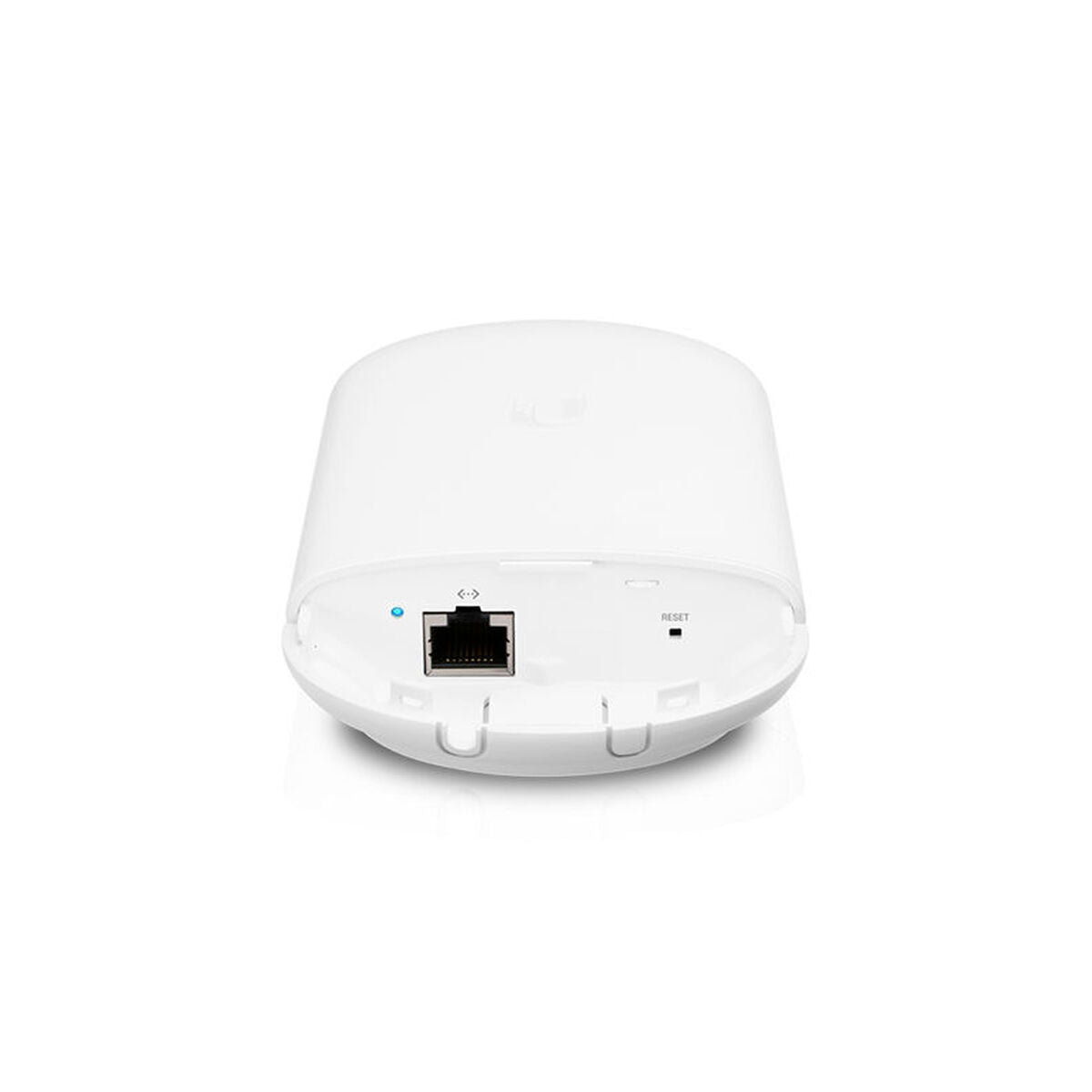

Access point UBIQUITI loco5AC-5 White

The NanoStation AC Loco 5 from UBIQUITI is a wireless access point device specifically designed to extend and improve Wi-Fi coverage in residential or professional environments requiring a stable, high-performance signal. This unit operates as a Wi-Fi repeater, enabling wireless connection extension with a maximum speed of up to 1 Gbps, ensuring smooth data transmission for medium to high demands, including streaming and video calls. Its compact white design and durable plastic construction make it lightweight and easy to install indoors or outdoors, while the 64 MB internal memory ensures efficient traffic and connection management. It operates with a 24 V, 0.3 A power supply, compatible with PoE systems commonly used in professional setups, allowing integration into existing infrastructures without extra outlets. The NanoStation AC Loco 5 also stands out for its versatility as a wireless access point, allowing not only signal repeating but also reliable creation of a new wireless network in areas with limited coverage. Its advanced configuration and compatibility with current Wi-Fi standards facilitate signal optimization and network control, key aspects to maintain stability and performance in dynamic environments. Overall, this device offers an accessible and effective technical solution for users needing to expand wireless networks with a robust and easy-to-deploy unit. The NanoStation AC Loco 5 from UBIQUITI is therefore a balanced choice for those seeking to improve connectivity through a reliable access point and repeater.

• Product with plug: Yes
• Type:
  • Access point
  • Wi-Fi repeater
• Type of plug: Plug EU
• Power supply: Electric Network
• Connections:
  • RJ45 x 1
  • RJ45
  • PoE x 1
• Connectivity:
  • Wi-Fi
  • Ethernet LAN
• Speed: 1 Gbps
• Colour: White
• Material: Plastic
• Internal Memory: 64 MB
• Voltage: 24 V
• Nominal current: 0,3 A
• Includes: Self-assembly Kit
• Characteristics: LED in operation indicator
• Frequency:
  • 5 GHz
  • 560 Hz
• Energy consumption: 7 kWh

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE). Sleek Industrial Design The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry. Improved Surge Protection The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events. Now with airOS®8 airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

• 5 GHz: Y
• Maximum data transfer rate: 450 Mbit/s
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Frequency band: 5 GHz
• MIMO: Y
• Modulation: 16-QAM,64-QAM,256-QAM,BPSK,QPSK
• Quality of Service (QoS) support: Y
• Maximum outdoor range: 10000 m
• Security algorithms: WPA2
• Web-based management: Y
• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet (PoE): Y
• Input voltage: 24 V
• Input current: 0.3 A
• Power consumption (max): 7 W
• Placement: Pole
• Product colour: White
• Housing material: Plastic
• Reset button: Y
• LED indicators: Power
• Certification: CE, FCC, IC
• Antenna type: Internal
• Antenna features: Integrated antenna
• Antenna gain level (max): 13 dBi
• Polarization: Dual polarization
• Built-in processor: Y
• Processor model: Qualcomm Atheros
• Processor frequency: 560 MHz
• Processor architecture: MIPS 74Kc
• Internal memory: 64 MB
• Operating system installed: AirOS
• Operating relative humidity (H-H): 5 - 95%
• Operating temperature (T-T): -40 - 70 °C

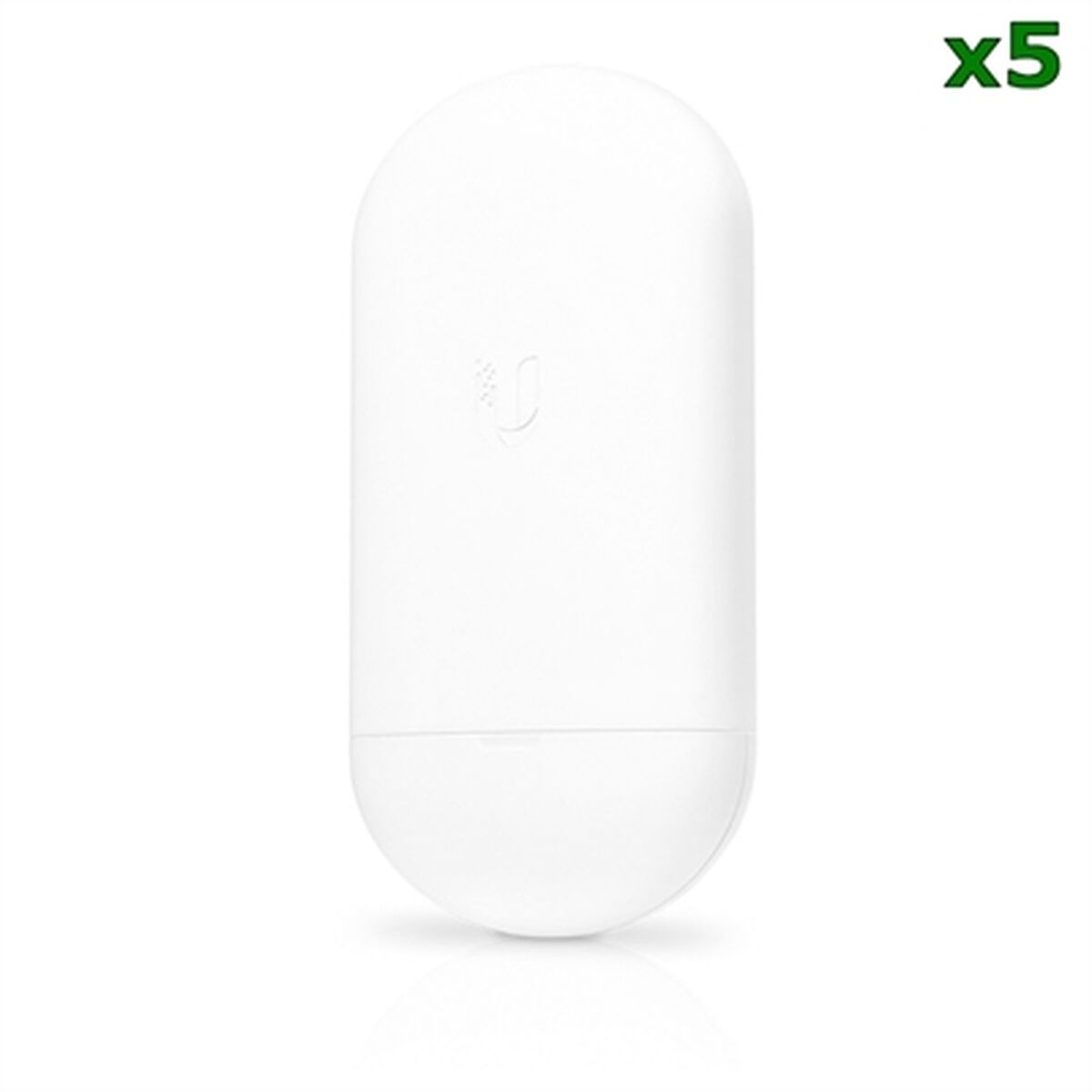

• Number of products included: 5 pc(s)
• Mounting kit: Y
