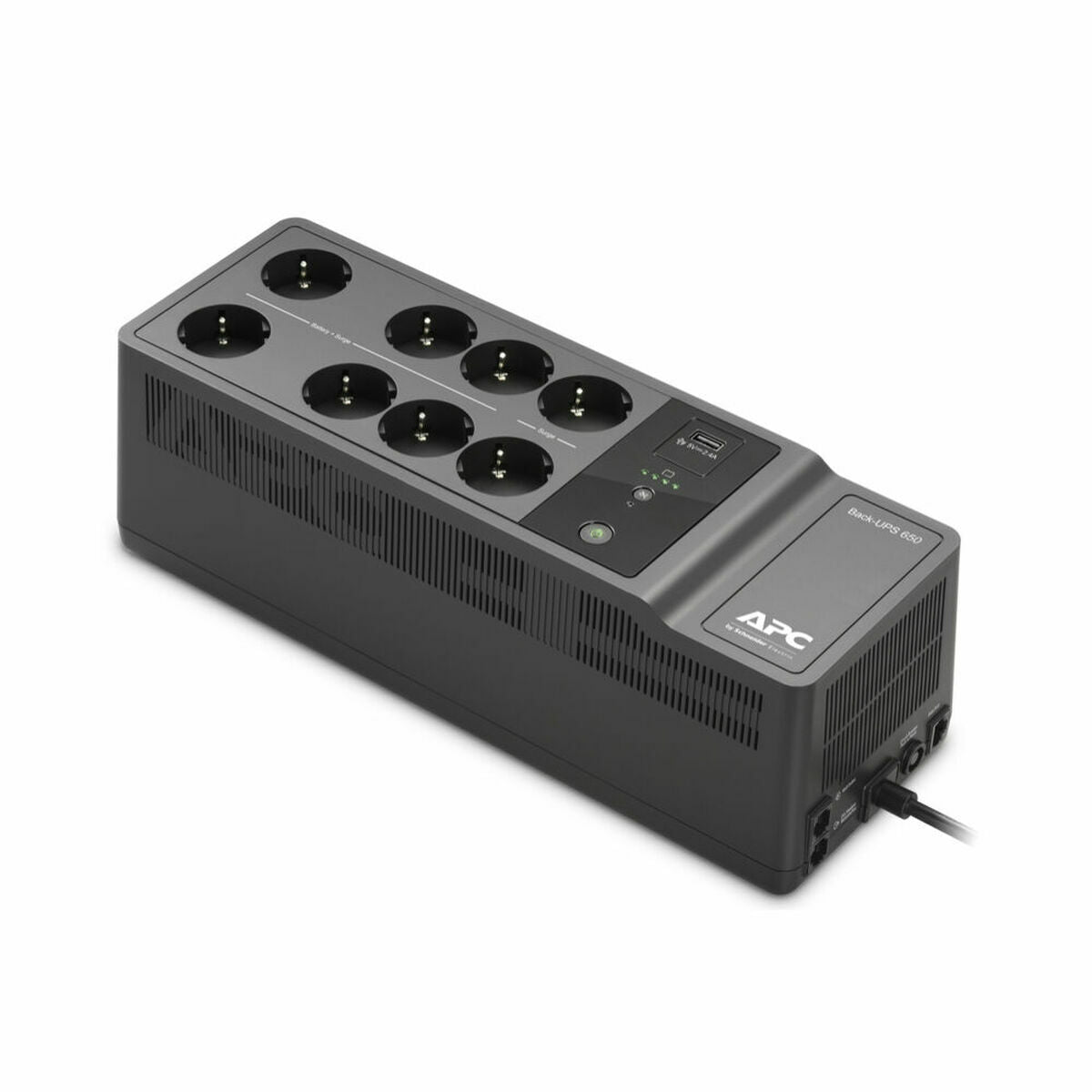

Uninterruptible Power Supply System Interactive UPS APC BE650G2-SP 650 W

The APC BE650G2-SP Interactive UPS is a compact and reliable solution to protect electronic devices against power outages and voltage fluctuations. This uninterruptible power supply offers a maximum power of 650 VA (0.65 kVA) and a real output power of 400 W, ideal for safeguarding personal computers, peripherals, and office equipment. It features a standby (offline) UPS topology, ensuring fast switching to battery power during electrical failures to maintain operational continuity. The output waveform is stepped approximation, suitable for powering devices with modern switched-mode power supplies. Its VRLA (sealed lead-acid) battery has a capacity of 9 Ah at 12 V, with an approximate recharge time of 6 hours, providing enough autonomy for orderly shutdowns or short power interruptions. The BE650G2-SP operates within an input voltage range of 180 to 266 V and delivers an output voltage between 220 and 230 V at a frequency of 47 to 63 Hz, adapting to common voltage fluctuations in commercial and home environments. It also includes overload protection and a maximum current limit of 6 amperes, ensuring safe use. Its energy efficiency is around 80% with a low noise level of 45 dB. The compact dimensions of 130 x 365 x 120 mm and weight of 4 kg facilitate integration into small spaces, while the black color and compact form factor support discreet installation. Additional features include USB 2.0 connectivity for monitoring and managing the unit via proprietary software, as well as audible and visual alarms to alert about operational status and overload. This model holds RoHS, CE, and EAC certifications, ensuring regulatory compliance and quality and safety standards. Its operating temperature range is 0 to 40 °C, with relative humidity up to 90%, indicating environmental robustness for typical office and home use. Overall, the APC BE650G2-SP is an electrical protection device designed for users needing to safeguard their equipment with a compact, efficient, and easy-to-manage UPS, suitable for small offices and home setups requiring power continuity and stability.

• Type: Uninterruptible Power Supply System Interactive UPS
• Product with plug: Yes
• Type of plug:
  • Plug EU
  • Type C
• Power supply: Electric Network
• Power:
  • 650 VA
  • 650 W
• Colour: Black
• Characteristics:
  • Alarm
  • Cold start
  • Overload indicator
  • LED in operation indicator
• Connections:
  • USB
  • USB 2.0
  • RJ45
  • USB-A
  • AC x 8
• Functions: Hot Swap
• Capacity: 4 Kg
• Voltage: 220 V
• Approx. weight: 4 Kg
• Technology: VRLA
• Certificate: RoHS
• Noise level: 45 dB
• Approx. charging time: 16 hours
• Width: 13 cm
• Form factor: Compact
• Accuracy (relative humidity): 0 % - 90 %
• Output voltage: 230 V

Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. Audible alarms Provides notification of changing utility power and UPS power conditions Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Battery charging indicator Lets you know when your battery is charging and when it is fully charged. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Building Wiring Fault Indicator This LED informs users of potentially dangerous wiring problems in the wall circuit. Cold-start capable Provides temporary battery power when the utility power is out. Dataline surge protection Provides protection of connected equipment from power surges on the data lines. Disconnected battery notification Warns when a battery is not available to provide backup power. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Simple battery replacement Increases UPS availability by allowing quick, easy battery replacement. Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles. USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port. User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

• UPS topology: Standby (Offline)
• Output power capacity: 650 VA
• Output power: 400 W
• Waveform: Sine
• Input operation voltage (min): 180 V
• Input operation voltage (max): 266 V
• Input frequency: 47/63 Hz
• Output operation voltage (min): 220 V
• Output operation voltage (max): 230 V
• Output frequency: 47/63 Hz
• Maximum current: 6 A
• Surge energy rating: 310 J
• Efficiency: 80%
• Noise level: 45 dB
• Surge protection: Y
• Surge protection features: Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
• Audible alarm(s): Y
• Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
• AC outlets quantity: 8 AC outlet(s)
• Number of type F outputs: 8
• USB port: Y
• USB 2.0 ports quantity: 1
• USB port type: USB Type-A
• Modem (RJ-11) ports: 2
• Ethernet LAN (RJ-45) ports: 1
• Cabling technology: 10/100Base-T
• Battery technology: Sealed Lead Acid (VRLA)
• Battery capacity: 75 Ah
• Battery life (max): 5 year(s)
• Battery recharge time: 16 h
• Hot-swap battery: Y
• Automatic battery test: Y
• Cold start: Y
• Form factor: Compact
• Product colour: Black
• Cable length: 1.83 m
• LED indicators: Y
• Certification: CE, EAC REACH
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -15 - 45 °C
• Operating relative humidity (H-H): 0 - 90%
• Storage relative humidity (H-H): 0 - 95%
• Non-operating altitude: 0 - 4500 m
• Sustainability certificates: RoHS
• Width: 130 mm
• Depth: 365 mm
• Height: 120 mm
• Weight: 4 kg
• Manual: Y
• Package width: 186 mm
• Package depth: 441 mm
• Package height: 190 mm
• Package weight: 4.5 kg
• Master (outer) case gross weight: 14.5 kg
