Switch Mikrotik CSS610-1Gi-7R-2S+OUT

The CSS610-1Gi-7R-2S+OUT from Mikrotik is a high-performance switch designed specifically for network environments requiring flexibility and robustness, especially for deploying home ISP solutions via fiber and Ethernet connections. This switch is part of the netPower Lite 7R series, which focuses on integrating fiber optic networks with the versatility of traditional Ethernet. It features 8 Ethernet 10/100/1000 ports, of which 7 provide reverse PoE to power connected devices and receive power from them, and 1 port with passive PoE output to supply power to other equipment, along with 2 SFP+ ports offering high-speed fiber connectivity. Its switching capacity reaches 56 Gbps with a forwarding rate of 41.7 Mpps, ensuring smooth performance without bottlenecks in demanding networks. Power input is flexible, supporting a 12-57 V DC range through three options—DC connector, two-pin terminal, and PoE-IN—adapting to various installation conditions, with a maximum consumption of 29 W and passive operation that avoids noisy or mechanical fans. Additionally, it has a robust exterior coating resistant to harsh environments, from damp attics to poles or elevator shafts, facilitating indoor and outdoor installation. It measures 304 x 212 x 71 mm, is white, and holds international certifications such as CE, EAC, and ROHS, ensuring quality and safety. Its proprietary SwitchOS operating system integrates advanced management and monitoring features, and its 64 KB FLASH storage offers stability and reliable response. This model combines a design focused on energy efficiency, durability, and adaptability in telecom projects, especially where fiber internet distribution to individual homes is a priority. In summary, the Mikrotik CSS610-1Gi-7R-2S+OUT is a technical solution delivering power, versatility, and reliability for enterprise and ISP network deployment and management with a focus on fiber and PoE.

• Product with plug: Yes
• Type of plug: Plug EU
• Type: Switch
• Power supply: Electric Network
• Colour: White
• Voltage: 220 V
• Ports: 2
• Approx. weight: 250 g
• Connections:
  • Ethernet LAN
  • rj45 x 8
• Characteristics: LED in operation indicator
• Weight: 250 g

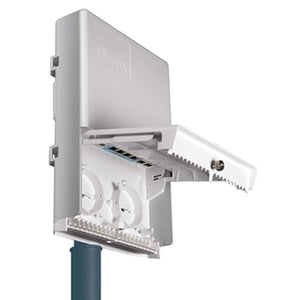

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments. With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.

• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP+ modules quantity: 2
• Power connector: DC-in jack
• 10G support: Y
• Product colour: White
• LED indicators: Y
• DC input voltage: 12 - 57 V
• Power consumption (max): 29 W
• Power over Ethernet (PoE): Y
• Operating temperature (T-T): -40 - 70 °C
• Width: 304 mm
• Depth: 212 mm
• Height: 71 mm
