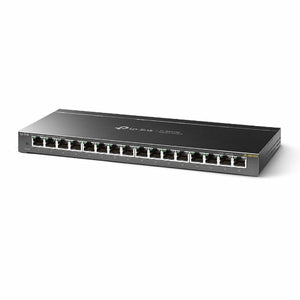

Desktop Switch TP-Link TL-SG116E

The TP-Link TL-SG116E desktop switch is a network device designed to provide reliable and efficient connectivity in home and small office environments. This unmanaged switch features 16 Gigabit Ethernet RJ-45 ports (10/100/1000 Mbps), allowing fast and stable data transfers, ideal for connecting multiple devices simultaneously, such as computers, printers, and IP cameras. Its black metal casing ensures greater durability and facilitates mounting, either on a desktop or wall, adapting easily to different spaces. The TL-SG116E supports full duplex technology to optimize bidirectional data flow and reduce network congestion, while its 32 Gbit/s switching capacity and MAC address table with 8,000 entries guarantee efficient traffic management. It also complies with key network standards such as IEEE 802.1Q for VLAN tagging, IEEE 802.1p for QoS, and Ethernet standards IEEE 802.3, 802.3u, and 802.3ab, ensuring compatibility and transmission quality. It operates with a 9V DC input voltage and low power consumption of approximately 9.3 W, promoting operational efficiency. This model also includes basic smart management features to optimize performance without complicating setup, making it ideal for users who need a stable and simple device to quickly expand or improve their local network with reliability. In summary, the TP-Link TL-SG116E is a reliable and versatile switch designed to enhance network infrastructure with Gigabit connectivity and easy installation.

• Speed: 32 Gbps
• Characteristics:
  • Light indicator
  • Wall mounting
  • Installation guide included
  • Plug and play
  • LED in operation indicator
• Power supply:
  • Electric Network
  • CA cable
  • Iincluded
  • DC
• Energy consumption: 9,3 W
• Approx. dimensions: 28,6 x 11,17 x 2,54 cm
• Colour: Black
• Product with plug: Yes
• Type of plug: Plug EU
• Material: Metal
• AC input voltage: 12 V
• Connectivity: Wi-Fi
• Voltage:
  • 9 V
  • 12 V
  • 220 V
• Frequency: 50 Hz
• Ports: 16
• Connections:
  • RJ45
  • Ethernet LAN
• Amperage:
  • 1 A
  • 0,6 A
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Safety: IGMP

What This Product Does The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments. Easy to Use Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance. Durable Metal Casing The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches. Additional Software Features TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. Go Green with Your Ethernet TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

• Switch type: Unmanaged
• Quality of Service (QoS) support: Y
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 16
• Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
• Cable types supported: Cat3,Cat4,Cat5,Cat5e,Cat6
• Port mirroring: Y
• Full duplex: Y
• Flow control support: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• Cable length detection: Y
• VLAN support: Y
• Virtual LAN features: Tagged VLAN,Protocol-based VLAN
• Number of VLANs: 32
• MAC address table: 8000 entries
• Switching capacity: 32 Gbit/s
• Forwarding rate: 23.81 Mpps
• Store-and-forward: Y
• Number of queues: 4
• Jumbo frames support: Y
• Jumbo frames: 9000
• Packet buffer memory: 4.1 MB
• IGMP snooping: Y
• Loop protection: Y
• Rack mounting: N
• Product colour: Black
• Housing material: Metal
• LED indicators: Y
• Wall mountable: Y
• Certification: FCC, CE, RoHS
• Plug and Play: Y
• Power supply included: Y
• AC input voltage: 220 V
• AC input frequency: 50 Hz
• DC input voltage: 9 V
• Input current: 0.6 A
• Power consumption (max): 9.3 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 31.68 BTU/h
• Width: 286 mm
• Depth: 111.7 mm
• Height: 25.4 mm
• Cables included: AC
• Quick start guide: Y
• AC adapter included: Y
• Rubber feet: Y
• Package width: 412 mm
• Package depth: 170 mm
• Package height: 70 mm
