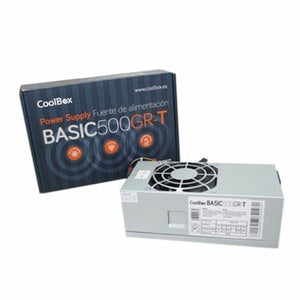

Power supply CoolBox COO-FA500TGR 500W 500 W

The CoolBox BASIC500GR-T power supply is an essential component designed to provide a reliable and efficient solution for computer systems in a compact TFX form factor, suited for setups requiring limited space without sacrificing performance. This unit delivers a continuous power output of 500 W, ensuring stability and sufficient capacity to power various components, from motherboards compatible with the EPS1U (2.1) standard to Intel processors requiring TFX12V v2.3 specifications. The design includes an 8 cm thermoregulated fan that adjusts its speed based on temperature to maintain quiet and optimal operation, while protecting the system from overloads and faults via integrated OCP, OVP, and SCP protection circuits (overcurrent, overvoltage, and short circuit protection). Its TFX form factor with compact dimensions of 85 x 65 x 175 mm and an approximate weight of 750 grams allows easy installation in compatible cases, especially in systems with limited space. It also features standard connectors, including a 24 PIN connector and a Molex 4 PIN connector, sufficient to power main modules and peripherals with stable current supply. It operates effectively within a temperature range of 0ºC to 50ºC and supports relative humidity from 10% to 85%, providing versatility for various environmental conditions. Its reliability is backed by a 100,000-hour MTBF (mean time between failures), ensuring durability and consistent long-term performance. The grey color also helps it blend discreetly inside any system. Overall, the CoolBox BASIC500GR-T power supply combines suitable power for mid-range configurations with a compact size, efficient thermal management, and advanced safety features, making it a practical and functional choice for users needing a reliable power supply without compromising space or quality in their computer systems.

• Type:
  • TFX
  • Power supply
• Power: 500 W
• Ventilator: Ø 8 cm
• Temperature: 0ºC-50ºC
• Approx. dimensions: 17,5 x 6,5 x 8,5 cm
• Voltage: 230 V
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • 24 PIN x 1
  • Molex 4 PIN x 1
• Power supply: Electric Network
• Form factor:
  • TFX
  • ATX
• Colour: Grey
• Frequency: 50 Hz
• Connectors: Diskette unit
• Includes: Instruction manual
• Recommended use: PC
• Approx. diameter: Ø 80 cm
• Amperage:
  • 2,5 A
  • 26 A
• AC input voltage: 230 V

CoolBox BASIC500GR-T. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: TFX, Mean time between failures (MTBF): 100000 h. Product colour: Grey, Cooling type: Active, Fan diameter: 8 cm. Width: 85 mm, Depth: 175 mm, Height: 65 mm

• Total power: 500 W
• AC input voltage: 230 V
• AC input frequency: 50 Hz
• Input current: 2.5 A
• Max output current (+3.3V): 22 A
• Max output current (+12V1): 26 A
• Max output current (+5V): 22 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2.5 A
• Power protection features: Over current, Over voltage, Short circuit
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 1
• Number of SATA power connectors: 3
• CPU P4 connector (4-pin): 1
• ATX power connector (20+4 pin): Y
• Floppy drive power connector: 1
• Floppy disk drive connector: Y
• Purpose: PC
• Power supply unit (PSU) form factor: TFX
• Mean time between failures (MTBF): 100000 h
• Product colour: Grey
• Cooling type: Active
• Fan diameter: 8 cm
• Fan location: Top
• Operating temperature (T-T): 0 - 50 °C
• Operating relative humidity (H-H): 10 - 85%
• Width: 85 mm
• Depth: 175 mm
• Height: 65 mm
• Weight: 750 g
• Manual: Y
