Uninterruptible Power Supply System Interactive UPS Salicru SPS 16 ATS 3600 W

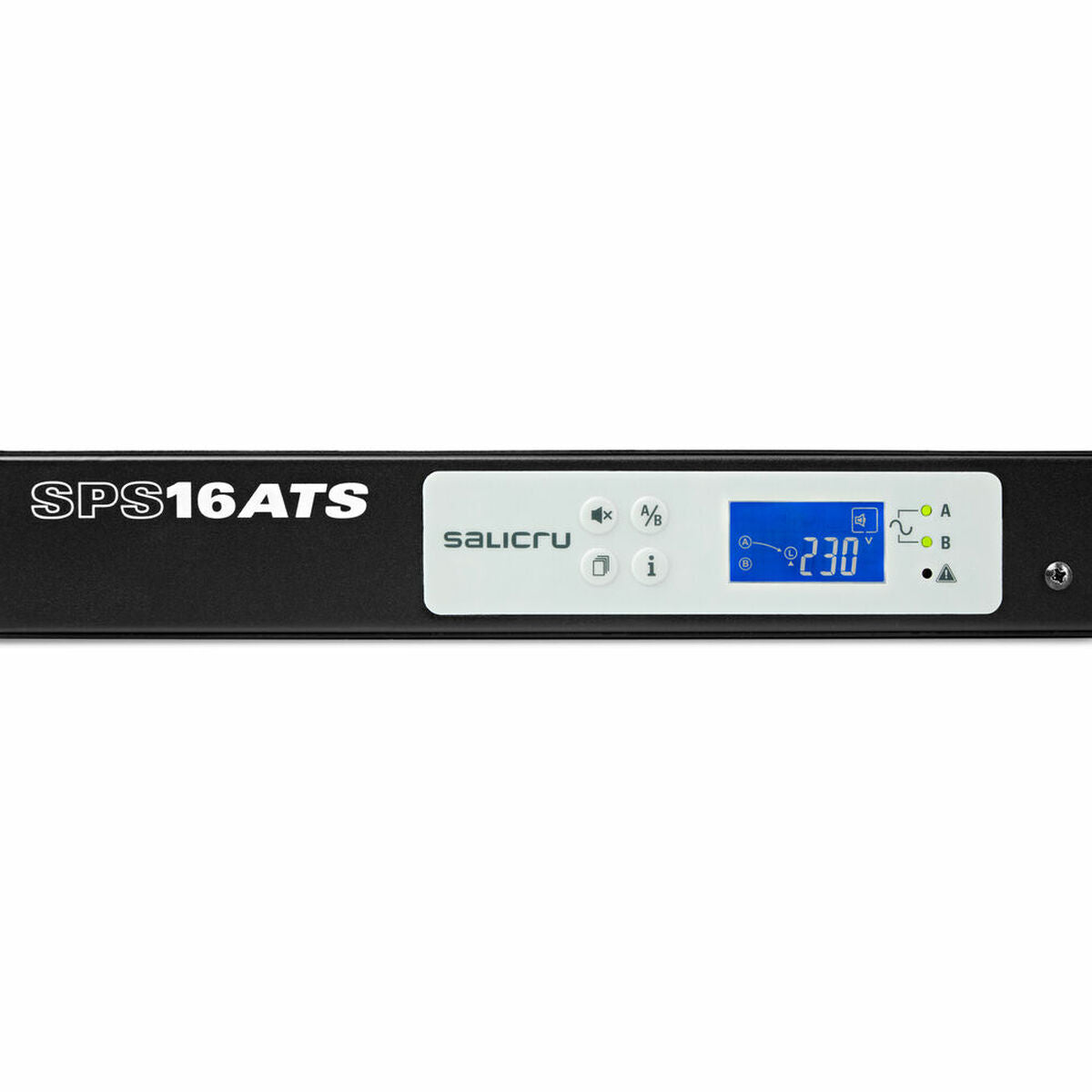

The Salicru SPS 16 ATS is an interactive UPS designed to ensure continuous power supply for critical equipment in professional and corporate environments, integrating advanced technology for high reliability and constant monitoring. It features an LCD display and LED indicators that provide clear, real-time information on system status, operating mode, and key electrical values, enabling detailed user control. Its architecture allows for automatic or manual switching between two single-phase AC power sources, ensuring smooth and stable transitions to protect sensitive loads; operational efficiency is notable, reaching up to 99%. The device supports an input voltage range of 150 to 300 V and frequencies from 50 to 60 Hz, adapting to various network conditions and allowing parameter programming such as delays, overload thresholds, or line sensitivity via dedicated software. It offers extensive integration options with USB interface, RS-232, and volt-free contacts, plus remote management through SNMP platforms, making it ideal for IT infrastructures and data centers. With a tower form factor and compatibility with 1U rack mounting (438 x 275 x 44 mm), it allows flexible installation in different spaces. It provides 9 AC outputs (types C13 and C19 coupler) and 2 C20 inputs, suitable for connecting various professional devices, while its robust black and grey construction ensures durability and a discreet presence in any technical setting. The 4 kg weight makes handling easy without sacrificing structural strength. Thus, the Salicru SPS 16 ATS meets the highest standards of safety and reliability for protecting industrial and corporate electrical systems.

• Product with plug: Yes
• Type of plug: Plug EU
• Type:
  • Tower
  • Uninterruptible Power Supply System Interactive UPS
• Technology: LCD
• Power supply: Electric Network
• Colour: Black
• Chassis assembly: 1U
• Characteristics:
  • LCD Screen
  • LED indicator
• Connections:
  • USB
  • AC x 9
• Voltage:
  • 240 V
  • 300 V
  • 150 V
• Approx. weight: 4 Kg
• Frequency: 50 - 60 Hz
• Power: 3600 W
• Amperage: 16 A

Salicru's SPS ATS series is an automatic switch between two single-phase AC power lines which, starting from two sine-wave current power lines, supplies output voltage to the load(s). The switching can be automatic or manual. The LCD display and status LEDs continually report the status of the device, working mode and values of the main measurements. It has extensive communication possibilities through integrated USB, RS-232 and potential-free contact interfaces, or optional inclusion on an SNMP platform. In addition, by means of the parameter-setting software available, parameters such as delays, overload levels, voltage and frequency ranges, line sensitivity, potential-free contacts, etc., can be set.

• Input operation voltage (min): 150 V
• Input operation voltage (max): 300 V
• AC input frequency: 50 - 60 Hz
• Output operation voltage (min): 200 V
• Output operation voltage (max): 240 V
• Output current: 16 A
• Efficiency: 99%
• LED indicators: Y
• Form factor: Rackmount
• Rack capacity: 1U
• Product colour: Black, Grey
• Display: LCD
• Safety: IEC-60950-1
• Certification: EN-55022; EN-55024, ISO 9001 & ISO 14001
• AC inlet type: 2 x C20 coupler
• AC outlets quantity: 9 AC outlet(s)
• AC outlet types: C13 coupler, C19 coupler
• USB port: Y
• RS-232 ports: 2
• SmartSlot: Y
• Operating temperature (T-T): 0 - 40 °C
• Operating relative humidity (H-H): 0 - 95%
• Width: 438 mm
• Depth: 275 mm
• Height: 44 mm
• Weight: 4 kg
