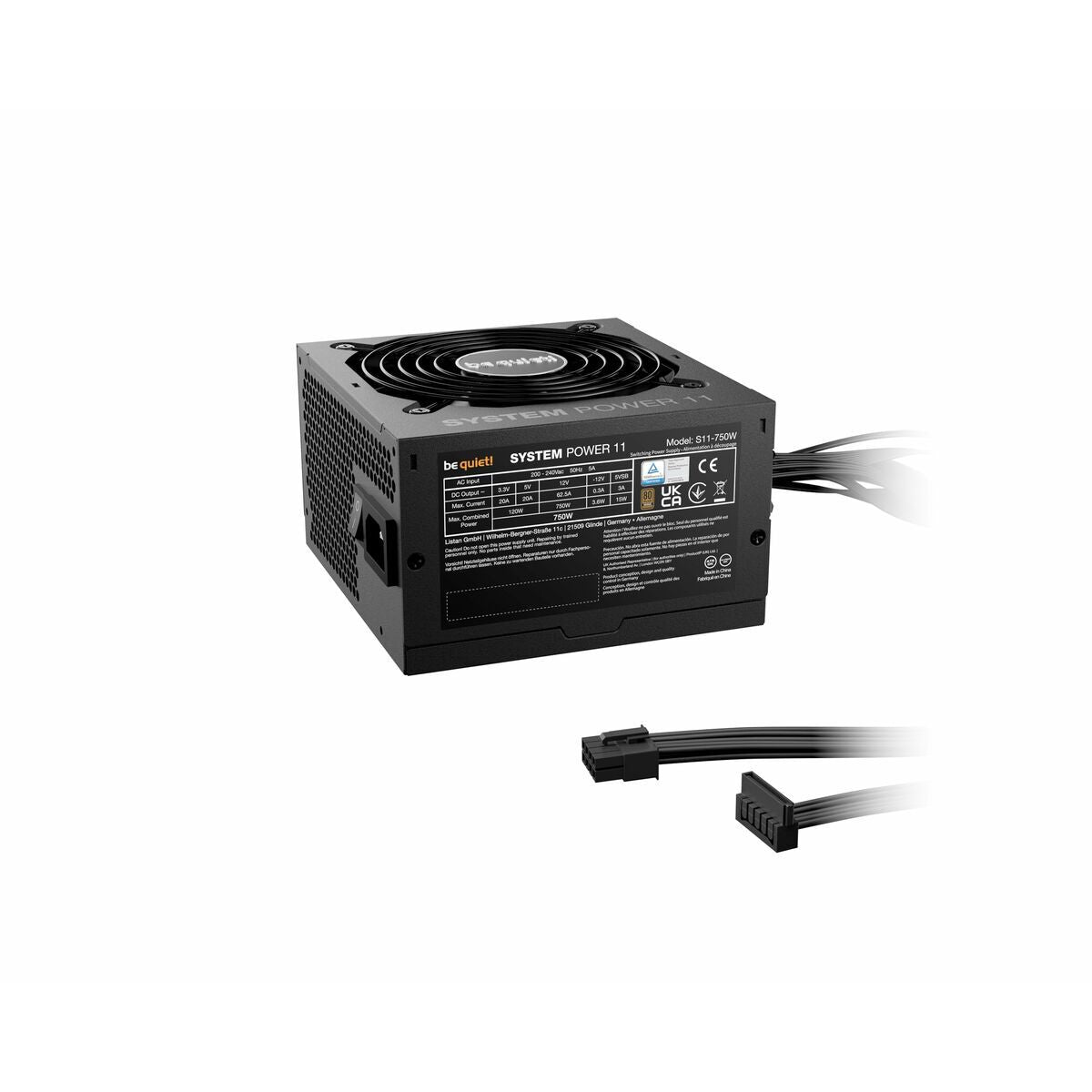

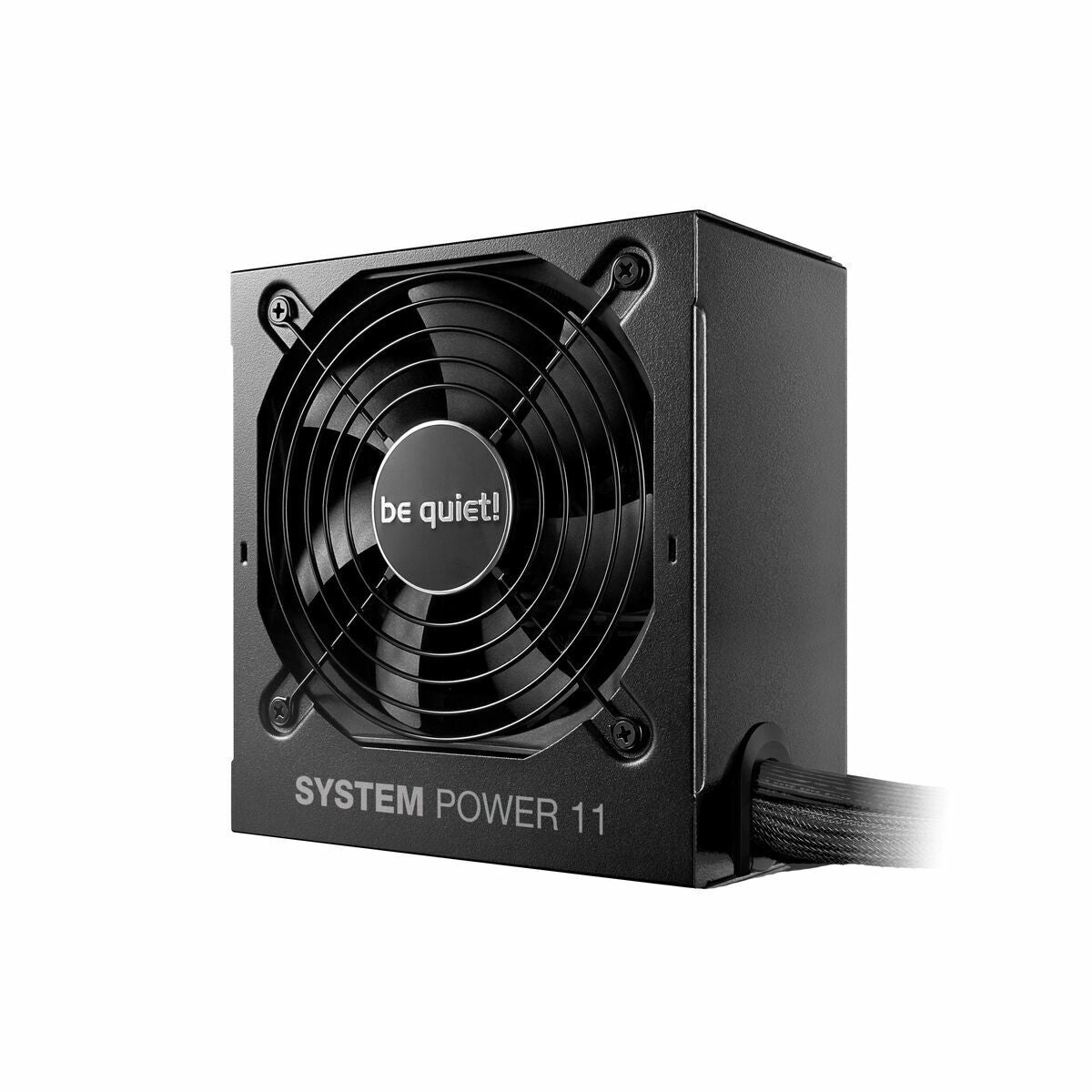

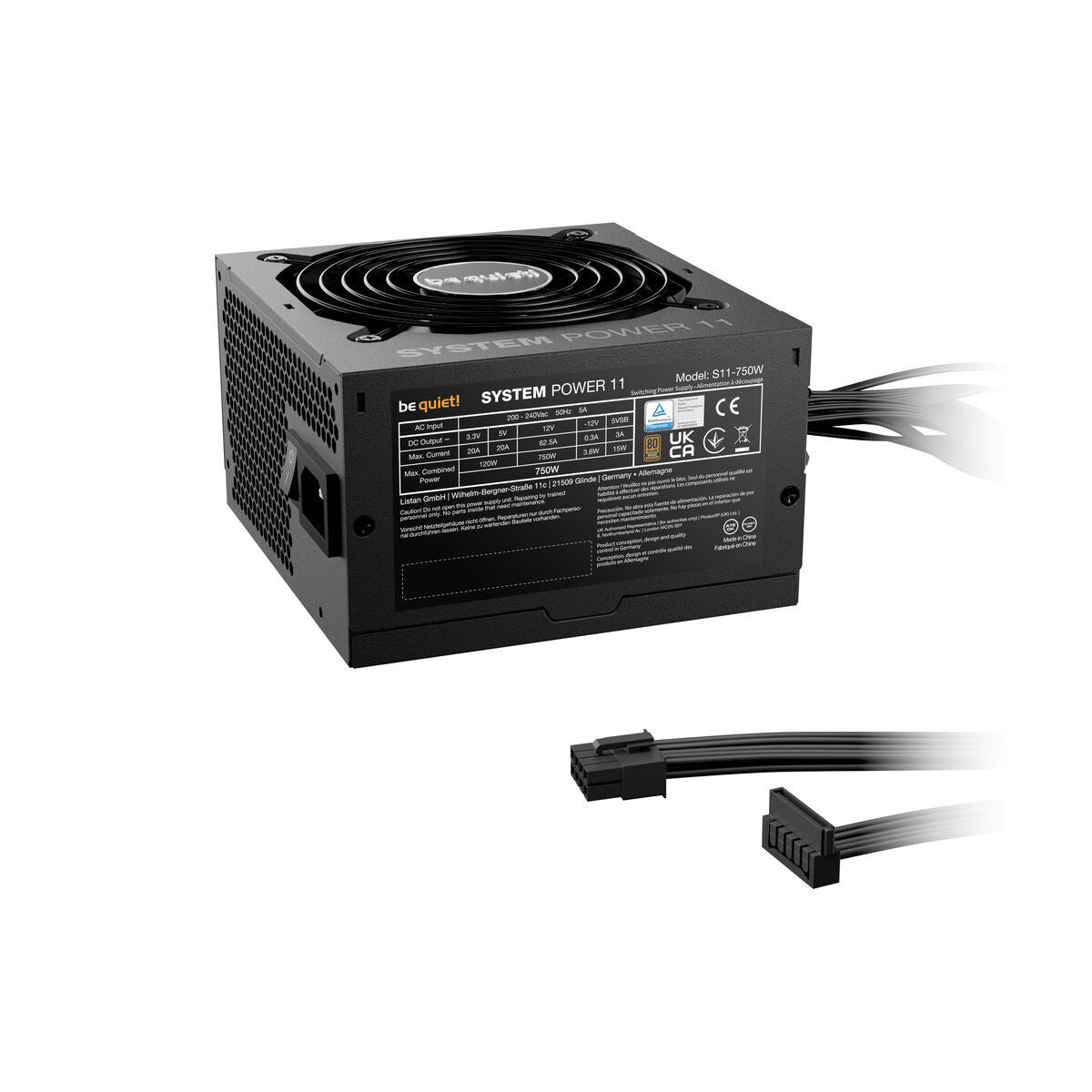

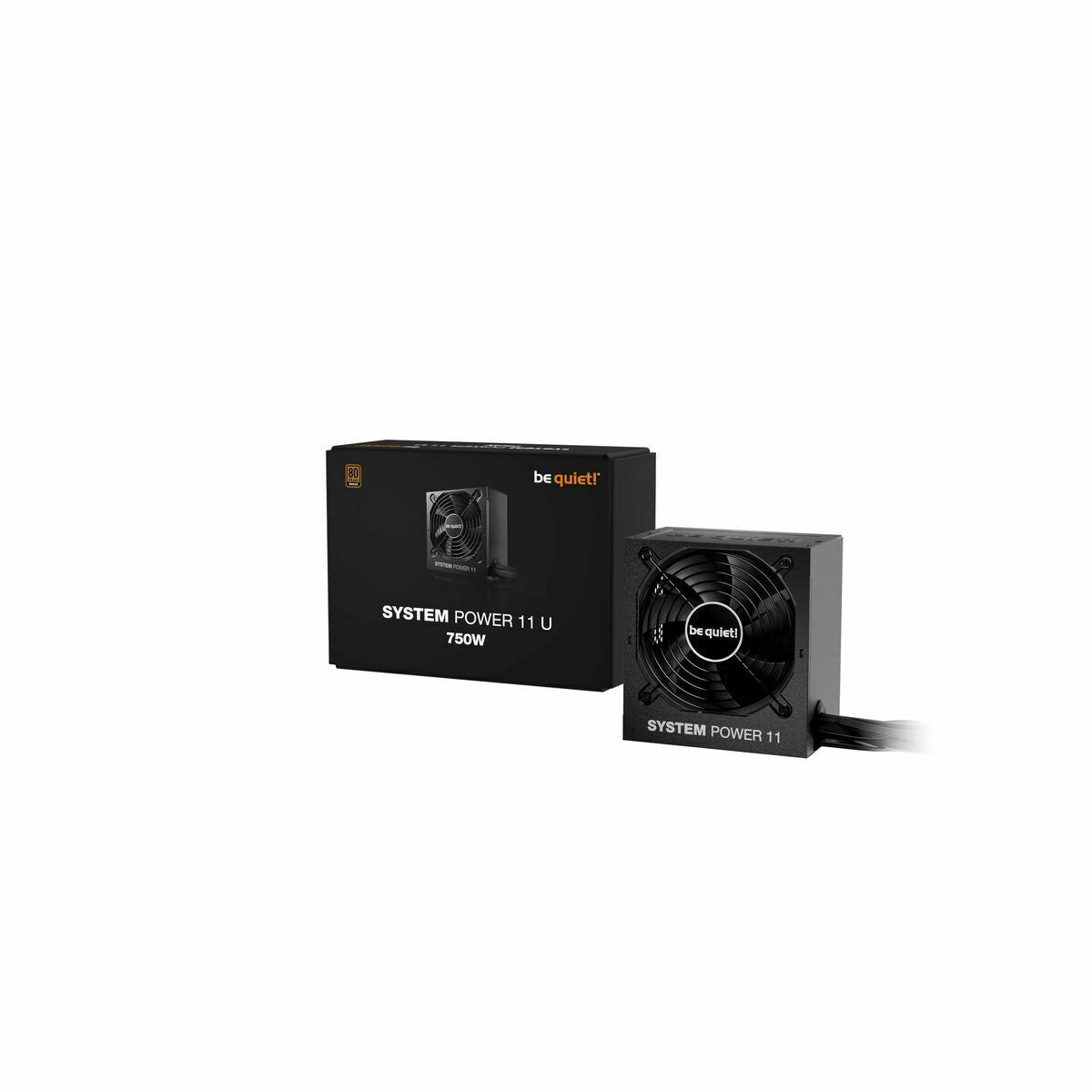

Power supply Be Quiet! BP012EU ATX 750 W 80 Plus Bronze

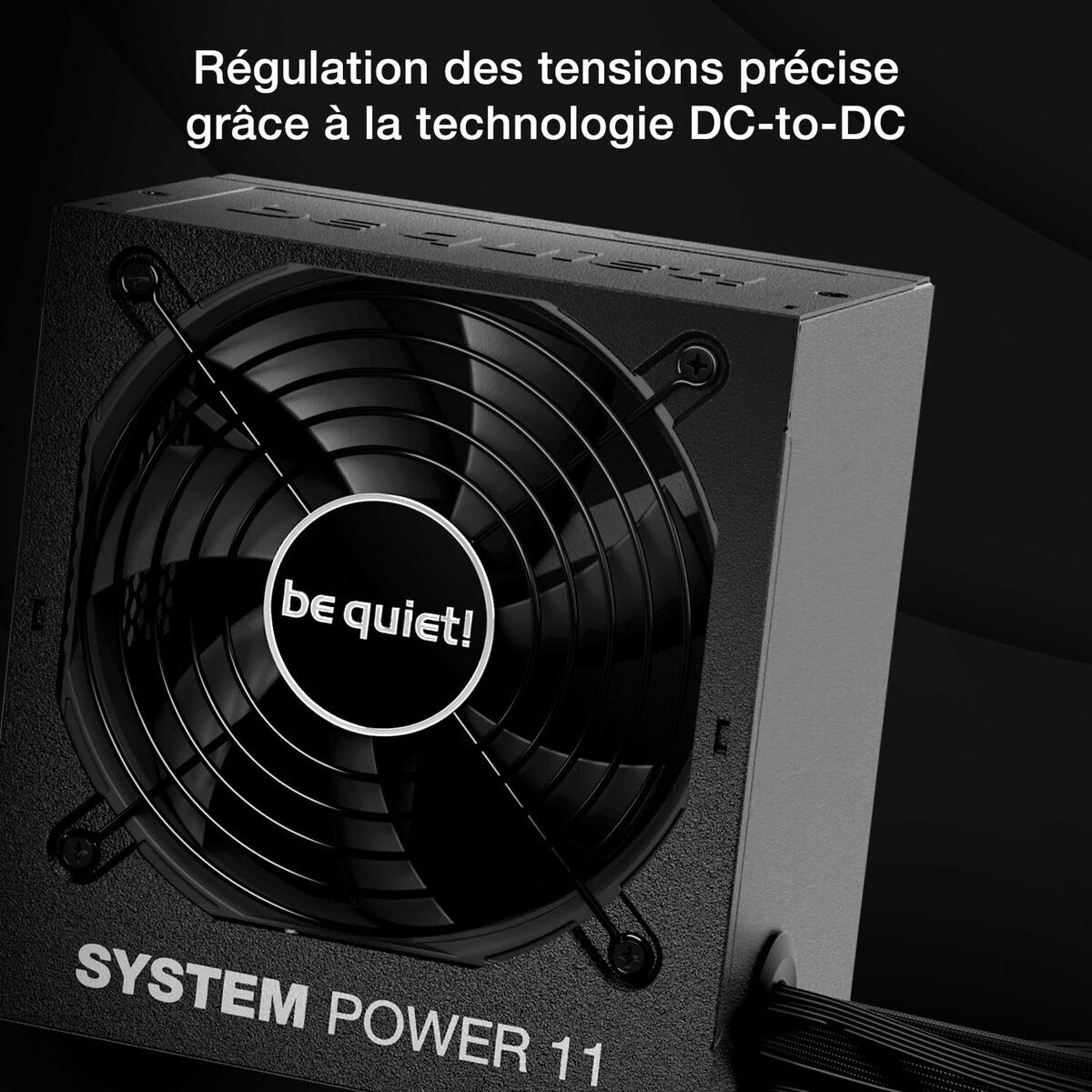

The Be Quiet! BP012EU power supply is a key component for computer systems requiring reliable and efficient power, offering a capacity of 750 W with an 80 Plus Bronze efficiency certification, ideal for ensuring stable supply and reducing energy consumption. Designed in a compact 86 x 150 x 140 mm format and weighing just 2.04 kg, this unit operates with an input voltage between 200 and 240 V, a fixed frequency of 50 Hz, and a maximum input current of 5 A, ensuring high-quality power conversion with a power factor above 0.98. Its advanced topology, based on a Double Forward + DC-DC system, provides voltage stability and interference reduction, protecting connected components. It features a Be Quiet! fan optimized for silence with a 4-pole motor and Rifle bearing, running at up to 2100 rpm with very low noise levels, ranging from 10.5 dB(A) at 10% and 20% load up to 33.4 dB(A) at 100%, contributing to effective cooling without disturbing noise. Its performance stands out with a single 12 V rail delivering 62.5 A, capable of handling demanding loads from modern graphics cards and processors, plus combined output capacities of 750 W for 12 V and 120 W for the 3.3 V and 5 V rails. For connectivity, it includes high-quality cables with P24 sleeving and a versatile configuration comprising 1 ATX connector (20+4 pins), 1 CPU P4+4 connector, 1 P8 connector, 3 PCI-E 6+2 pin connectors for graphics cards, 6 SATA connectors, and 1 PATA connector, with lengths between 55 and 81 cm to facilitate neat installation compatible with most current ATX cases and motherboards. To protect the system, it incorporates multiple safety features such as over-temperature protection (OTP), over-current protection (OCP), overpower protection (OPP), short circuit protection (SCP), over-voltage protection (OVP), under-voltage protection (UVP), and surge and inrush protection (SIP). Additionally, it complies with strict European and global safety and environmental certifications, including RoHS, CE, WEEE, and CB. This power supply is a robust and efficient solution that guarantees stability and safety for high-performance systems needing reliable, low-noise power with environmental certification.

• Type:
  • Power supply
  • Cabling
• Type of plug: Plug EU
• Product with plug: Yes
• Characteristics:
  • Protection against overheating
  • On/Off switch
  • Protection from short circuits
  • Protection from surges
  • Overvoltage protector
  • Surge protector
  • Low voltage protector
  • On/off interrupter
• Ventilator:
  • Ø 12 cm
  • x 1
  • 1
  • 12 cm
• Approx. dimensions: 15 x 14 x 8,6 cm
• Connections:
  • SATA x 6
  • 20+4 pin ATX
  • 4+4 pin
  • 8-pin
  • 4-pin x 1
  • 6+2 pin x 3
  • 24 PIN x 1
  • Molex 4 PIN x 1
• Certificate:
  • RoHS
  • CE
  • WEEE
  • CB
  • 80 Plus Bronze
• Speed: 2100 rpm
• Recommended use:
  • Desktop PC
  • PC
• Includes:
  • Nylon Cable Ties
  • Screws
• Height: 14 cm
• Approx. weight: 2,04 Kg
• Width:
  • 150 mm
  • 15 cm
• Colour: Black
• Form factor: ATX
• Frequency: 50 Hz
• Compatible: ATX
• Power: 750 W
• Voltage: 200-240 V
• Amperage: 4 A
