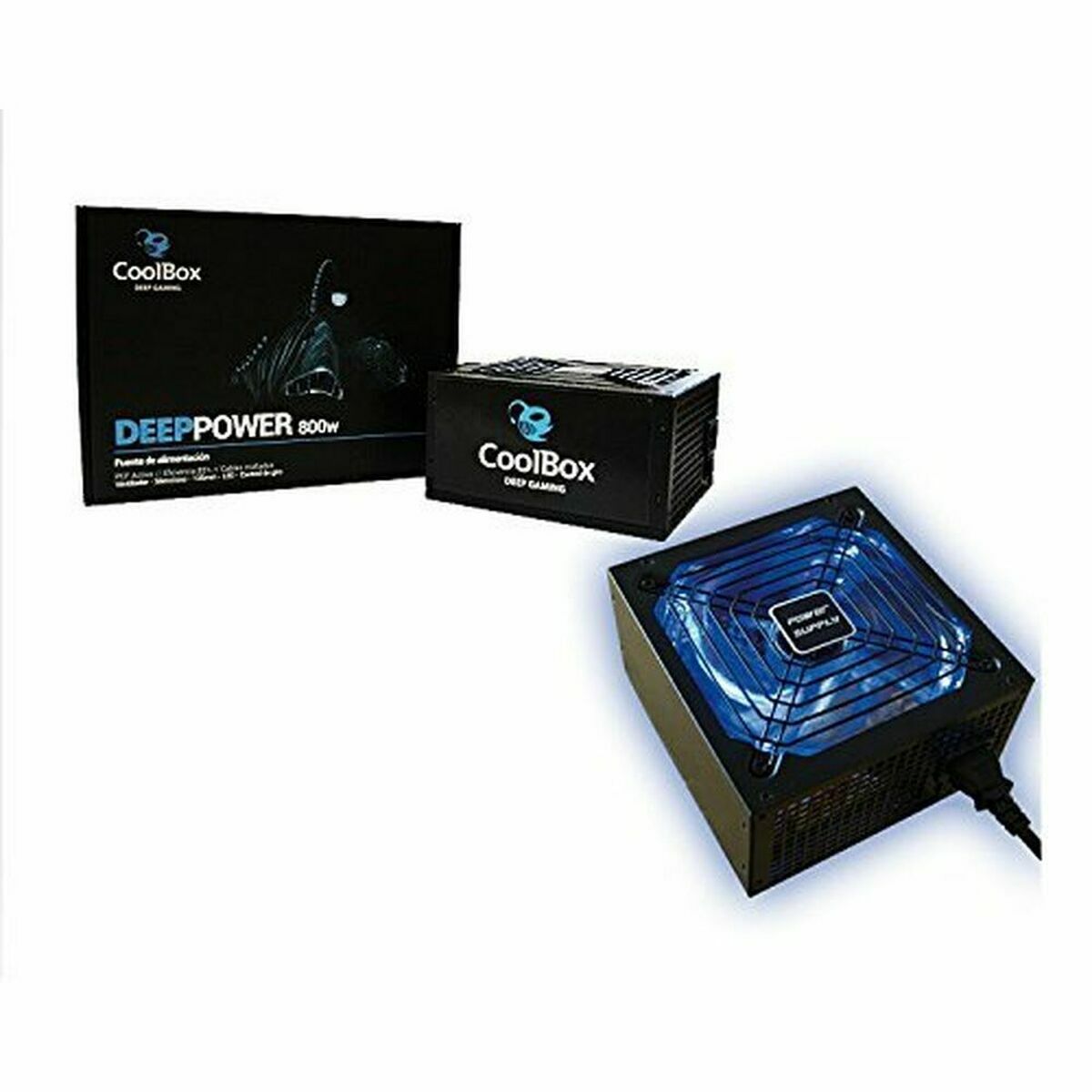

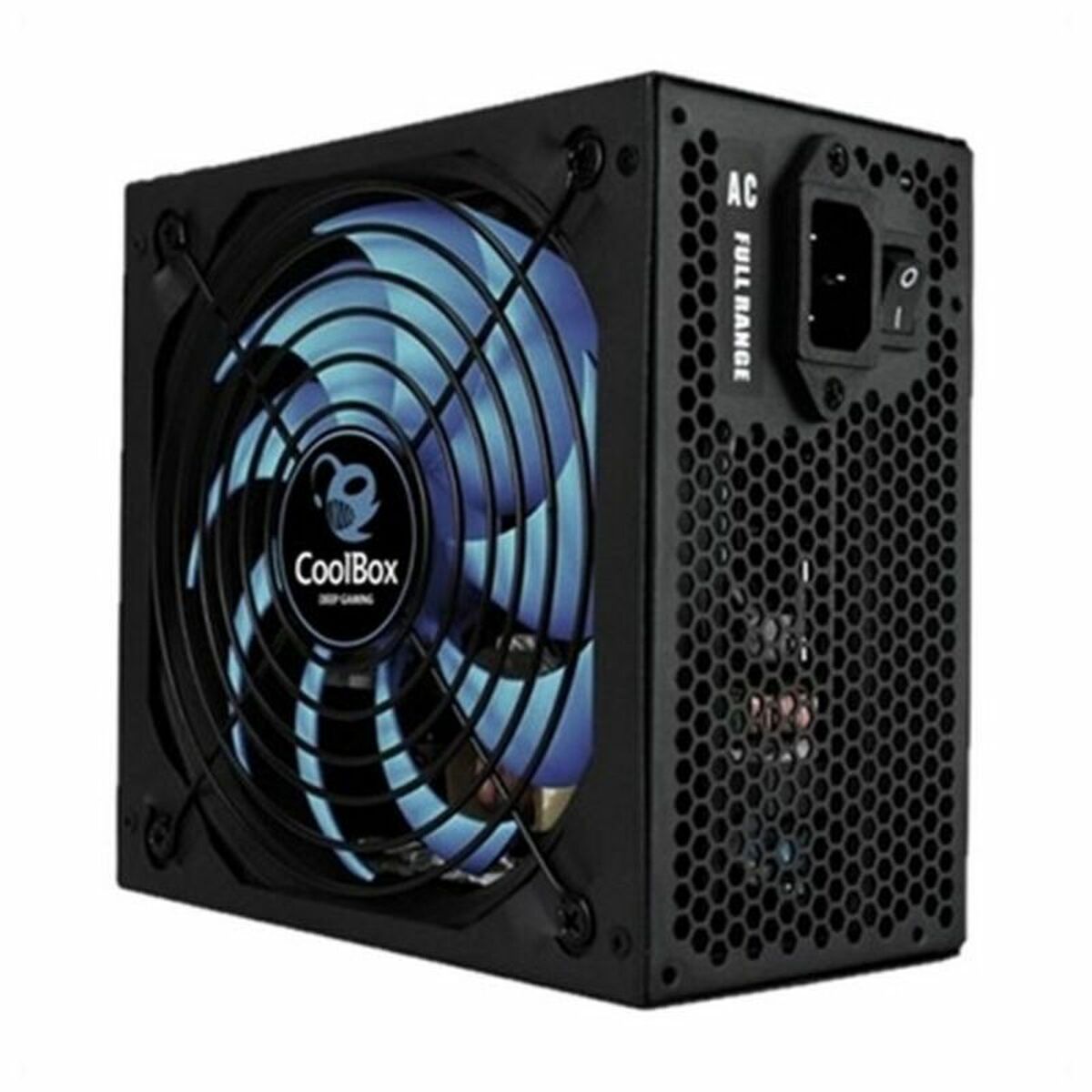

Power supply CoolBox DG-PWS800-85B ATX 800 W 80 Plus Bronze

The DeepPower BR-800 power supply from CoolBox is an essential component to maintain the stability and energy efficiency of any of your computer systems, specially designed for desktop PCs with an ATX form factor. With a total power of 800 W and 80 Plus Bronze certification, it guarantees energy efficiency ranging from 81% to 85%, optimizing power consumption and reducing energy loss, contributing to more environmentally friendly operation. This model features an ultra-quiet 140 mm fan, temperature-controlled to adjust its speed based on temperature and keep noise below 25 dBA, promoting a quiet working or gaming environment. The power supply uses active PFC technology to correct voltage spikes and ensure stable, continuous current delivery, effectively protecting internal components from electrical fluctuations. Regarding connections, it includes a complete set for various configurations, including six SATA connectors for storage devices and a 24-pin ATX cable (20+4) for the motherboard, with a non-modular cable type. It supports a wide input voltage range from 100 to 240 V and a frequency of 50 to 60 Hz, allowing use in different countries and electrical systems. Its black finish offers a sober look, and the power switch provides simple and safe control. The DeepPower BR-800 power supply is ideal for both PCs and servers requiring efficient, stable, and quiet power, offering a balanced combination of energy performance and hardware protection in gaming or professional environments.

This product represents a reliable and functional solution for users seeking an ATX power supply with good energy performance and sufficient connectivity to keep their system optimized.

• Colour: Black
• Form factor: ATX
• Ventilator: 1
• Voltage:
  • 100-240 V
  • 220 V
  • 100 - 240 V
• Certificate: 80 Plus Bronze
• Noise level: 25 dB
• Frequency: 50-60 Hz
• Power: 800 W
• Connections:
  • ATX 24 pin x 1
  • SATA x 6
  • MOLEX x 4
  • Molex FDD x 1
  • PCIe 8 pin x 2
  • 24 PIN x 1
  • PCI Express
  • PCI Express x 2
  • Molex 4-pin x 4
• Temperature: 0ºC-40ºC
• Approx. dimensions: 15,8 x 15 x 8,5 cm
• Type: Power supply
• Product with plug: Yes
• Type of plug: Plug EU
• Characteristics: On/off interrupter
• Year: 2018
• Power supply: CA cable
• Connectors: Diskette unit
• Approx. weight: 2 Kg
• Compatible: ATX
• Weight: 2,1 Kg
• Contains: User manual
• Connector: 4 + 4 pin
