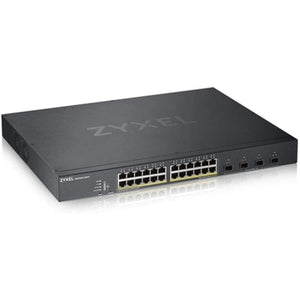

Switch ZyXEL XGS1930-28HP

The ZyXEL XGS1930-28HP-EU0101F switch is a robust, professional device designed for demanding network environments requiring high capacity and advanced connectivity. It features a total of 28 ports, including 24 RJ45 Gigabit Ethernet ports (100/1000 Mbps) with PoE support delivering a total power of 375 W, compliant with the 802.3at standard, allowing power supply to devices such as IP cameras, wireless access points, and VoIP phones without additional power sources. Additionally, it has 4 combined Gigabit SFP+ ports for fiber optic connections, enabling high-speed network infrastructure links and enhancing system flexibility and scalability. Its switching capacity reaches up to 128 Gbps, with a forwarding rate of 95.2 Mbps, ensuring efficient and fast data transfer to meet modern traffic demands. It integrates a 1.5 MB packet buffer and a MAC address table supporting 16,000 entries, improving performance in complex networks with multiple devices. Regarding memory, it includes 32 MB flash and 512 MB RAM, providing stability and speed in data processing. This switch is rack-mountable, measuring 441 x 330 x 44 mm and weighing 4.6 kg, with a sober black finish ideal for server cabinets. Concerning power and environmental conditions, it operates within a temperature range of 0ºC to 50ºC and relative humidity between 10% and 90%, with a thermal dissipation of 1,606.07 BTU/hour and a low noise level of 28.5 dBA at 25ºC. Its power supply supports inputs from 100 to 240 V AC, operating at both 50 Hz and 60 Hz. Included accessories are a power cable and a rack mounting kit, facilitating installation in data centers and corporate environments. With a mean time between failures (MTBF) of over 1.3 million hours, this switch offers outstanding reliability for critical infrastructures. Overall, the ZyXEL XGS1930-28HP-EU0101F is an advanced network solution combining high connectivity, PoE power, and efficient performance, adapting to the needs of modern business networks demanding flexibility and stability.

• Product with plug: Yes
• Type of plug: Plug EU
• Ports:
  • 24
  • 28
• Type:
  • Switch
  • Cupboard
• Power supply:
  • Electric Network
  • CA cable
• Speed: 1 Gbps
• Colour: Black
• Internal Memory: 32 GB
• Holder: Multi-support
• Length: 33 cm
• Number of slots: 4
• Screen: 24"
• Connections:
  • Ethernet LAN
  • RJ45 x 24
  • SFP+
• Frequency: 50 - 60 Hz
• Sound intensity: 28.5 dB
• Voltage: 100 - 240 V
• Certificate: RoHS
• Ports PoE: 375 W
• Characteristics: Data protection/Password
• Approx. temperature: -40º / 70º
• Safety: IGMP
• Accuracy (relative humidity): 10 % - 95 %
• Capacity: 2 GB

The most affordable choice for 10G migration The XGS1930 series, a new 10G uplink smart managed switch, comes with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology. Built for convenience This smart-looking switch features an intuitive design that simplifies daily network management for SMBs. Manage it your way! The XGS1930 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks. Don’t overspend to upgrade your wired network With Gigabit connectivity plus four 10G uplinks, the XGS1930 series is ideal for those seeking to upgrade to an easier-to-manage network—and at an affordable price. Whisper-quiet operation Smart fan and fanless designs for silent operation in your workplace. User-friendly LED indicators View real-time status instantly with cloud and PoE power-usage LED indicators. Power more devices more easily - Provides 30W per port and a high power budget of 375W, ideal for denser PoE deployments. - Default consumption mode boosts efficiency by delivering the actual power required. Zyxel ONE Network Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click. Designed for the long haul A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.

• Switch type: Managed
• Switch layer: L3
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 4
• Fiber optic connector: SFP+
• Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• 10G support: Y
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
• Port mirroring: Y
• IP routing: Y
• Routing entries: 32
• Flow control support: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Spanning tree protocol: Y
• VLAN support: Y
• Virtual LAN features: Voice VLAN,Port-based VLAN
• Number of VLANs: 4000
• MAC address table: 16000 entries
• Switching capacity: 128 Gbit/s
• Forwarding rate: 95.2 Mpps
• Static route: Y
• Path MTU discovery: Y
• Packet buffer memory: 1.5 MB
• DHCP features: DHCP relay,DHCPv6 relay,DHCP client
• Access Control List (ACL): Y
• IGMP snooping: Y
• Security algorithms: 802.1x RADIUS,HTTPS,SHA-2,SNMPv3,SSL/TLS
• SSH/SSL support: Y
• Loop protection: Y
• Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
• Password protection: Y
• CPU defense: Y
• Multicast support: Y
• GARP VLAN Registration Protocol (GVRP): Y
• Rack mounting: Y
• Product colour: Black
• Safety: LVD, BSMI
• Electromagnetic compatibility: FCC 15 A, CE A, BSMI EMC
• Certification: RoHS
• Internal memory: 512 MB
• Flash memory: 32 MB
• Noise level: 28.5 dB
• Mean time between failures (MTBF): 1369432 h
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Power consumption (max): 471 W
• Power over Ethernet (PoE): Y
• Power over Ethernet (PoE) ports quantity: 24
• Total Power over Ethernet (PoE) budget: 375 W
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 95%
• Storage relative humidity (H-H): 10 - 95%
• Heat dissipation: 1606.11 BTU/h
• Width: 441 mm
• Depth: 330 mm
• Height: 44 mm
• Weight: 4.6 kg
• Cables included: AC
• Rack mount kit: Y
• Package width: 585 mm
• Package depth: 503 mm
• Package height: 95 mm
• Package weight: 5.82 kg
