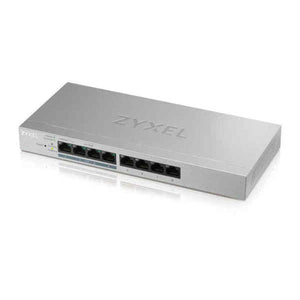

Switch ZyXEL ZY-GS12008HPV2

The ZyXEL ZY-GS12008HPV2 switch is a managed network device designed for professional environments requiring efficient and reliable connectivity. This switch features 8 RJ-45 Gigabit Ethernet ports (10/100/1000 Mbps), enabling high transfer speeds and stable connections for multiple devices. Its robust grey metal construction ensures durability and proper heat dissipation, making it ideal for rack installations or spaces with high technical demands. It also supports full-duplex operation, improving performance by allowing simultaneous data transmission and reception. With a 16 Gbit/s switching capacity and a MAC address table with 4,000 entries, it facilitates efficient data traffic management and network segmentation. Compatible with IEEE 802.1Q, 802.1p, and 802.3x standards, it supports advanced VLAN and flow control features essential for segmented networks with high quality of service. Power is supplied via a DC input connector at 55 V with an approximate consumption of 60 W, and it includes support for Power over Ethernet (PoE), simplifying the installation of network-powered devices such as IP cameras or VoIP phones. With compact dimensions of 78 cm wide, it offers flexible placement without compromising connection capacity. Overall, the ZyXEL GS1200-8HPv2 is an effective solution for those needing a managed switch with Gigabit ports that ensures performance, security, and scalability in corporate or small and medium business network infrastructures.

• Product with plug: Yes
• Type of plug: Plug EU
• Type: Switch
• Colour: Grey
• Material: Metal
• Ports: 8
• Height: 78 cm
• Screen: 24"
• Connections:
  • Ethernet LAN
  • rj45 x 8
• Power:
  • 60 W
  • 72 W
• Working range for humidity: 10 % - 90 %
• Compatible: Computers
• Approx. temperature: -40º / 70º
• Safety: IGMP
• RAM Memory: 2 GB

Essential PoE+ features. Simple network control Web-managed PoE+ switches are now within reach for SMBs seeking more network control The GS1200 series of PoE+ switches features true web management, QoS and support for 802.3af and 802.3at PoE+ plus a user-friendly set-up interface. With essential power and value features built-in, it’s the right choice for small or remote offices deploying IP cameras, VoIP phone systems or wireless access points. Smart PoE+ 802.3af/802.3at support The GS1200 series supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed. IGMP Snooping for optimized traffic delivery Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming. VLAN segregation for enhanced network security VLAN (virtual local area network) can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users. Enhanced port-based QoS for better traffic control QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow. Link Aggregation increase throughput GS1200-5HP v2/GS1200-8HP v2 combines 2 physical ports together to make a single high-bandwidth data path, for faster file transfers and to enhance connection reliability. Easy web management This switch comes with a user-friendly web-based set-up interface that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business. Advanced Energy-Savings at Work This switch’s built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during times of low traffic. Fanless, noiseless design Extend your network control and visibility without disrupting your quiet business environment. This business switch features a fanless design that ensures noiseless operation and greater reliability over time with fewer parts to fail. More comprehensive smart features included Featuring Gigabit performance that’s 10 times faster than Fast Ethernet. Deliver up to 2,000 Mbps of dedicated, non-blocking bandwidth per port and more advanced features like port mirroring, Jumbo Frame, broadcast storm control, loop detection/prevention. It’s a great choice for SMBs who want to enjoy high-speed business network applications!

• Switch type: Managed
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Power connector: DC-in jack
• Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3x
• Port mirroring: Y
• Full duplex: Y
• Flow control support: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Auto MDI/MDI-X: Y
• MAC address table: 4000 entries
• Switching capacity: 16 Gbit/s
• Store-and-forward: Y
• Jumbo frames support: Y
• Jumbo frames: 9
• Jumbo frame range: 1 - 1 B
• DHCP features: DHCP client
• IGMP snooping: Y
• Loop protection: Y
• Rack mounting: N
• Product colour: Grey
• Housing material: Metal
• Buffer size: 192 KB
• DC input voltage: 55 V
• Input current: 1.3 A
• Power consumption (max): 72 W
• Power over Ethernet (PoE): Y
• Power over Ethernet plus (PoE+) ports quantity: 4
• Total Power over Ethernet (PoE) budget: 60 W
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 10 - 90%
• Width: 240 mm
• Depth: 105 mm
• Height: 26 mm
• Weight: 584 g
• Package width: 256 mm
• Package depth: 132 mm
• Package height: 78 mm
• Package weight: 1.15 kg
