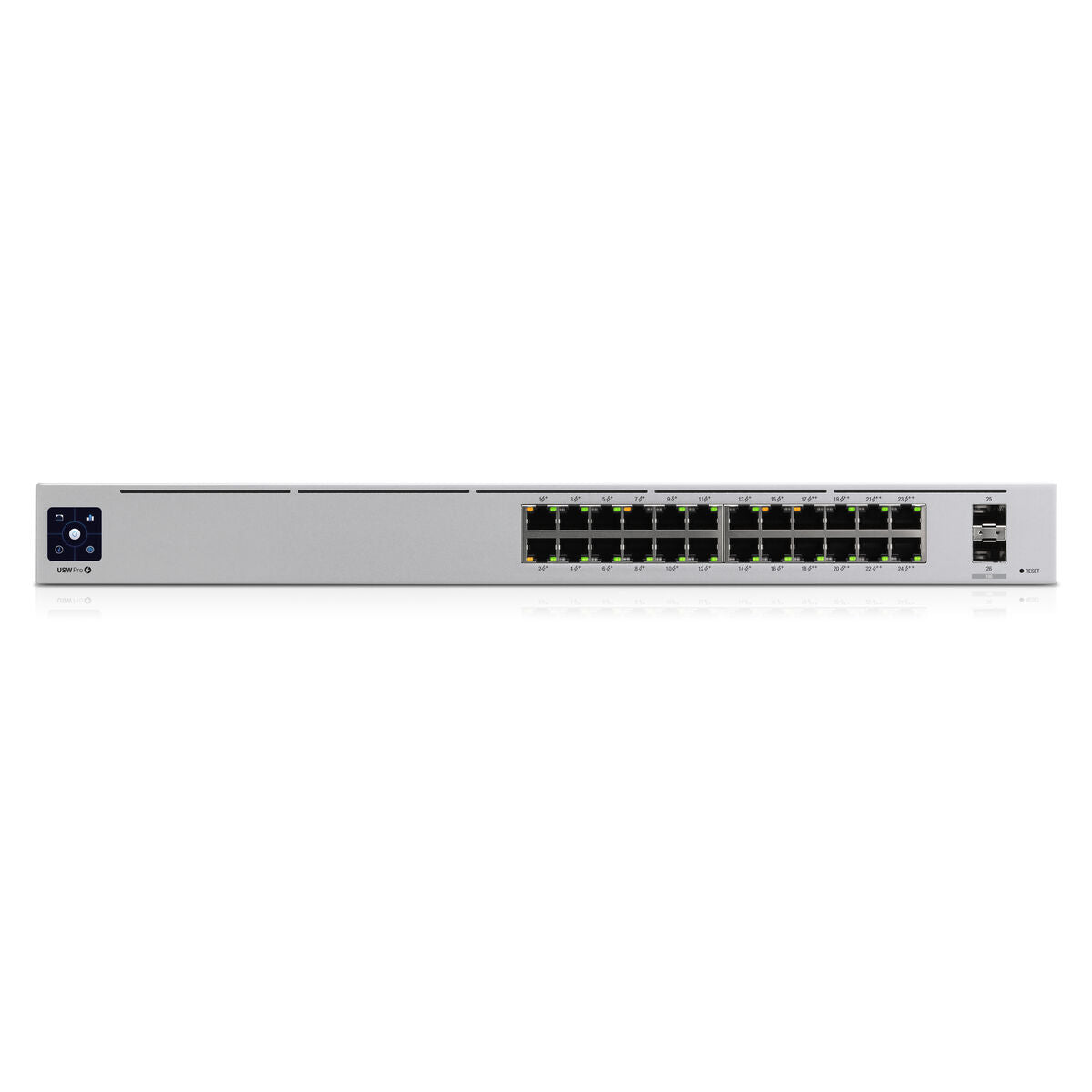

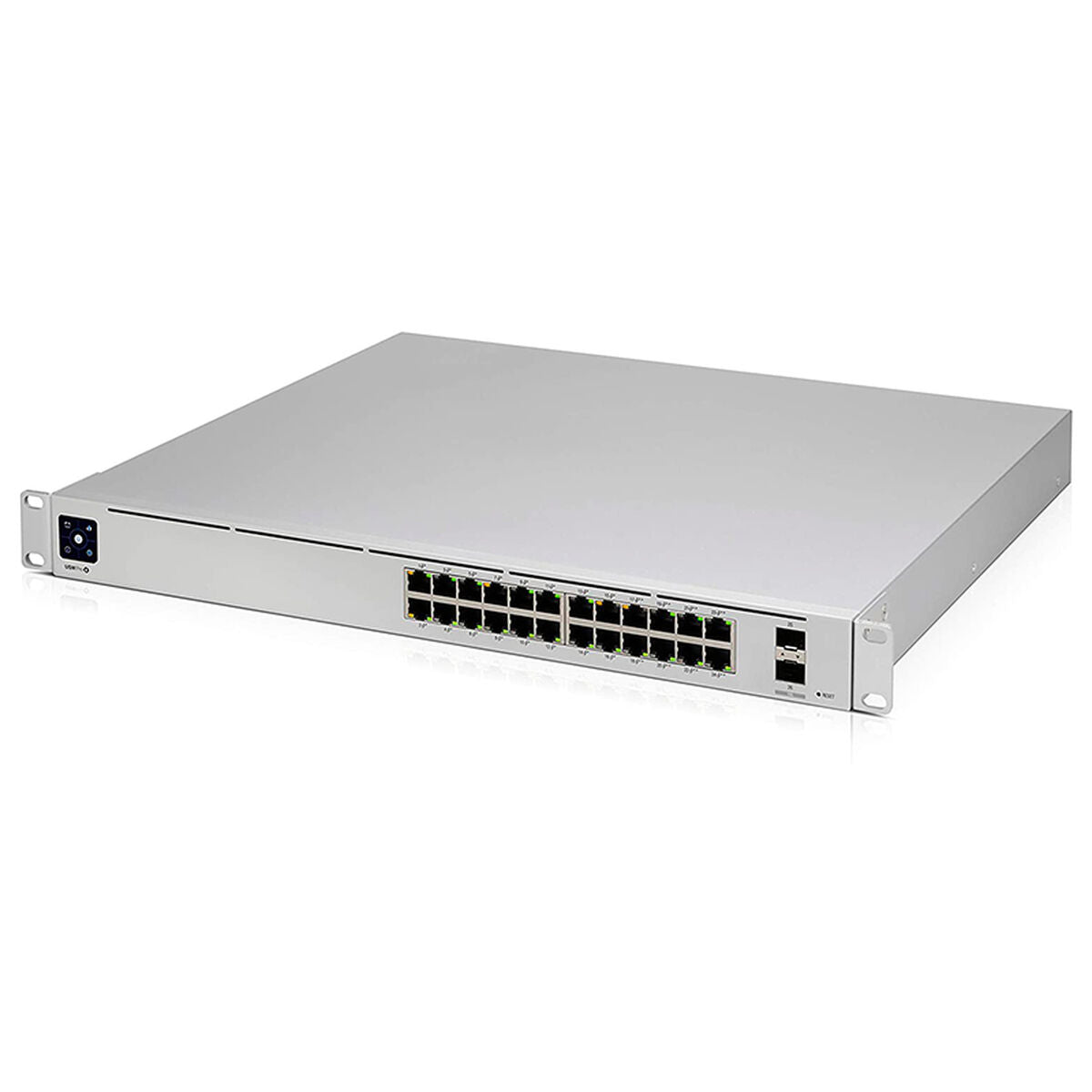

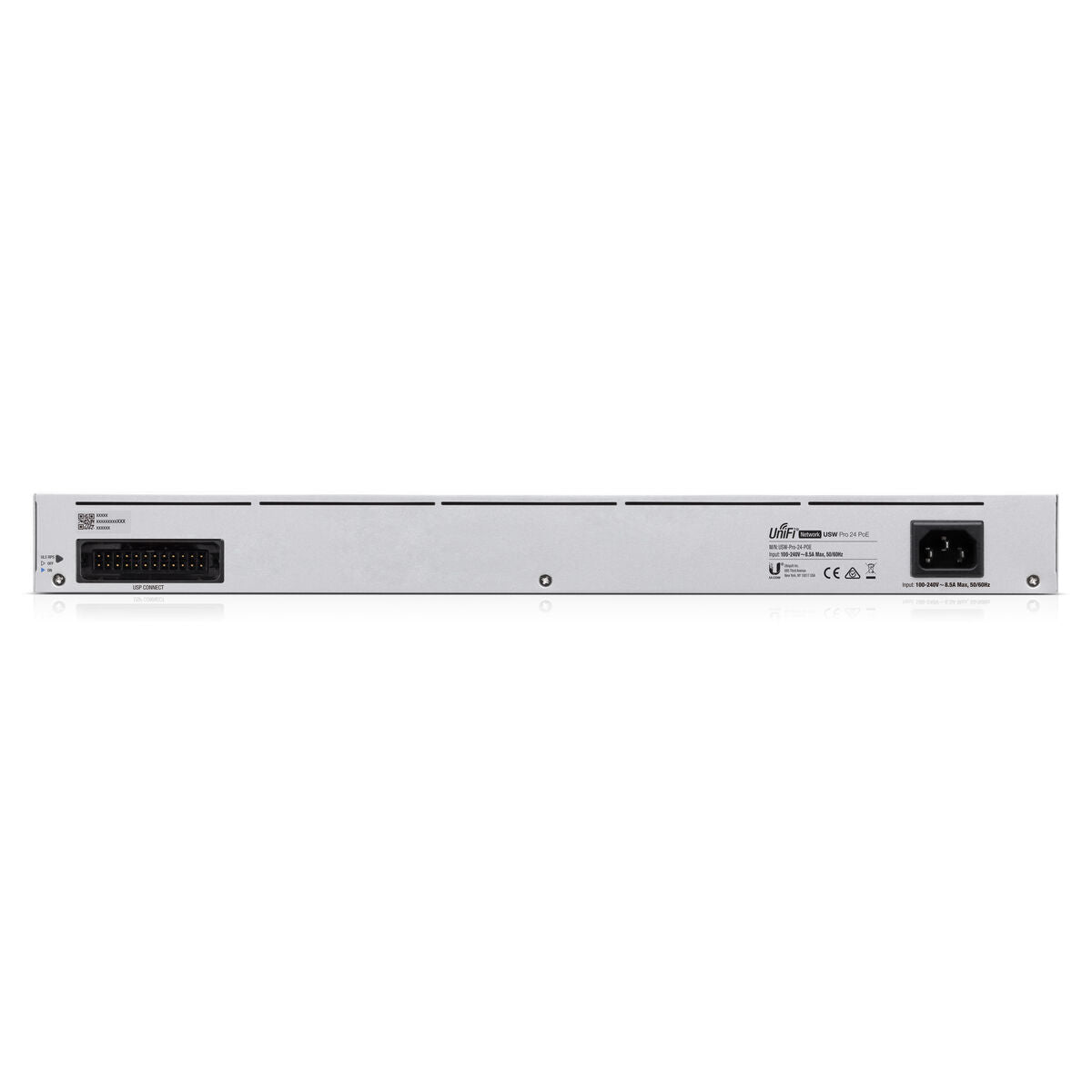

Switch UBIQUITI USW-PRO-24-POE Gigabit Ethernet

The USW-PRO-24-POE switch from the renowned brand Ubiquiti is an advanced network device designed for professional environments requiring efficient and robust data traffic management. This rack-mount switch features 24 RJ45 Gigabit ports (10/100/1000 Mbps) for fast and reliable Ethernet LAN connections, complemented by 2 SFP+ ports at 1/10 Gbps for high-speed links and greater connectivity flexibility. Its total switching capacity reaches 88 Gbps with a non-blocking throughput of 44 Gbps, ensuring smooth packet handling up to 65.472 million packets per second (Mpps). Regarding power, it includes a built-in 450W AC/DC power supply capable of delivering up to 400W PoE power distributed across its ports: the first 16 support PoE+ (IEEE 802.3af/at) and the last 8 support PoE++ (IEEE 802.3af/at/bt) with a maximum of 64 W per port, ideal for powering devices like advanced IP cameras, wireless access points, or VoIP phones without external adapters. Its robust design with dimensions of 442.4 x 285.4 x 43.7 mm and an approximate weight of 4.3 kg facilitates integration into standard telecom racks. It operates within an ambient temperature range of -5 to 40 °C and a working humidity of 10 to 90% non-condensing, supporting typical conditions in server rooms or data centers. The switch includes ESD/EMP protection with discharges up to ±16 kV air and ±12 kV contact, and complies with CE, FCC, and IC certifications, ensuring conformity with international safety and electromagnetic compatibility standards. Its versatile power input supports voltages between 100 and 240 VAC, with a maximum standard mode consumption of 50 W excluding PoE output. This device offers LED indicators for visual monitoring and stands out with its white and silver construction, providing a professional appearance. Overall, the Ubiquiti USW-PRO-24-POE is a high-performance switching solution aimed at network infrastructures requiring high PoE capacity, reliability, and connection flexibility, making it a key tool for business and technical environments demanding quality and efficiency.

• Type:
  • Cupboard
  • Rack
  • Male Plug/Male Plug
• Speed:
  • 1 Gbps
  • 10 Gbps
• Cable length: 50 cm
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • RJ45 x 24
  • SFP+ x 2
• Connectivity:
  • Gigabit Ethernet
  • Ethernet LAN
• Colour:
  • White
  • Silver
• Characteristics: LED indicator
• Battery type: Without batteries
• Connection: SFP+
• Frequency: 50 - 60 Hz
• Voltage: 100 - 240 V
• Battery operated: Not Included
• Working range for humidity: 10 % - 90 %
• Power supply: Iincluded
• Form factor: 1U
