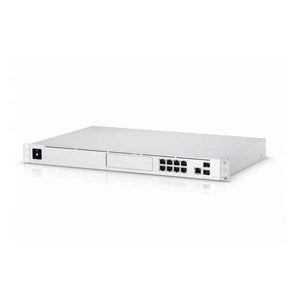

Switch UBIQUITI Dream Machine Pro

The Dream Machine Pro (UDM-PRO) from Ubiquiti is an advanced switch and ADSL modem-router designed for professional networks requiring high performance and versatile connectivity. This device features a sturdy aluminum chassis finished in white and black and offers a full set of ports including eight 10/100/1000 Mbps RJ45 LAN ports, one RJ45 WAN port with the same speed, and two SFP+ ports capable of 1/10 Gbps transfers on both LAN and WAN sides, allowing integration with fiber optic or high-demand network connections. It also includes Bluetooth BLE technology for easy wireless setup and monitoring. Inside, it houses a Quad ARM Cortex-A57 1.7 GHz processor, paired with 4 GB DDR4 memory and a 16 GB eMMC Flash memory for firmware and configuration storage, ensuring stable and smooth performance in multi-device environments. Its internal power supply is a 50W/12V unit with a maximum consumption of 33W, compatible with an input voltage range of 110 to 240V, providing flexibility for various electrical setups. The dimensions are 442.4 mm wide, 43.7 mm high, and 285.6 mm deep, weighing 3.90 kg, making it suitable for standard rack mounting. The design accounts for operating temperature (-10 to 40 ºC) and humidity (5-95%) typical of professional environments, with international certifications such as CE, FCC, and IC ensuring compliance and quality. Overall, this unit targets integrated network solutions with advanced management capabilities, combining gigabit switch functionality, routing, and 10G link options for high-speed connections, making it a solid choice for SMEs and IT environments demanding stability, flexibility, and scalability in their infrastructure.

• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • Ethernet LAN
  • RJ-45 x 9
• Type:
  • Switch
  • ADSL Modem-Router
  • With cable
• Power supply:
  • Electric Network
  • Iincluded
• Speed: 1 Gbps
• Colour:
  • White
  • Black
• Material: Aluminium
• Connectivity:
  • Bluetooth
  • Ethernet LAN
• Voltage:
  • 12 V
  • 220 V
  • 240 V
  • 100 - 240 V
• Number of slots: 2
• Ports: 8
• Frequency:
  • 50 - 60 Hz
  • 60 Hz
• Characteristics: LED in operation indicator
• Operating System: RouterOS
• AC input frequency: 50-60 Hz
• Approx. weight: 3,9 Kg
• Flash Memory: 16000 MB
• RAM Memory: 4 GB

All-in-one enterprise security gateway & network appliance for small to medium-sized businesses. The optimal experience for larger networks UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.

• Switch type: Managed
• Basic switching RJ-45 Ethernet ports quantity: 9
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 2
• 10G support: Y
• Throughput: 3.5 Gbit/s
• Rack mounting: Y
• Product colour: White
• LED indicators: Y
• Certification: CE, FCC, IC
• Built-in processor: Y
• Processor model: ARM Cortex-A57
• Processor frequency: 1700 MHz
• Internal memory: 4096 MB
• Flash memory: 16000 MB
• Power supply included: Y
• Redundant power supply (RPS) support: Y
• Number of power supply units: 1
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• DC input voltage: 12 V
• Power consumption (max): 33 W
• Width: 442.4 mm
• Depth: 285.6 mm
• Height: 43.7 mm
• Weight: 3.9 kg
