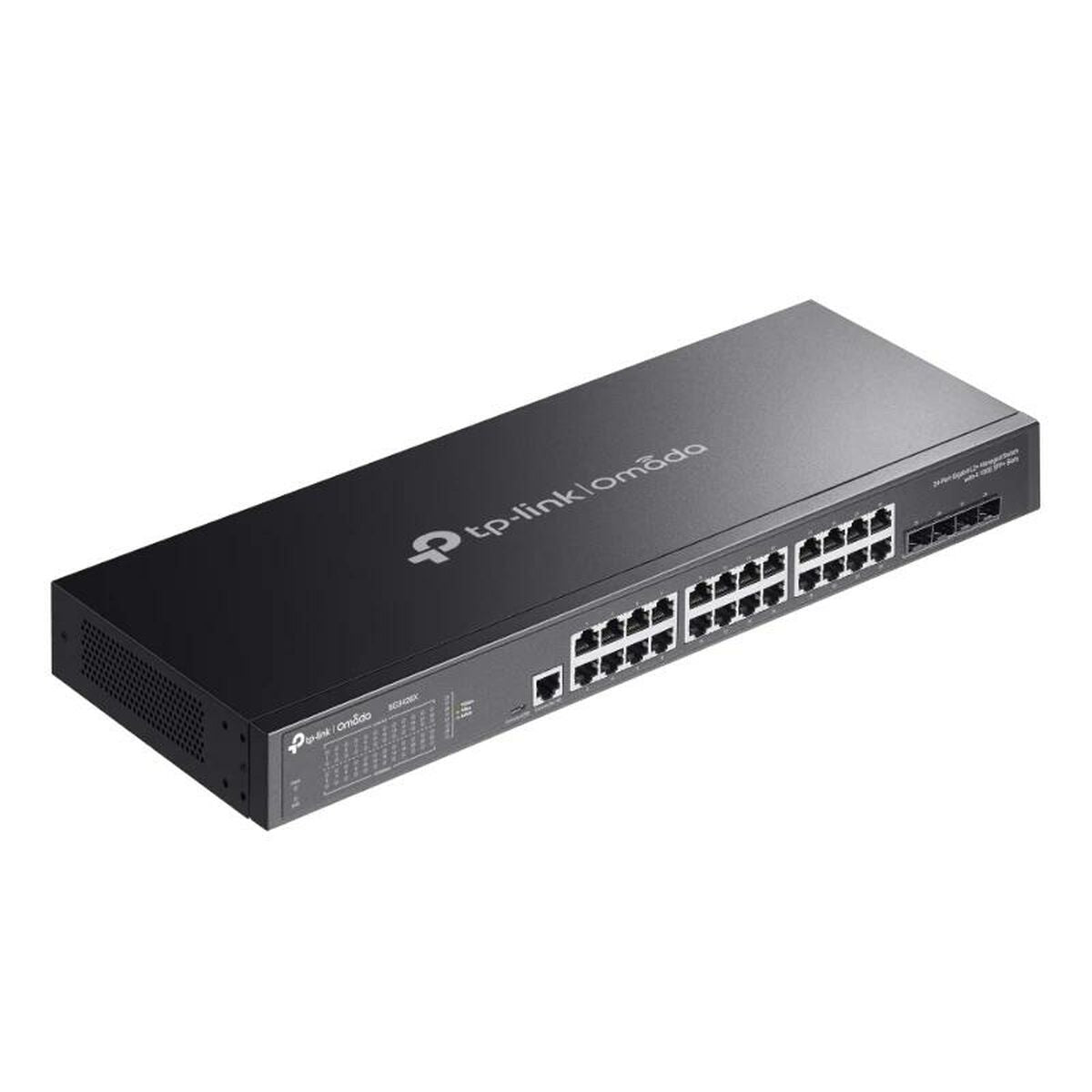

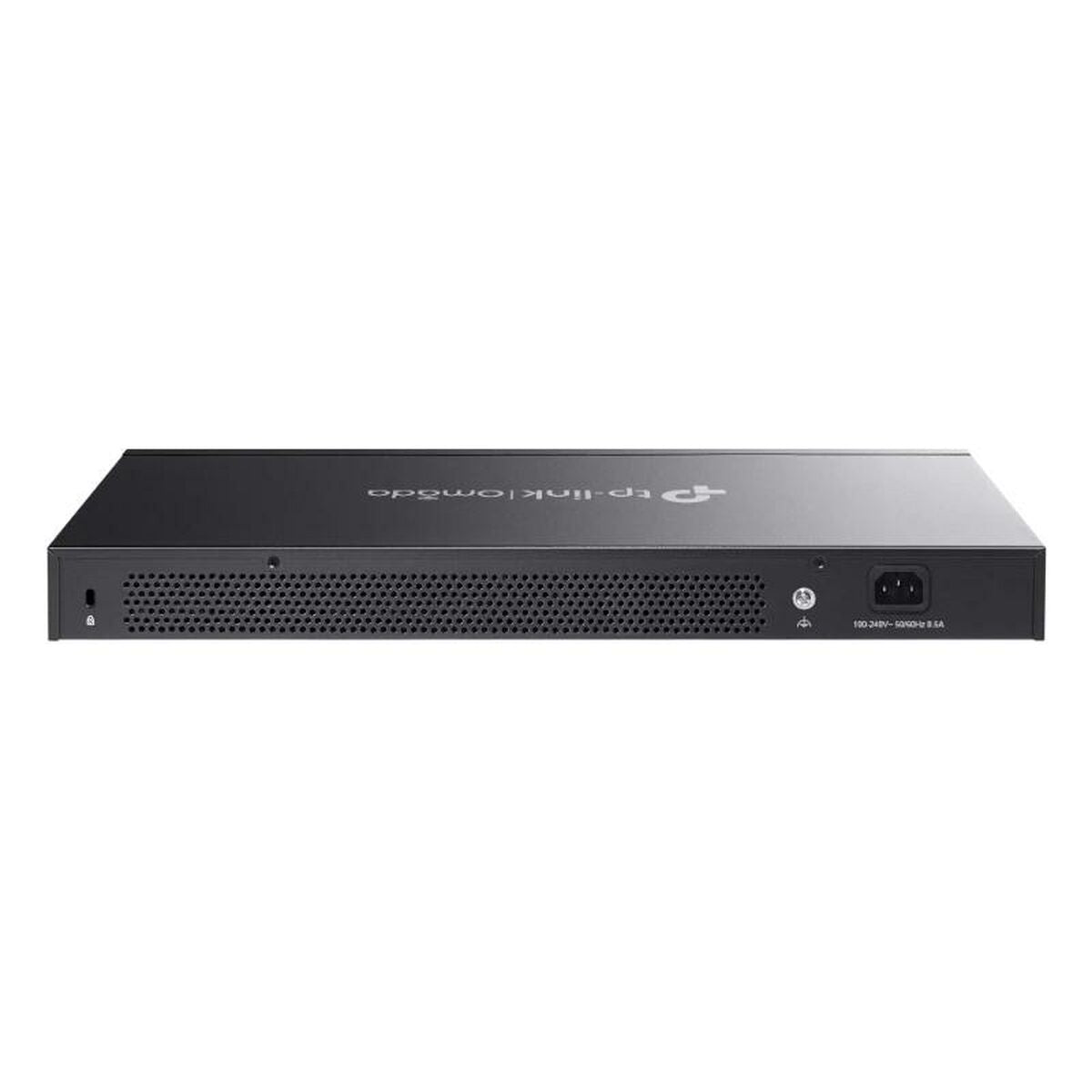

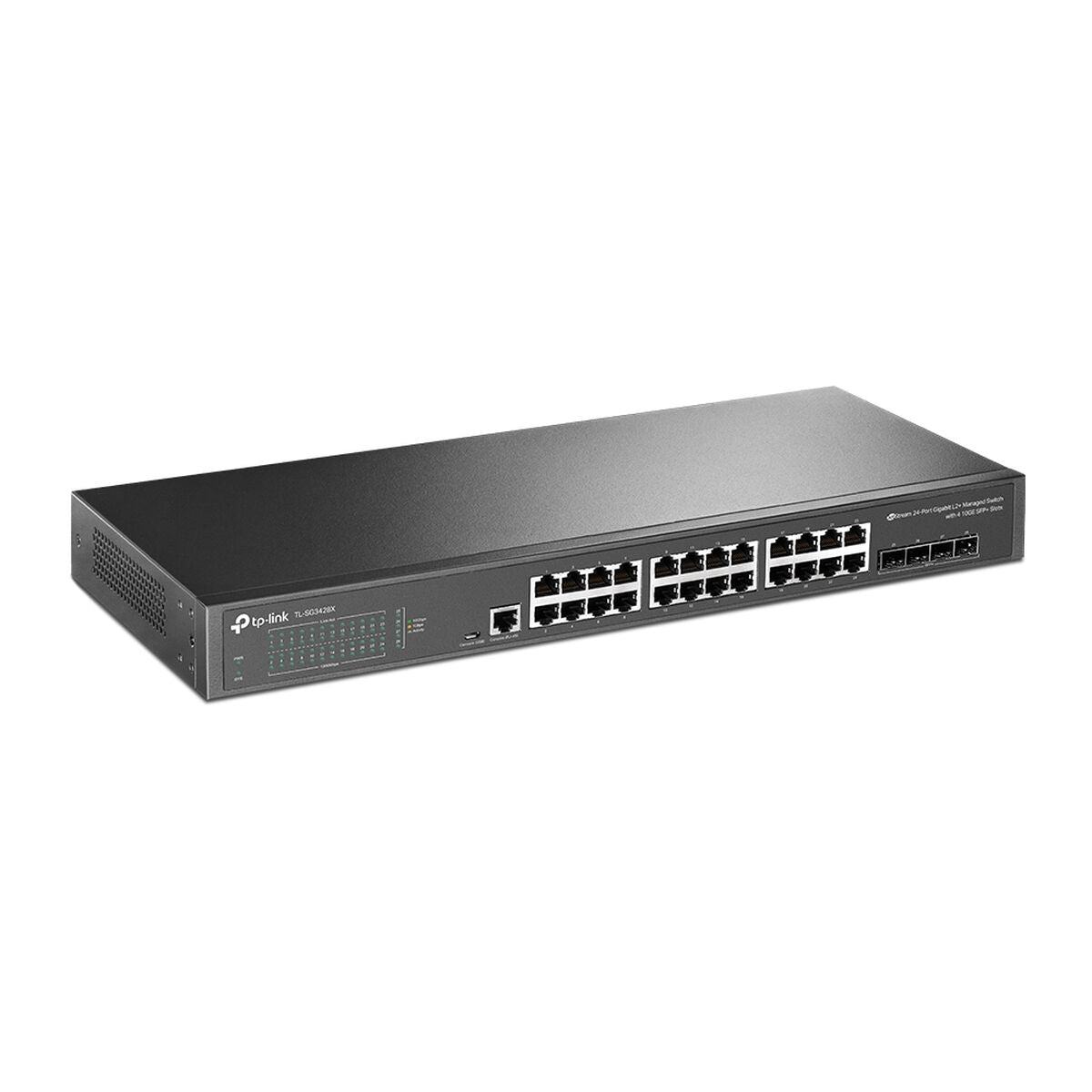

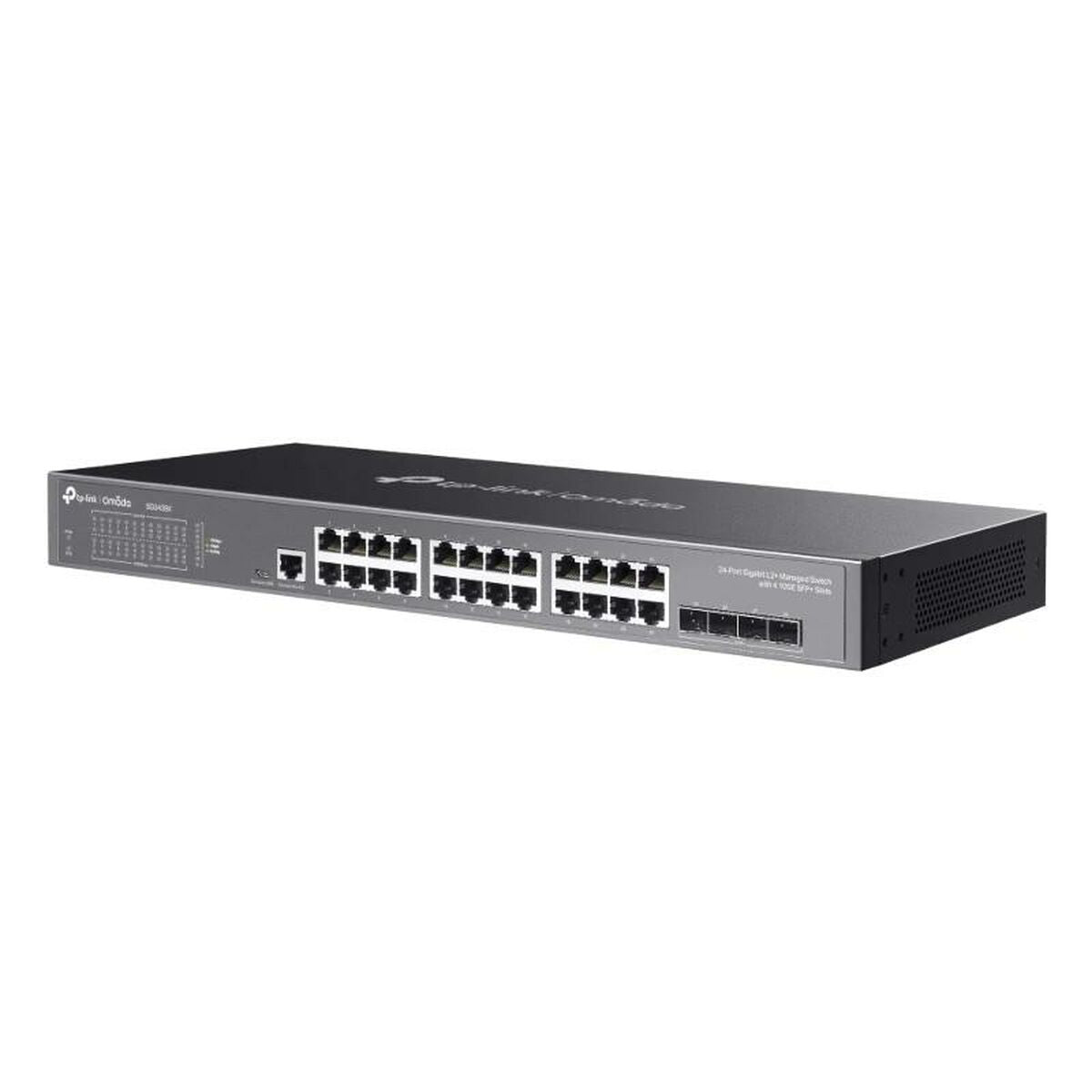

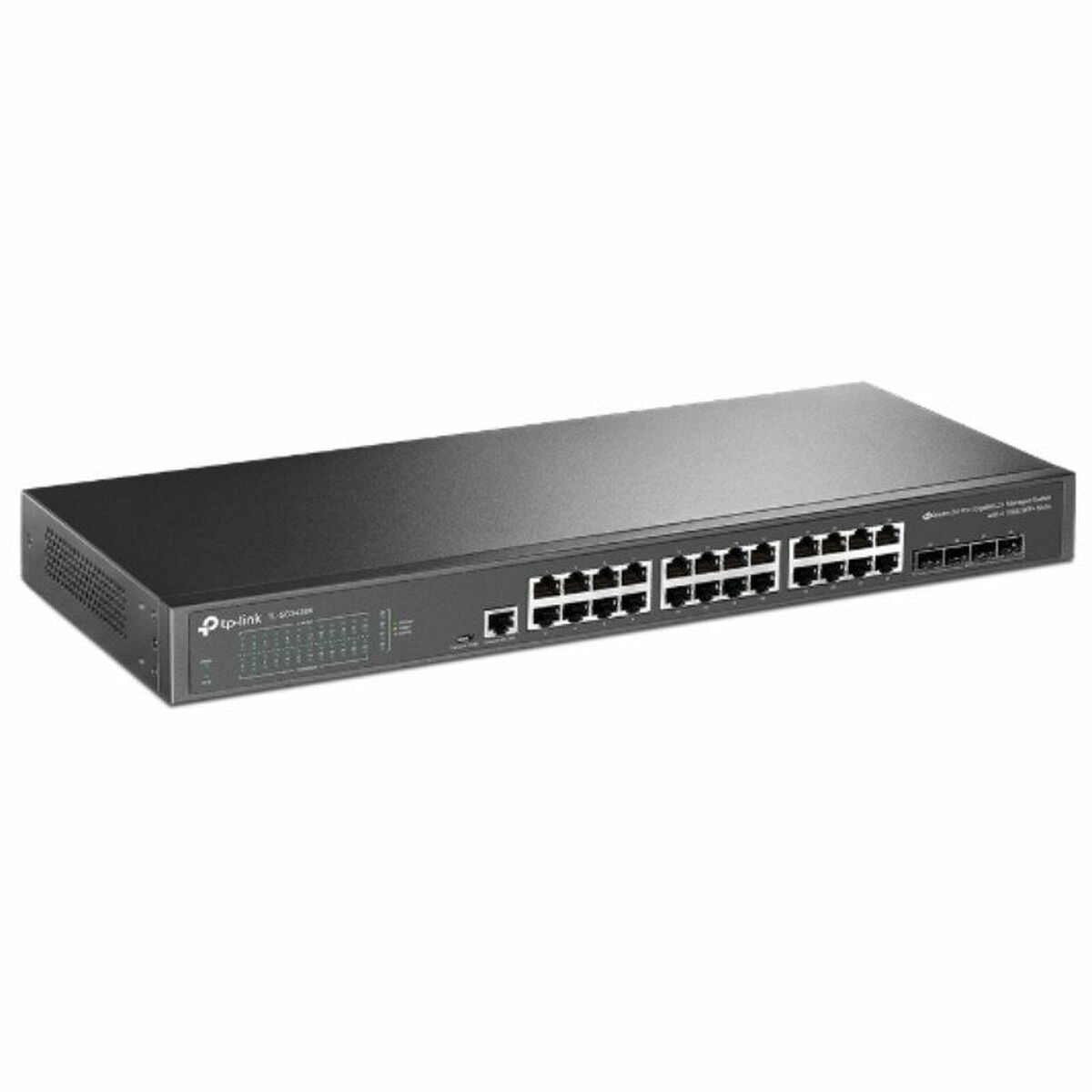

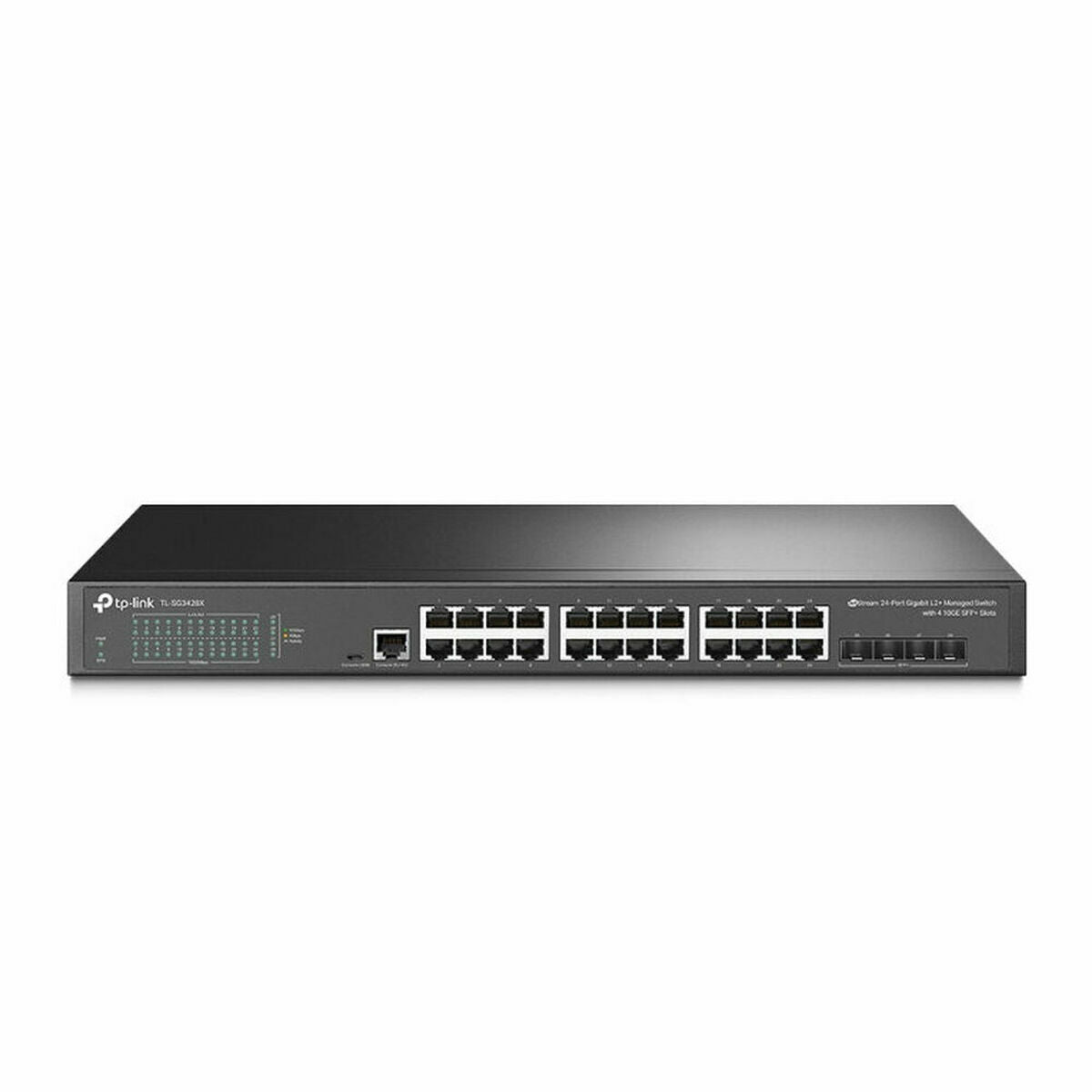

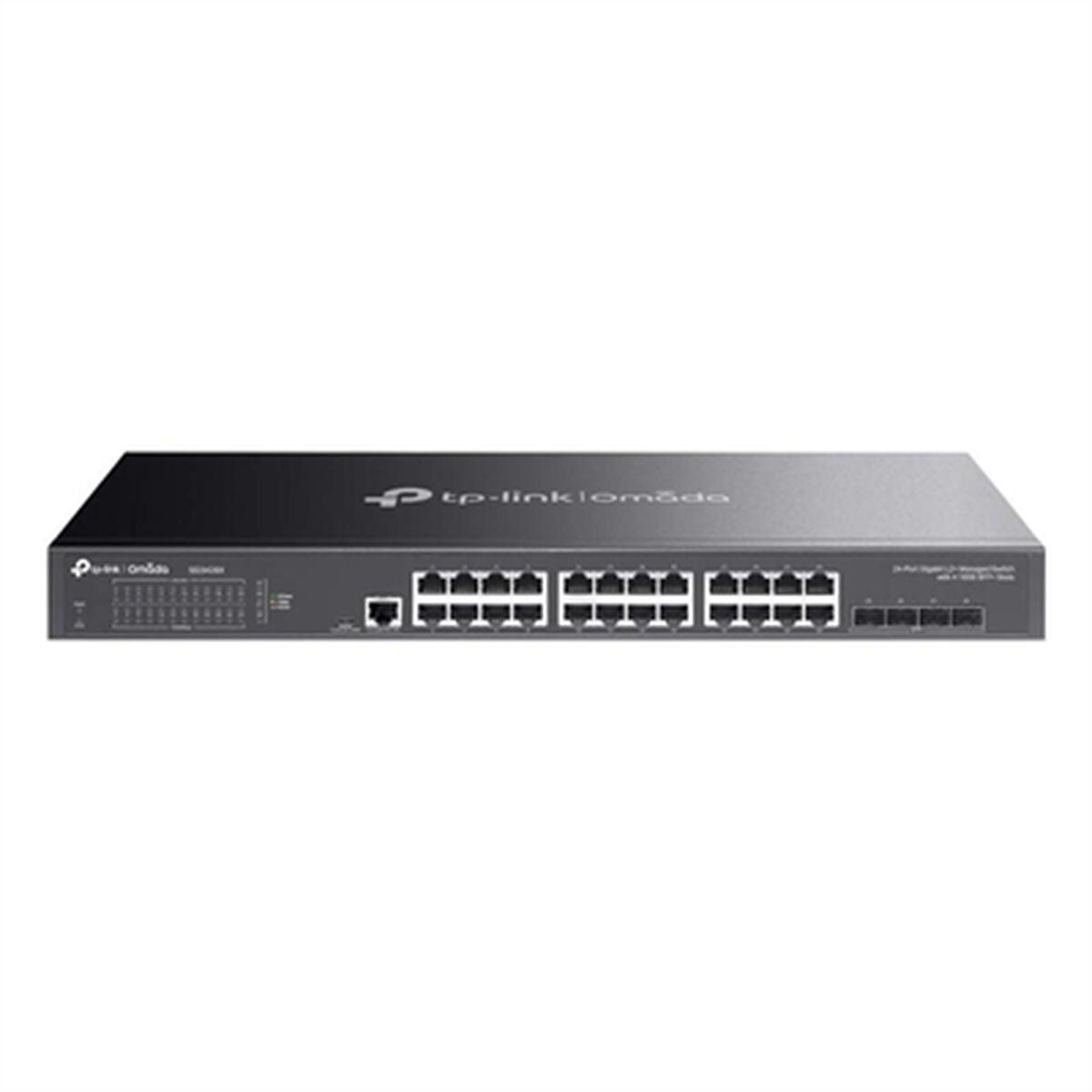

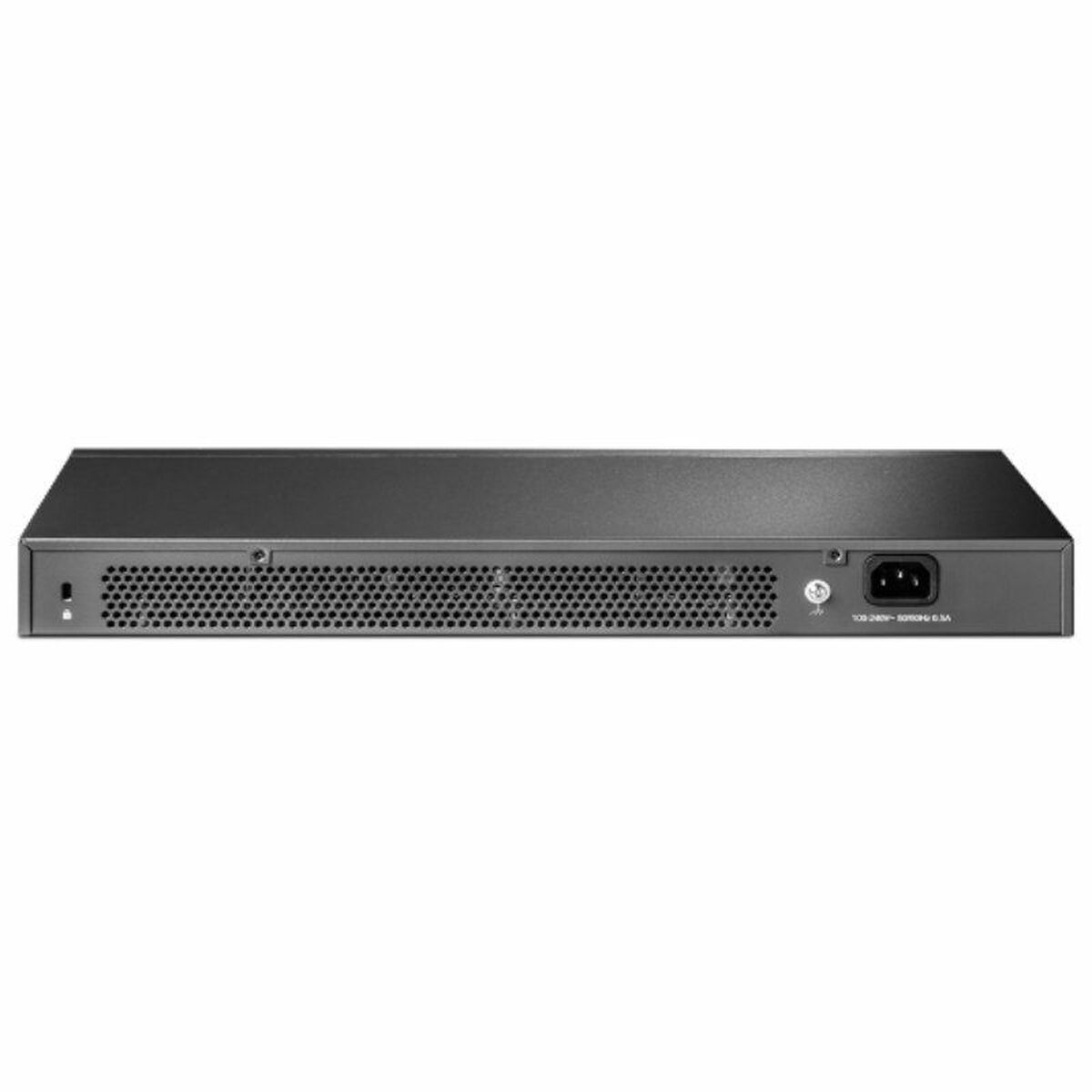

Switch TP-Link TL-SG3428X

The TL-SG3428X from TP-Link is a high-performance switch designed for business environments requiring efficient management and reliable connectivity. This model features a black color and a configuration that includes 24 RJ45 Ethernet LAN ports, ideal for connecting multiple network devices with stability and high speed. It also includes 4 SFP ports that allow integration of fiber optic links, providing flexibility and scalability for setups demanding long-distance or high-speed connections. Among its technical features, the TL-SG3428X offers Wi-Fi connectivity, suitable for managing a coexisting wireless network or complementing wired connections. This device also has LED indicators that facilitate visual monitoring of port status and operation, as well as a 220 V power supply for installation in standard environments. Its robust and multi-mount design allows both rack mounting and placement in various spaces, while the included installation guide enables quick and easy setup. The TP-Link TL-SG3428X is designed to provide a reliable switching solution, capable of efficiently managing data traffic in medium to large networks, delivering stability and performance to business infrastructures requiring multiple and versatile connections. It is a solid choice for those who value advanced technology and flexibility in their connectivity systems.

• Connections:
  • RJ45
  • SFP
  • SFP x 4
  • Ethernet LAN
  • RJ45 x 24
• Type of plug: Plug EU
• Product with plug: Yes
• Type:
  • Switch
  • Cupboard
• Ports:
  • 4
  • 24
• Characteristics:
  • LED indicator
  • Installation guide included
  • LED in operation indicator
• Feeding dish included: Yes
• AC input voltage: 100-240 V
• Includes:
  • LAN (RJ-45)
  • Ethernet LAN Cable
  • RJ45 Cable
• Length: 18 cm
• Approx. dimensions: 44 x 44 x 8 cm
• Width:
  • 440 mm
  • 44 cm
• Height: 4,4 cm
• Voltage:
  • 100-240 V
  • 220 V
  • 100 - 240 V
• Frequency: 50-60 Hz
• Connectivity:
  • Gigabit Ethernet
  • Wi-Fi
• Speed:
  • 1000 Mbps
  • 10/100/1000 Mbps
• Colour: Black
• Holder: Multi-support
• Number of slots: 4
• AC input frequency: 50-60 Hz
• Working range for humidity: 10 % - 90 %
• Power supply: Iincluded
• Form factor: 1U
• Compatible: Computers
• Approx. temperature: -40º / 70º
• Safety: IGMP

TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks. Software Defined Networking (SDN) with Cloud Access Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

• Switch type: Managed
• Switch layer: L2+
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Cloud-managed: Y
• ARP inspection: Y
• Configuring Location Settings (CLI): Y
• System event log: Y
• MIB support: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 4
• Console port: RJ-45/micro-USB
• Networking standards: IEEE 802.11d,IEEE 802.1s,IEEE 802.1w
• 10G support: N
• Port mirroring: Y
• Policy-based routing: Y
• Flow control support: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Spanning tree protocol: Y
• Head-of-line (HOL) blocking: Y
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Active link detection: Y
• VLAN support: Y
• MAC address table: 16000 entries
• Switching capacity: 128 Gbit/s
• Forwarding rate: 95.23 Mpps
• Number of static routes: 48
• Jumbo frames support: Y
• DHCP features: DHCP snooping
• IGMP snooping: Y
• IGMP proxy: Y
• Loop protection: Y
• Multicast support: Y
• Rack mounting: Y
• Product colour: Black
• LED indicators: Y
• Power supply included: Y
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Power consumption (typical): 23.6 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 - 45 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 80.353 BTU/h
• Width: 440 mm
• Depth: 180 mm
• Height: 44 mm
• Cables included: LAN (RJ-45)
• Quick start guide: Y
