Switch Ruijie Networks

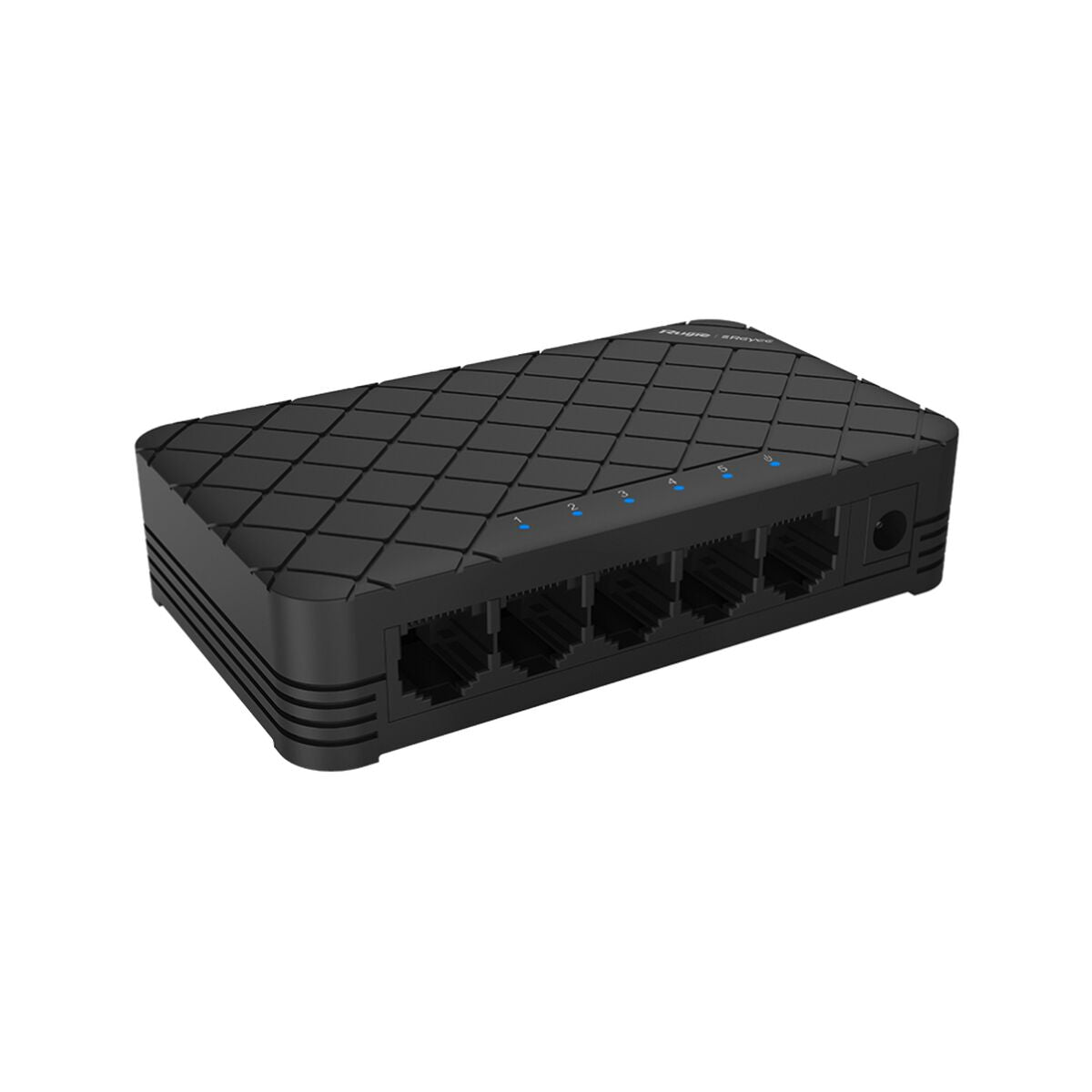

The RG-ES05G switch from Ruijie Networks is an unmanaged switch designed for small business environments, SOHO networks, and small-scale surveillance applications. It stands out for its ease of use and quick deployment thanks to plug and play and zero-configuration features. This compact device, measuring 108.1 mm wide, 64 mm deep, and 24.8 mm high, is made of durable black plastic and provides reliable connection through 5 Gigabit Ethernet RJ-45 ports (10/100/1000 Mbps), compliant with IEEE 802.3, 802.3U, and 802.3X standards, ensuring solid performance in modern network environments. The switch supports full duplex and half duplex communication, flow control, auto-negotiation, and auto MDI/MDI-X, enabling smooth connectivity without interruptions or advanced setup. Its switching capacity reaches up to 1 Gbit/s with a maximum forwarding rate of 7.44 million packets per second, and it manages a MAC table with up to 2000 entries, sufficient for most small networks. It operates on 5 V DC power with very low consumption of only 3 W, contributing to energy-efficient use without noise due to its fanless design. It features a convenient reset button for quick restoration of default settings when needed. Its operating range is from 0 to 40°C with relative humidity tolerance between 10 and 90%, ensuring robustness under normal office or small installation conditions. The package includes a quick setup guide and user manual for hassle-free installation. This model comes in a box-type package and does not support Power over Ethernet (PoE). In summary, the RG-ES05G switch by Ruijie Networks is a simple, reliable, and cost-effective solution for small network infrastructures requiring fast and stable connections without the complexity of advanced configurations or remote management.

• Product with plug: Yes
• Type of plug: Plug EU
• Type: Switch
• Power supply:
  • Electric Network
  • DC
• Colour: Black
• Material: Plastic
• Voltage: 5 V
• Connections:
  • Ethernet LAN
  • RJ45 x 5
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Amperage: 0,6 A
