Switch Ruijie Networks

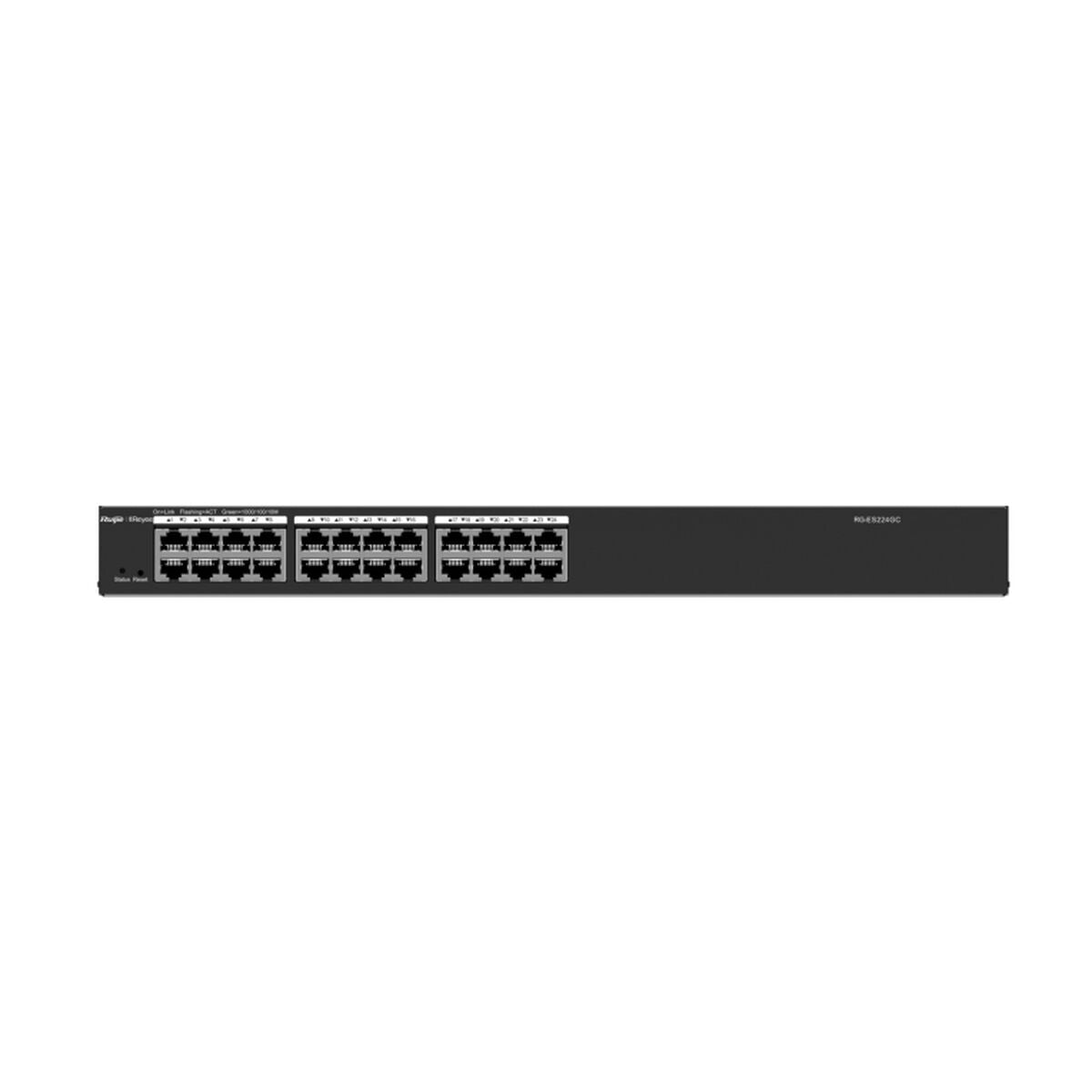

The Ruijie Networks ES224GC managed switch is a device designed to provide efficient and reliable connectivity in corporate and SME networks, with 24 Gigabit Ethernet RJ45 ports allowing high-speed connections of up to 1 Gbps per port. Featuring a black color and a compact design measuring 44 mm high, 440 mm wide, and 165 mm deep, this switch weighs 2.8 kg and is rack-mountable, facilitating physical integration into existing network infrastructures. Its 48 Gbit/s switching capacity and a forwarding rate of 35.71 million packets per second (MPPS) ensure adequate performance to handle heavy traffic without losses. This unit operates with an input voltage of 100 - 240 V AC, with an efficient power consumption of 12 W and supports a maximum current of 6 A, also including the power supply. It features advanced management and security functions such as automatic loop protection to maintain network continuity, support for flow control, storm control, and auto-negotiation that optimize operation and ease of configuration. Additionally, it is a stackable and cloud-managed device, allowing centralized, fast, and simple administration via online platforms. It supports up to 16 VLANs, facilitating traffic segmentation to improve network security and efficiency, and maintains a MAC address table with 8000 entries for precise traffic control. The switch is certified to relevant standards including IEEE 802.3AF and IEEE 802.3AT, although it does not support PoE. This layer 2 device combines robust technology and versatility, suitable for environments requiring a stable, scalable, and easy-to-manage network infrastructure. Overall, the Ruijie Networks ES224GC is a reliable, technical, and professional solution for those seeking an efficient and manageable switching device for business networks.

• Product with plug: Yes
• Type of plug: Plug EU
• Type:
  • Switch
  • Stackable
• Power supply:
  • Electric Network
  • Iincluded
• Colour: Black
• Ports: 24
• Connections:
  • Ethernet LAN
  • RJ45 x 24
• Voltage: 100 - 240 V
• Width: 44 cm
• Amperage: 6 A
• Working range for humidity: 10 % - 90 %
• Compatible: Computers
• Length: 16,5 cm
