Switch Lanberg DSP1-0105

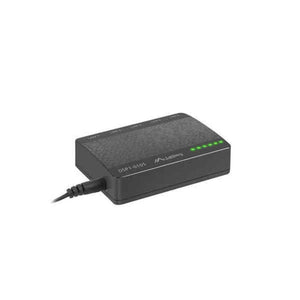

The Lanberg DSP1-0105 switch is an unmanaged device designed for small networks or simple solutions requiring fast and reliable connections. This switch features 5 RJ-45 Fast Ethernet ports (10/100 Mbps), allowing multiple devices to connect simultaneously with a maximum transfer speed of up to 100 Mbps, ideal for office or home environments where advanced traffic management is not needed. Its black plastic construction provides a lightweight and compact structure, measuring 82 mm wide, 52 mm deep, and 22 mm high, and weighing only 100 grams, enabling discreet integration in any space. Power is supplied via an included adapter operating between 100 and 240 V AC at a frequency of 50-60 Hz, converting to 5 V DC and 1 A for safe and stable operation. Among its technical features, it offers a MAC address table with capacity for 1,000 entries and a switching capacity of 1 Gbit/s, ensuring efficient traffic handling despite being unmanaged. The Lanberg DSP1-0105 complies with IEEE 802.3i, 802.3u, and 802.3x standards, guaranteeing compatibility with Ethernet 10BASE-T and 100BASE-TX technologies, although it does not support 10G or PoE. Optimal operation ranges from 0 to 40 °C with relative humidity between 10 and 90%. It also includes LED indicators for easy visual monitoring of its status. Thanks to its simple and effective design, this switch is a practical solution to expand connectivity in basic networks, providing fast and stable connections without extra complexity.

• Type: Switch
• Product with plug: Yes
• Type of plug: Plug EU
• Power supply:
  • Electric Network
  • Iincluded
• Colour: Black
• Material: Plastic
• Voltage:
  • 5 V
  • 100 - 240 V
• Approx. weight: 1 kg
• Characteristics: LED in operation indicator
• Speed: 100 Mbps
• Amperage: 1 A
• AC input frequency: 50-60 Hz
• Power: 3600 W
• Working range for humidity: 10 % - 90 %
• Connections: RJ45 x 5
