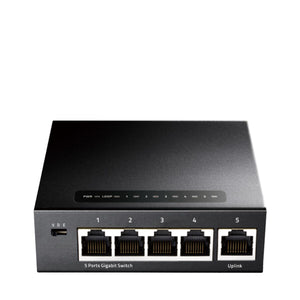

Switch Cudy GS105

The GS105 switch from the brand Cudy is a network interconnection device designed for environments requiring reliable, high-speed Ethernet connections, ideal for small offices and home networks. This Ethernet switch is equipped with 5 RJ-45 Gigabit Ethernet ports operating at transfer speeds of 10/100/1000 Mbit/s, enabling efficient and stable communication between multiple devices. Compatible with a wide range of network cables, from CAT3 to CAT8.1, it ensures installation flexibility. It complies with IEEE 802.3, IEEE 802.3AB, IEEE 802.3U, and IEEE 802.3X standards, essential for interoperability and optimal performance. Advanced features include full duplex capability for simultaneous two-way transmission, flow control support, and auto MDI/MDI-X function that automatically adjusts port configurations to simplify connections regardless of cable type. It also includes traffic management features such as VLAN support, automatic MAC address learning and aging with a table for up to 1000 entries, and supports jumbo frames up to 2000 bytes, enhancing performance on networks handling larger packets. Its switching capacity is 10 Gbit/s, with a throughput of 7.44 million packets per second ensuring smooth data flow without bottlenecks. The compact, lightweight design in black facilitates integration in various spaces, measuring 100 mm wide, 70 mm deep, and 26 mm high, weighing only 200 grams, and without rack-mount option. It features LED indicators for connection status, link, and power, and includes a power supply with AC input from 100 to 240 V and DC output of 5 V, ensuring electrical compatibility across regions. The switch does not support Power over Ethernet (PoE) but is a robust solution for expanding wired networks requiring low latency and high stability. Its wide operating temperature range from -10 to 50 °C and relative humidity range of 10 to 90% ensure operation under various environmental conditions. With a mean time between failures of 100,000 hours, it guarantees long-term reliability. In summary, the Cudy GS105 is an essential tool for users needing quality and stability in Gigabit Ethernet connections with advanced switching functions and ease of use.

• Product with plug: Yes
• Type of plug: Plug EU
• Type: Switch
• Power supply:
  • Electric Network
  • Iincluded
• Colour: Black
• Voltage:
  • 24 V
  • 5 V
  • 100 - 240 V
• Ports: 5
• Connections:
  • Ethernet LAN
  • RJ45 x 5
• Speed:
  • 1 Gbps
  • 10/100/1000 Mbps
• Width: 10 cm
• Weight: 200 g
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
