Router UBIQUITI 6P

• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • USB 3.2
  • USB x 1
  • Ethernet LAN
  • PoE x 1
  • RJ-45 x 6
  • PoE x 5
• Type: Router
• Power supply:
  • Electric Network
  • Electric cable
  • CC
• Colour: Black
• Material: Plastic
• Characteristics:
  • LED indicator
  • Restore button
• Interface: Gigabit Ethernet
• Ports: 6
• Connectivity: Ethernet LAN
• Speed: 10/100/1000 Mbps
• Power: 16 W
• Weight: 730 g
• Working range for humidity: 10 % - 90 %
• Chassis assembly: 1U
• AC input voltage: 110 - 240 V
• Capacity: 4 GB
• Nuclei: 4 Nuclei

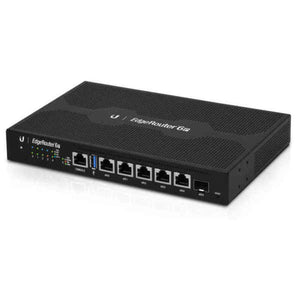

6-Port Gigabit Router with 1 SFP Port The EdgeRouter™ 6P delivers 3.4 million packets per second routing performance in a compact and cost-effective unit. Price/Performance Breakthrough The EdgeRouter™ 6P offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 6 Gbps. Versatile Design The EdgeRouter 6P can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately). Centralized Management The EdgeRouter 6P is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.

• Ethernet WAN: Y
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN: Y
• Cabling technology: 10/100/1000Base-T(X)
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Forwarding rate: 3.4 Mpps
• Switching capacity: 6 Gbit/s
• Web-based management: Y
• Quality of Service (QoS) support: Y
• Reset button: Y
• Ethernet LAN (RJ-45) ports: 6
• Gigabit Ethernet (copper) ports quantity: 6
• Power over Ethernet (PoE) ports quantity: 5
• Installed SFP modules quantity: 1
• USB ports quantity: 1
• USB version: 3.2 Gen 1 (3.1 Gen 1)
• Serial ports quantity: 1
• DC-in jack: Y
• DHCP client: Y
• DHCP server: Y
• Management protocols: UNMS, CLI, SNMP, NetFlow, LLDP, NTP
• Security algorithms: IPSEC,SNMP,SSH
• Firewall: Y
• VPN support: IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access L2TP Remote Access PPTP Client
• Built-in processor: Y
• Processor architecture: MIPS64
• Processor frequency: 1000 MHz
• Processor cores: 4
• Storage media: eMMC
• Internal storage capacity: 4 GB
• Internal memory: 1024 MB
• Internal memory type: DRAM
• Certification: CE, FCC, IC
• Product colour: Black
• Rack mounting: Y
• Rack capacity: 1U
• LED indicators: Activity, Link, Speed
• Antenna type: Not supported
• Power consumption (typical): 16 W
• Power source type: AC
• AC input voltage: 110 - 240 V
• Power over Ethernet (PoE): Y
• Operating temperature (T-T): -10 - 50 °C
• Operating relative humidity (H-H): 10 - 90%
• Width: 229 mm
• Depth: 136.5 mm
• Height: 31.1 mm
• Weight: 730 g
• AC adapter included: Y
• Manual: Y
• Package type: Box
