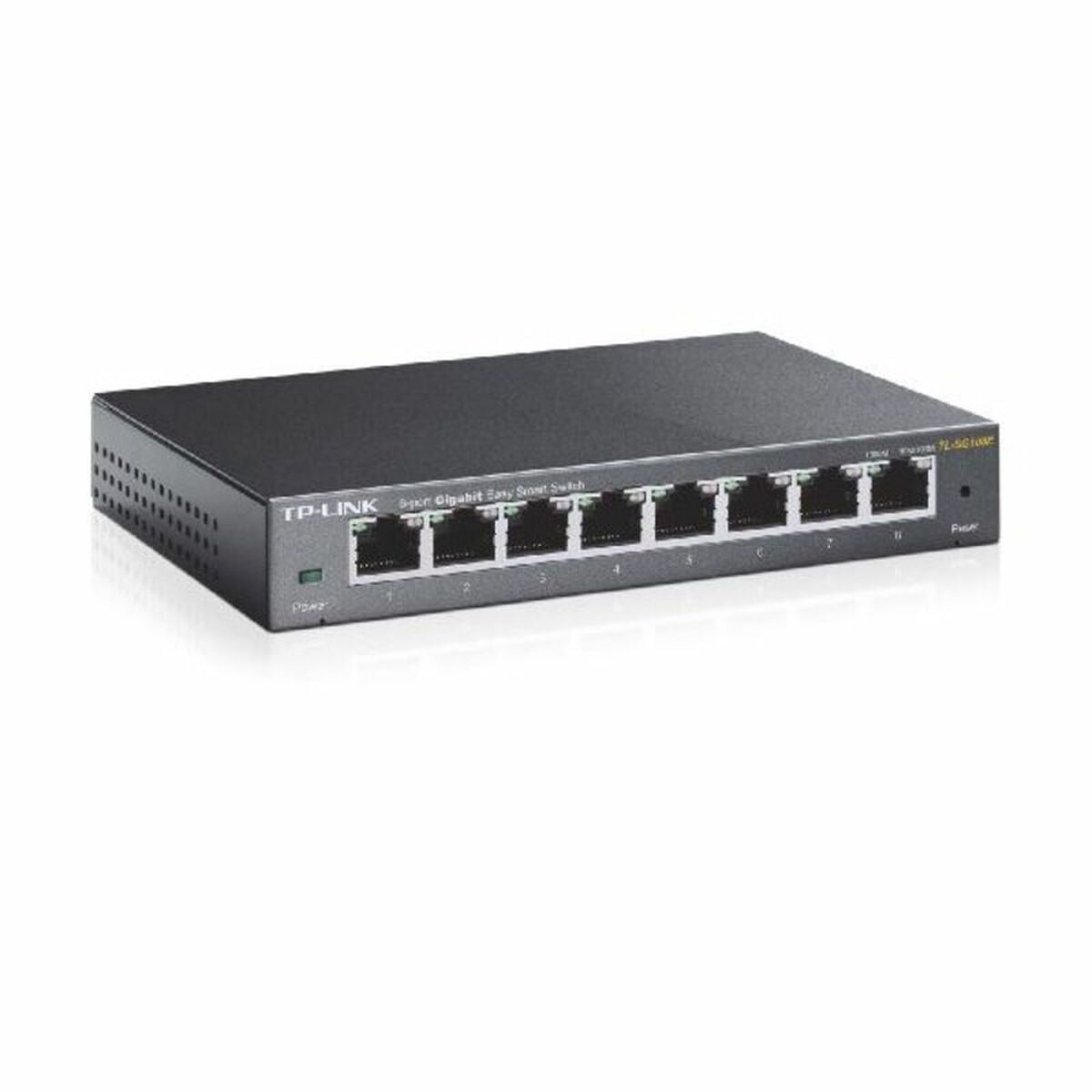

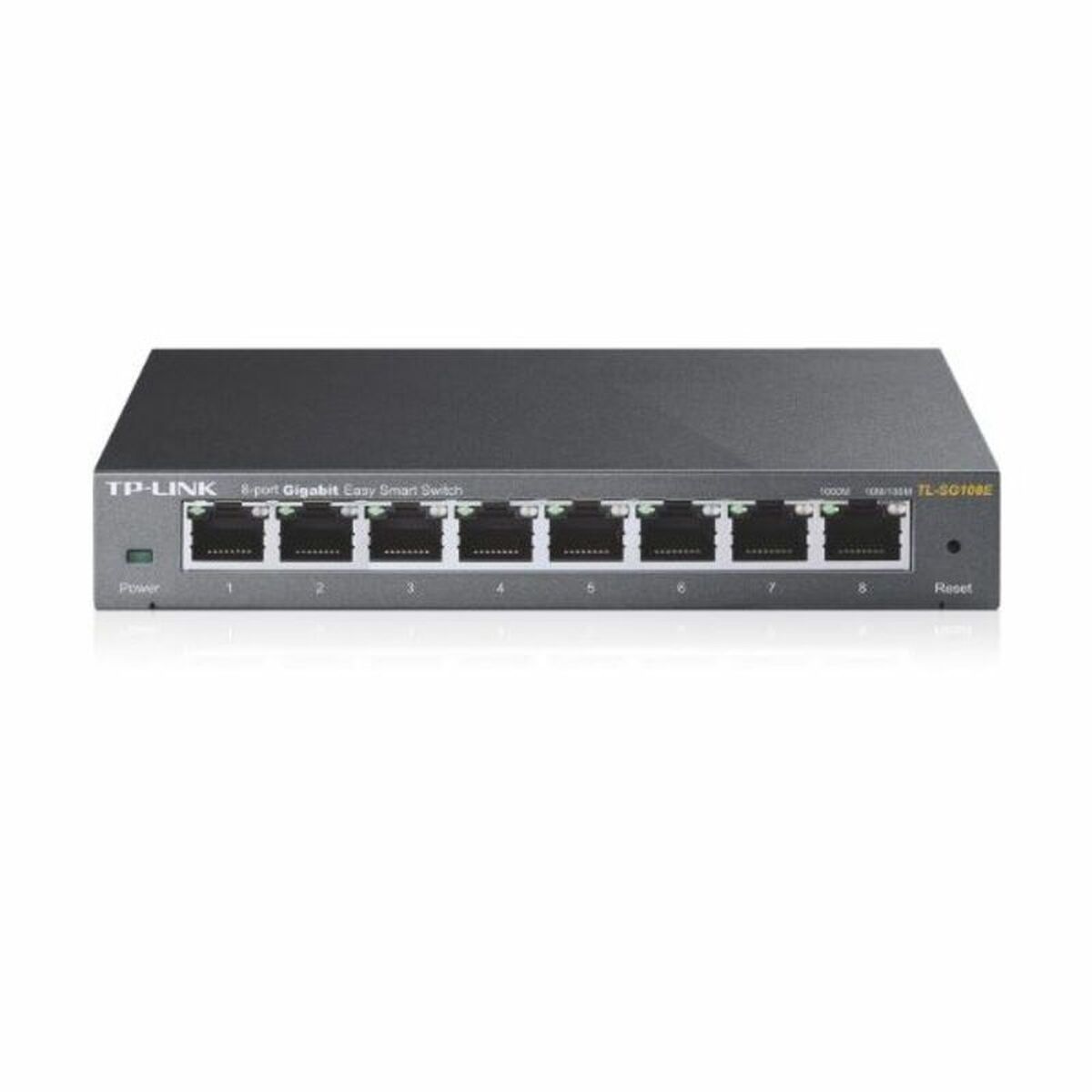

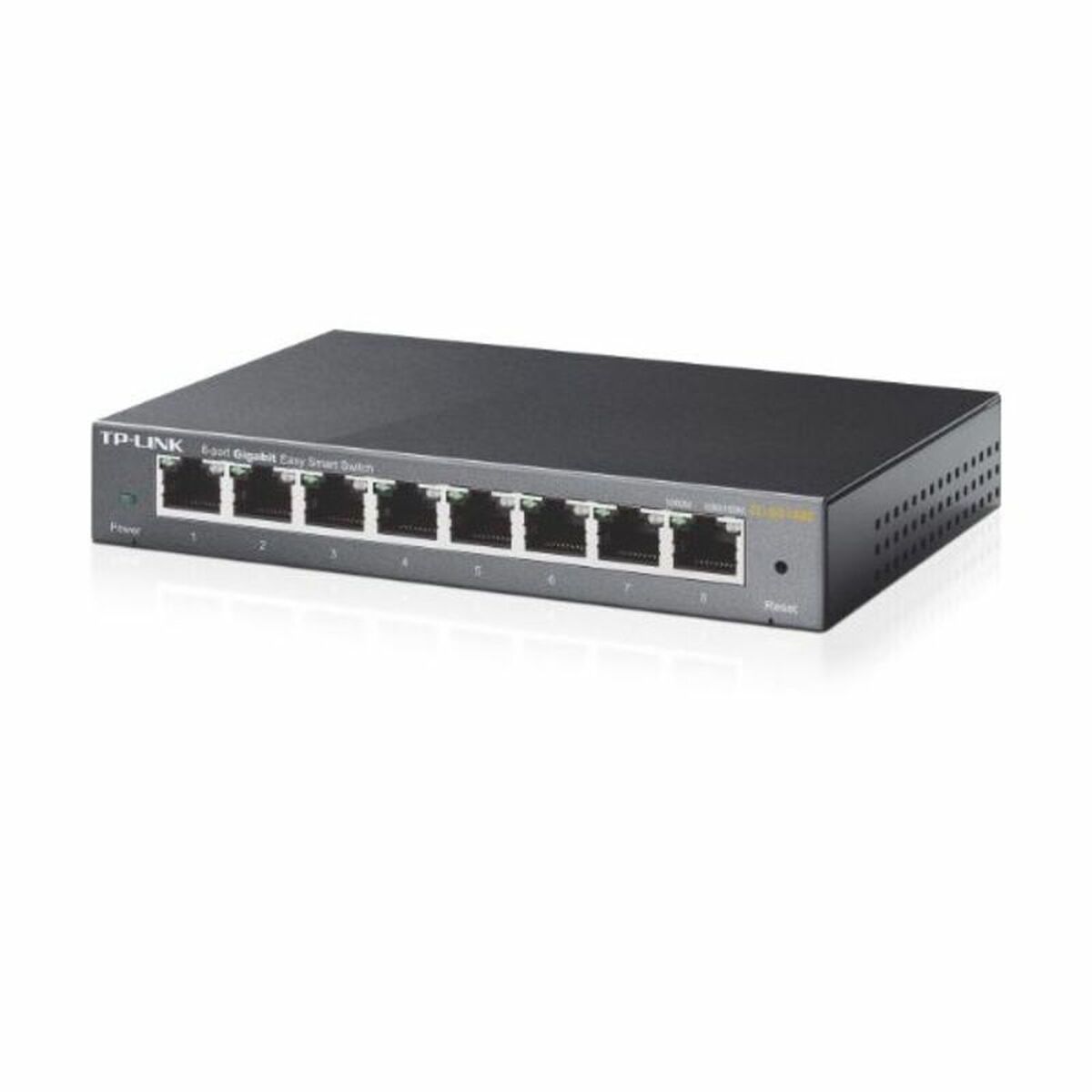

Desktop Switch TP-Link TL-SG108E

The desktop switch TP-Link TL-SG108E is a Gigabit Ethernet L2 managed switch designed for small businesses, offices and advanced home networks that need more control without sacrificing ease of use. It features 8 Gigabit RJ45 ports (10/100/1000), compatible with CAT3, CAT4, CAT5 and CAT5e cables, making full use of network bandwidth with a switching capacity of 16 Gbit/s and a forwarding rate of 11.9 Mpps, suitable for heavy data, voice or video traffic. As a Layer 2 managed switch, it offers advanced functions such as VLAN with up to 32 port‑based VLANs, QoS (Quality of Service) to prioritise critical applications, port mirroring for monitoring, link aggregation to increase bandwidth between key devices, broadcast storm control, IGMP support to optimise multicast traffic and a 4,000‑entry MAC table that enables efficient management of multiple connected devices. Management is simple via a web interface and standard management protocols such as SNMP, SNMPv2 and SNMPv3, allowing easy integration into existing network infrastructures and enabling remote monitoring and configuration. It supports auto MDI/MDI-X and auto‑negotiation, automatically detecting speed and connection type, and its store‑and‑forward architecture helps reduce traffic errors. It supports Jumbo Frames up to 15,000 bytes for more efficient large data transfers, and its 1.5 MB buffer helps maintain stable flow under heavy load. The chassis is metal, robust and durable, with a compact black design (approx. 158 x 101 x 25 mm and 380 g), and includes front LED indicators to check port and power status at a glance. It runs on 9 V DC power, includes an AC power adapter and meets FCC, CE and RoHS certifications, with a low maximum power consumption of 3.55 W and an operating range of 0 to 40 °C and 10–90 % humidity, suitable for most office environments. Its plug‑and‑play mode allows quick startup, while its management features provide the control needed for networks requiring segmentation, prioritisation and basic security. Overall, the TP-Link TL-SG108E is a compact, reliable managed Gigabit desktop switch for users who need more features than an unmanaged model while keeping configuration accessible.

• Connections:
  • RJ45
  • SATA
  • Ethernet LAN
  • RCA
  • USB x 3
  • rj45 x 8
• Colour: Black
• Speed: 16 Gbps
• Voltage:
  • 100-240 V
  • 9 V
  • 220 V
  • 110 V
  • 240 V
  • 100 - 240 V
• Frequency:
  • 50-60 Hz
  • 50 - 60 Hz
• Material: Metal
• Memory Type: DDR3 SDRAM
• Power supply:
  • CA cable
  • DC
• Ports: 8
• Number of pieces: 4 Pieces
• Characteristics:
  • Plug and play
  • LED in operation indicator
• Amperage:
  • 1 A
  • 0,6 A
• Working range for humidity: 10 % - 90 %
• Approx. weight: 380 gr
• Approx. temperature: -40º / 70º
• Includes: User manual
• Safety: IGMP
• Processor Family:
  • Intel Core i5
  • Intel
• Nuclei: 1 core

Easily Expand Your Gigabit Network and Save Energy 8-Port Gigabit Easy Smart Switch Link Your Devices, Create Convenient Business The 8-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office. Gigabit Ports for Maximum Speed 8 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference. More Features,More Choices - QoS for a Lag-Free Experience Ensures smooth traffic for latency sensitive applications, such as voice and video - IGMP Snooping for Multicast Optimization Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. - VLAN for Security Helps to create network with higher security and better overall performance by dividing network into smaller groups Management Made Easy TL-SG108E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Durable Metal Casing The interior components of TL-SG108E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108E delivers switching performance you can depend on. Go Green with Your Ethernet TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

• Switch type: Unmanaged
• Switch layer: L2
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.1ab,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3u,IEEE 802.3x
• Port mirroring: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• VLAN support: Y
• Number of VLANs: 32
• MAC address table: 4000 entries
• Switching capacity: 16 Gbit/s
• Throughput: 11.9 Mpps
• Store-and-forward: Y
• Number of queues: 4
• Jumbo frames support: Y
• Jumbo frames: 16000
• Packet buffer memory: 1.5 MB
• IGMP snooping: Y
• Number of multicast groups filtered: 128
• Product colour: Black
• Housing material: Metal
• LED indicators: Y
• Certification: FCC, CE, RoHS
• Plug and Play: Y
• Power supply included: Y
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• DC input voltage: 9 V
• Input current: 0.6 A
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 12.55 BTU/h
• Width: 158 mm
• Depth: 100.7 mm
• Height: 25.4 mm
• Cables included: AC
• User guide: Y
• Package type: Box
• Package width: 191 mm
• Package depth: 130 mm
• Package height: 92 mm
