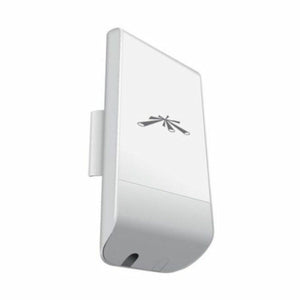

Access point UBIQUITI NanoStation M2 White

The NanoStation M2 by UBIQUITI is a professional wireless access point designed to provide reliable and efficient connectivity for long-distance links, ideal for outdoor environments and installations where signal stability is essential. This device operates on the 2.4GHz band and can reach transmission speeds of up to 10/100 Mbps, ensuring smooth data flow for demanding network applications. Built with durable white plastic, the NanoStation M2 combines robustness with a discreet, compact design that allows easy integration in any setting, whether mounted on facades or long-range masts. It features 32 MB of RAM to handle multiple simultaneous connections and process network traffic with stability. Power is supplied via 24V PoE, simplifying installation by requiring only one cable for both power and data, reducing wiring and making placement easier in hard-to-reach locations. This device is recognized by professionals for its reliability and ease of configuration, enabling the creation of point-to-point or point-to-multipoint wireless bridges with ease. The NanoStation M2 is perfectly suited for businesses, Internet service providers, or advanced users who need a robust, stable, and easy-to-deploy solution for outdoor wireless networks.

• Frequency:
  • 2,4 GHz - 5 GHz
  • 2,4GHz
  • 400 Hz
  • 2,4 GHz
• Type: Access point
• Product with plug: Yes
• Type of plug: Plug EU
• Colour: White
• Material: Plastic
• Internal Memory: 32 MB
• Capacity: 32 GB
• Voltage: 24 V
• Screen: 24"
• Connections:
  • RJ45
  • Ethernet LAN
  • PoE x 1
• Characteristics: LED in operation indicator
• Certificate: RoHS
• Weight: 180 g
• Compatible: PC
• Amperage: 0,5 A
• Speed: 10/100 Mbps
• Flash Memory: 1024 Mb

Compact CPE Design

The NanoStationM features the CPE design that expanded the global Wireless ISP industry.

Plug and Play Installation

The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting.

Versatile Application Use

The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.

Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Window/Wall Mounting Kit

Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.

• 2.4 GHz: Y
• Maximum data transfer rate: 150 Mbit/s
• Wi-Fi data rate (max): 150 Mbit/s
• Ethernet LAN data rates: 10,100 Mbit/s
• Frequency band: 2.412-2.462 GHz
• Networking standards: IEEE 802.3,IEEE 802.3u
• Maximum outdoor range: 10000 m
• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet (PoE): Y
• Input voltage: 24 V
• Input current: 0.5 A
• Power consumption (typical): 5.5 W
• Product colour: White
• Housing material: Plastic
• LED indicators: Y
• Certification: RoHS
• Internal: N
• Antenna gain level (max): 8 dBi
• Built-in processor: Y
• Processor model: Qualcomm Atheros
• Processor frequency: 400 MHz
• Processor architecture: MIPS 24Kc
• Flash memory: 8 MB
• Internal memory: 32 MB
• Operating relative humidity (H-H): 5 - 95%
• Operating temperature (T-T): -30 - 75 °C
• Width: 80 mm
• Depth: 31 mm
• Height: 163 mm
• Weight: 180 g
