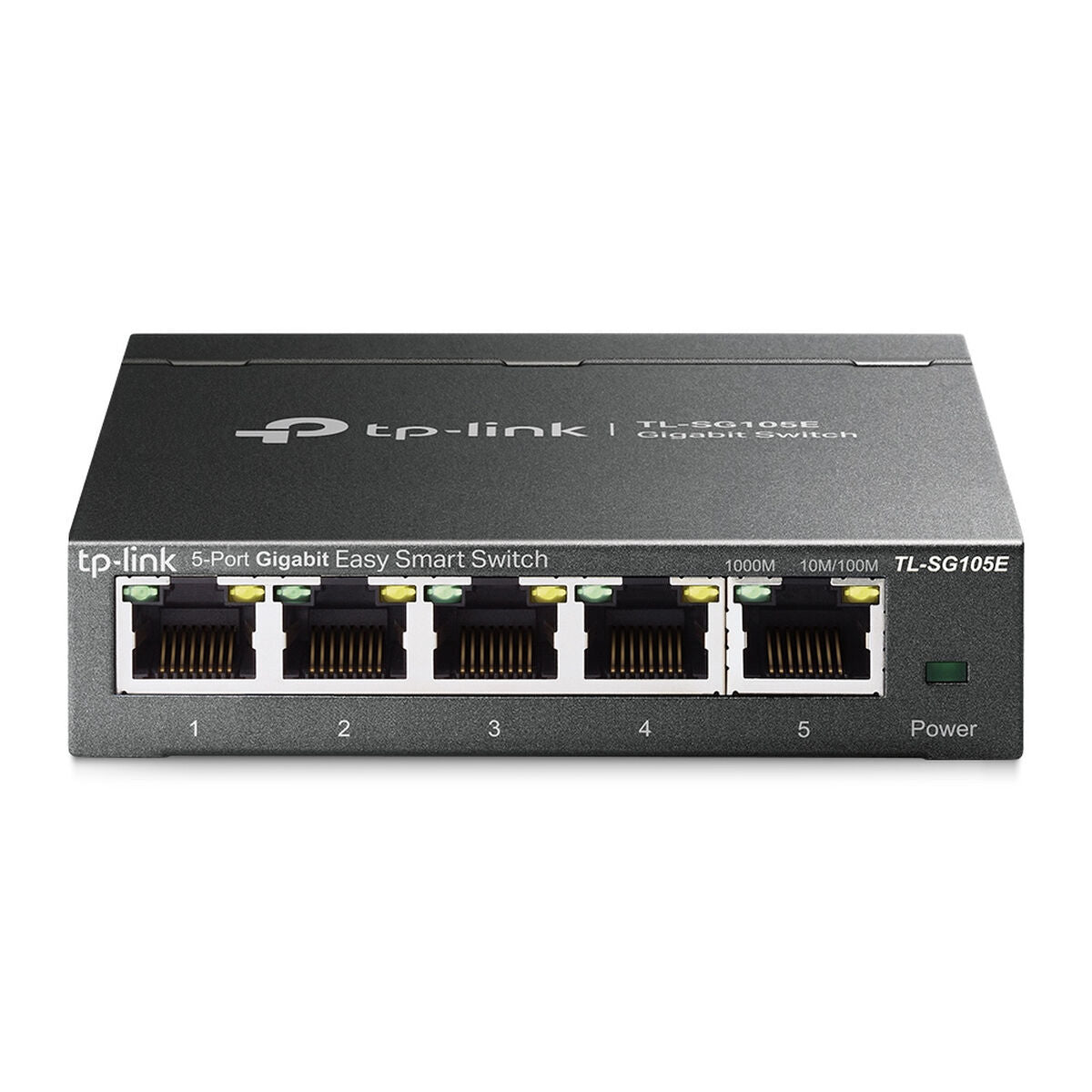

Desktop Switch TP-Link TL-SG105E

The TP-Link TL-SG105E is a desktop switch designed to provide efficient, high-speed network connectivity in home and small office environments. With a compact structure made of black metal, this device combines durability with a professional look. It features 5 RJ45 Gigabit Ethernet ports (10/100/1000 Mbps) that allow simultaneous connection of multiple devices, optimizing traffic distribution and transmission speed. Thanks to its Plug and Play feature, installation is simple without complex setup, while also offering a web interface and management utility to configure smart options and control the network more effectively. Integrated green technology reduces power consumption, maintaining a maximum of 2.66 W, contributing to energy savings and quieter operation since it has no fans. It supports recognized standards such as IEEE 802.3i, 802.3u, and 802.3ab, compatible with UTP cables from categories 3 to 6, ensuring efficient transmission up to 100 meters. Software features include support for quality of service (QoS) based on 802.1p/DSCP priority, traffic limiting, and storm control, as well as layer 2 functions like IGMP Snooping to optimize multicast, loop prevention, and cable diagnostics, essential for network stability and security. It supports up to 32 simultaneous VLANs, allowing network segmentation to improve performance and security. Regarding performance, the TL-SG105E has a packet forwarding rate of 7.4 Mpps and a 1 MB buffer memory, optimized to handle jumbo frames up to 15 KB. Its power supply is external with a 9VDC/0.6A output, and its compact dimensions, 100 x 98 x 25 mm, facilitate integration into any space without taking up much room. It also includes practical accessories such as a power cable, rubber feet for mounting, and an installation guide for quick setup. Compatible with various operating systems, from Windows XP to Linux or Mac OS, it is a versatile and robust solution to enhance wired network infrastructure with a reliable and efficient product. In summary, the TP-Link TL-SG105E is a smart, compact Gigabit switch that offers a balanced combination of performance, advanced management, and sturdy design, ideal for users needing stable, easy-to-manage connectivity in small to medium networks.

• Power supply:
  • Electric Network
  • Cable
  • CA cable
  • Iincluded
  • DC
  • AC
• Approx. dimensions:
  • 10 x 9,8 x 2,5 cm
  • 10 x 25,5 x 9,8 cm
• Characteristics:
  • Light indicator
  • LED indicator
  • Installation guide included
  • LED in operation indicator
• Energy consumption: 2,66 W
• Speed:
  • 7.4 Mbps
  • 10/100/1000 Mbps
  • 1 Gbps
• Voltage:
  • 100-240 V
  • 5 V
  • 220 V
  • 110 V
• Type of plug: Plug EU
• Product with plug: Yes
• Connections:
  • RJ45
  • QoS
  • Ethernet LAN
  • RJ45 x 5
• Type:
  • Tablecloth
  • Switch
• Feeding dish included: Yes
• Colour:
  • Aluminium
  • Silver
  • Black
• Height: 25 mm
• Width:
  • 100 mm
  • 10 cm
• Internal Memory: 1 MB
• Approx. diameter: Ø 10 cm
• AC input voltage: 5 V
• Connectivity: Gigabit Ethernet
• Technology: 1000Base-T
• Standard: IEEE 802.1p Class of Service (CoS) prioritization
• Certificate:
  • FCC
  • CE
  • RoHS
• Material: Metal
• Memory Type: DDR3 SDRAM
• Frequency: 50 Hz
• Ports: 5
• Number of pieces: 4 Pieces
• Remote control: No
• Approx. weight: 390 g
• Weight: 290 g
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Includes: User manual
• Safety: IGMP
• Amperage: 0,6 A
• Nuclei: 1 core

Easily Expand Your Gigabit Network and Save Energy 5-Port Gigabit Easy Smart Switch Link Your Devices, Create Convenient Business The 5-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office. Gigabit Ports for Maximum Speed 5 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference. More Features,More Choices QoS for a Lag-Free Experience Ensures smooth traffic for latency sensitive applications, such as voice and video IGMP Snooping for Multicast Optimization Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. VLAN for Security Helps to create network with higher security and better overall performance by dividing network into smaller groups Management Made Easy TL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Durable Metal Casing The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on. Go Green with Your Ethernet TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

• Switch layer: L2
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 5
• Networking standards: IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 1000BASE-T,100BASE-TX,10BASE-T
• Port mirroring: Y
• Flow control support: Y
• Link aggregation: Y
• Auto MDI/MDI-X: Y
• VLAN support: Y
• Number of VLANs: 32
• MAC address table: 8192 entries
• Throughput: 7.4 Mpps
• Store-and-forward: Y
• Jumbo frames support: Y
• Jumbo frames: 16000
• Packet buffer memory: 1 MB
• IGMP snooping: Y
• Product colour: Black
• LED indicators: Y
• Certification: FCC, CE, RoHS
• Compatible operating systems: Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
• Power supply included: Y
• AC input voltage: 220 V
• AC input frequency: 50 Hz
• DC input voltage: 5 V
• Input current: 0.6 A
• Power consumption (max): 2.82 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 9.62 BTU/h
• Width: 99.8 mm
• Depth: 98 mm
• Height: 26 mm
• Cables included: AC
• Quick start guide: Y
• User guide: Y
• Package type: Box
• Rack mount kit: Y
• Package width: 128 mm
• Package depth: 125 mm
• Package height: 92 mm
