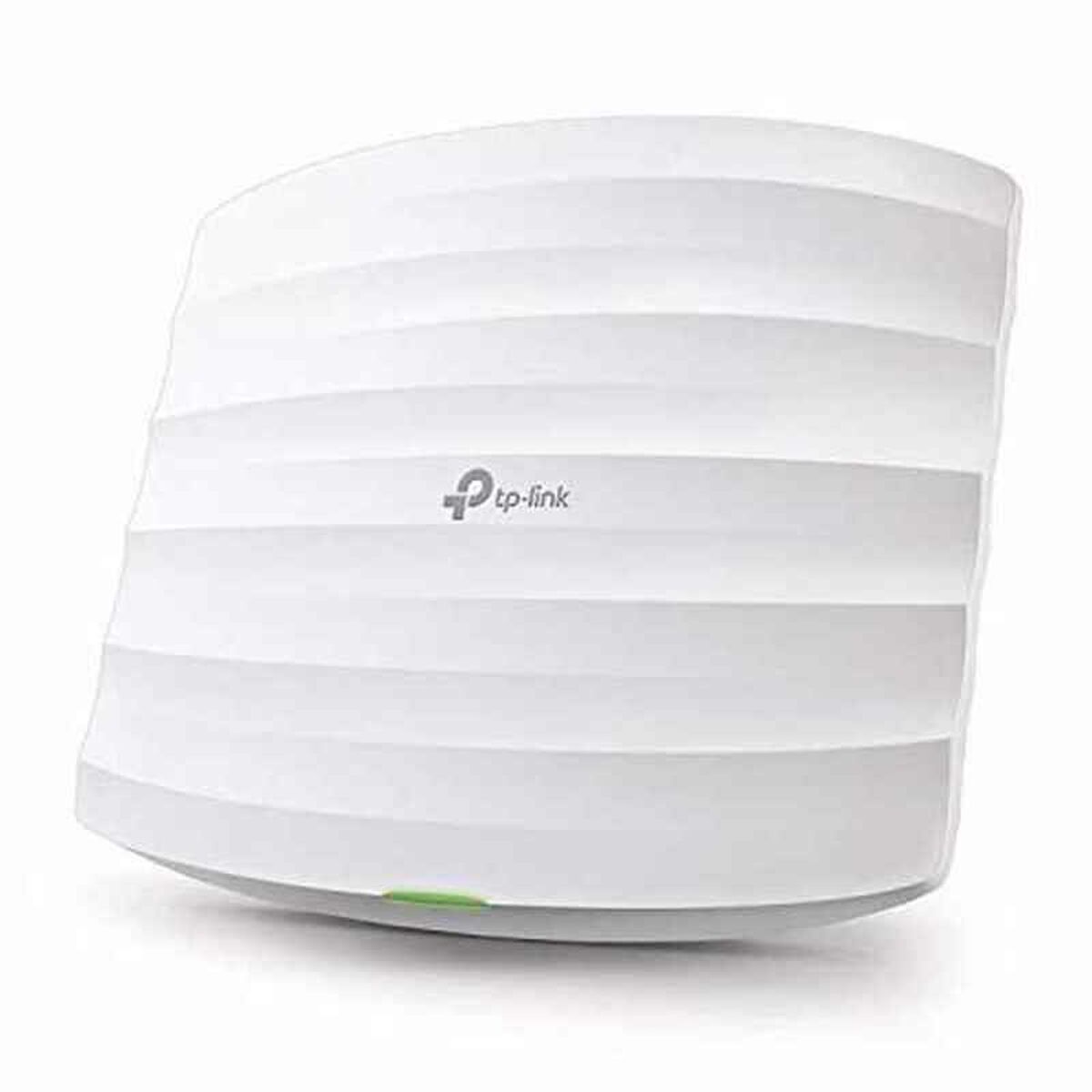

Access point TP-Link EAP245 5 GHz White

The TP-Link EAP245 is a professional access point designed to deploy secure, high-performance Wi-Fi networks in demanding business and home environments. With an elegant white color design for seamless aesthetic integration, this device utilizes dual-band technology to deliver speeds of up to 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz, reaching a combined throughput of up to 1750 Mbps—ideal for supporting multiple connected devices, streaming applications, video calls, or large file transfers without congestion. Compatible with Wi-Fi 802.11ac/n/b/g/a standards, it ensures versatile and stable connectivity across different device generations. It features high-gain internal antennas that enhance wireless coverage, as well as PoE (Power over Ethernet) functionality for easy ceiling or wall installation, eliminating the need for an additional power outlet. The EAP245 includes advanced centralized management features, enabling efficient control of multiple access points via the Omada platform, suitable for expanding networks. It comes with a clear installation guide for quick setup and is compatible with operating systems such as Windows XP. Power is supplied via a 12 V adapter, ensuring stable electrical delivery. Released in 2016, this model combines reliability, speed, and ease of use, making it an efficient and scalable solution to enhance the wireless network infrastructure of offices, retail spaces, or educational institutions.

• Type: Access point
• Product with plug: Yes
• Type of plug: Plug EU
• Power supply:
  • Electric Network
  • CA cable
  • CC
  • AC
• Colour: White
• Connections:
  • PoE x 1
  • 2
  • RJ45
  • SATA
• Connectivity:
  • LAN 10/100/1000Mbps
  • Wi-Fi
• Assembly: Wall mounting
• Characteristics:
  • Installation guide included
  • LED in operation indicator
• Year: 2016
• Operating System:
  • Windows XP
  • RouterOS
• Voltage:
  • 12 V
  • 110 V
• Insulation: Insulator
• Includes: Self-assembly Kit
• Frequency:
  • 2.4 GHz-5 GHz
  • 5 GHz
  • 2,4 GHz
• Power:
  • 27 W
  • 24 W
• Certificate: CE, FCC, RoHS
• Working range for humidity: 10 % - 90 %
• Connectors: Kensington
• Approx. temperature: -40º / 70º
• Amperage: 1,5 A
• Nuclei: 1 core

Superior Wi-Fi Speeds and Performance QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands. Seamless Roaming 802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted. Secure Guest Network with Facebook W-Fi and SMS Login Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. Multiple PoE Options for Easy Installation EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible. Free Cloud Centralized Management - Anytime, Anywhere Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself. Easy Management with the Omada App Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

• 2.4 GHz: Y
• 5 GHz: Y
• Maximum data transfer rate: 1300 Mbit/s
• Maximum data transfer rate (2.4 GHz): 450 Mbit/s
• Maximum data transfer rate (5 GHz): 1300 Mbit/s
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Frequency band: 2.4, 5 GHz
• Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af
• Automatic channel selection: Y
• MIMO: Y
• MIMO type: Multi User MIMO
• Virtual LAN features: SSID-based VLAN assignment
• Rate limiting: Y
• Wireless isolation: Y
• Airtime Fairness (ATF): Y
• Quality of Service (QoS) support: Y
• Transmitting power: 27 dBmW
• Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
• MAC address filtering: Y
• Number of SSID supported: 16
• Port-based Network Access Control (PNAC): Y
• Access Control List (ACL): Y
• Web-based management: Y
• Syslog: Y
• Ethernet LAN (RJ-45) ports: 2
• DC-in jack: Y
• Power over Ethernet (PoE): Y
• Input voltage: 12 V
• Input current: 1.5 A
• Power consumption (typical): 12.3 W
• Placement: Ceiling, Wall
• Product colour: White
• Cable lock slot: Y
• Cable lock slot type: Kensington
• Reset button: Y
• LED indicators: Power
• Certification: CE, FCC, RoHS
• Antenna type: Internal
• Antenna direction type: Omni-directional
• Antenna features: Integrated antenna
• Antenna gain level (max): 4 dBi
• Compatible operating systems: Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
• Operating relative humidity (H-H): 10 - 90%
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Storage relative humidity (H-H): 5 - 90%
• Width: 205.4 mm
• Depth: 181.6 mm
• Height: 38 mm
• PoE adapter included: Y
• Mounting kit: Y
• Quick start guide: Y
• Package width: 340 mm
• Package depth: 228 mm
• Package height: 65 mm
