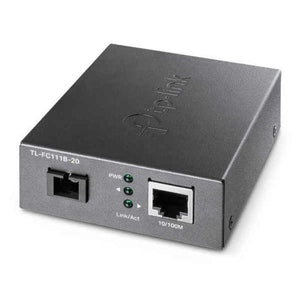

Network Adaptor TP-Link TL-FC111B-20

• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • Ethernet LAN
  • RJ45
  • PCI Express x16 2.0
• Power supply:
  • Electric Network
  • Wired
• Colour: Black
• Output voltage: 5 V
• Data transfer: 100 Mbit/s
• Characteristics: Non-stick
• Voltage: 5 V
• Certificate: RoHS
• LED indicator: switching on, change of intensity or charge
• Weight: 340 g
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Amperage: 0,6 A

What This Product Does TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. How This Product Works TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm. Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

• Maximum data transfer rate: 100 Mbit/s
• Networking standards: IEEE 802.3,IEEE 802.3i,IEEE 802.3x
• Copper ethernet cabling technology: 10BASE-T,100BASE-T
• Fiber ethernet cabling technology: 100BASE-FX
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• Duplex system: Full, Half
• Cable types supported: Cat3,Cat4,Cat5,Cat5e
• Fiber optic connector: SC
• Connectivity technology: Wired
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 1
• Maximum transfer distance: 20000 m
• Fiber mode structure: Single-mode
• Fiber cable diameters supported (core/cladding): 9/125 µm
• Internal: N
• LED indicators: Activity, Link, Power
• Product colour: Black
• Certification: FCC, CE
• Output voltage: 5 V
• Output current: 0.6 A
• Width: 94.5 mm
• Depth: 73 mm
• Height: 27 mm
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Sustainability certificates: RoHS
