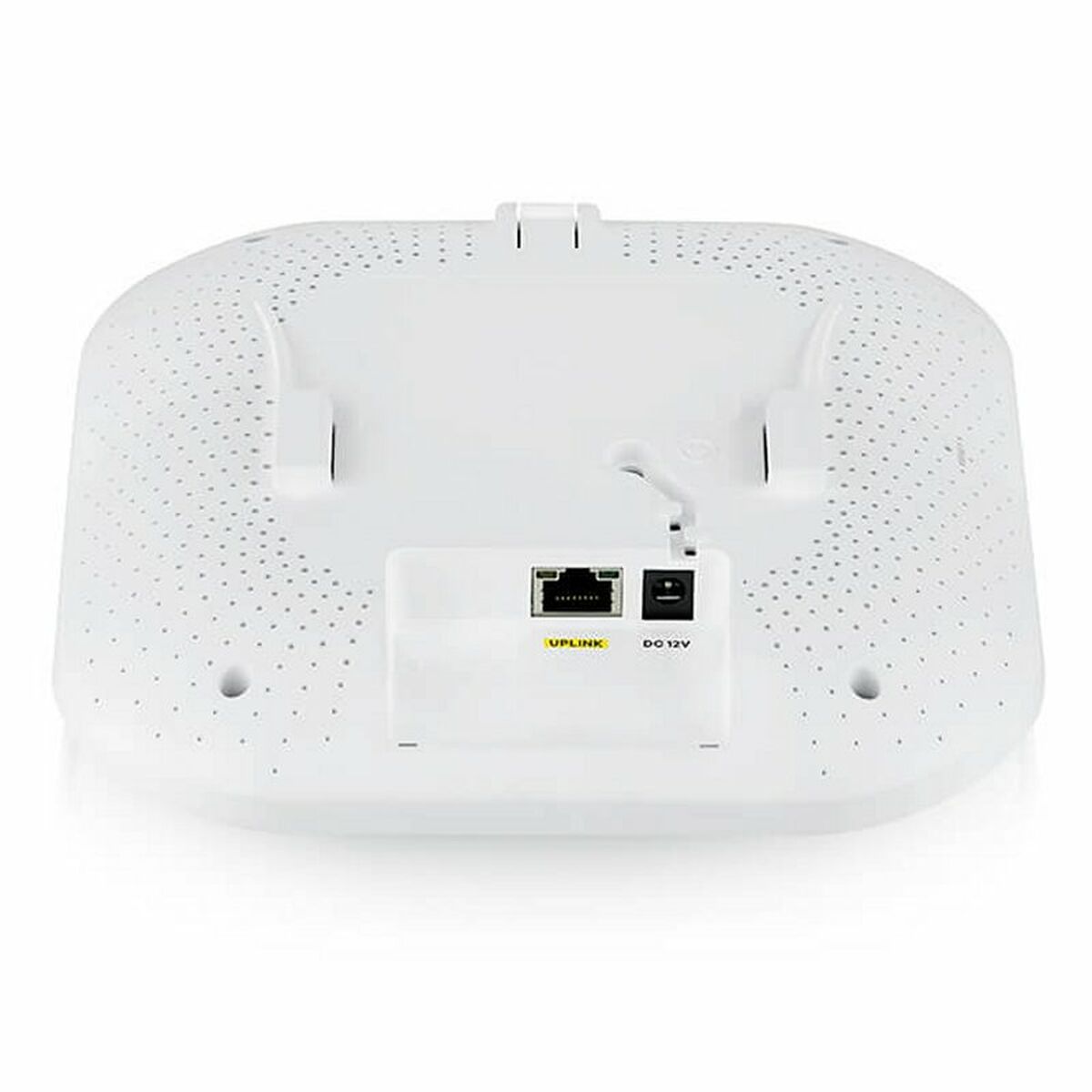

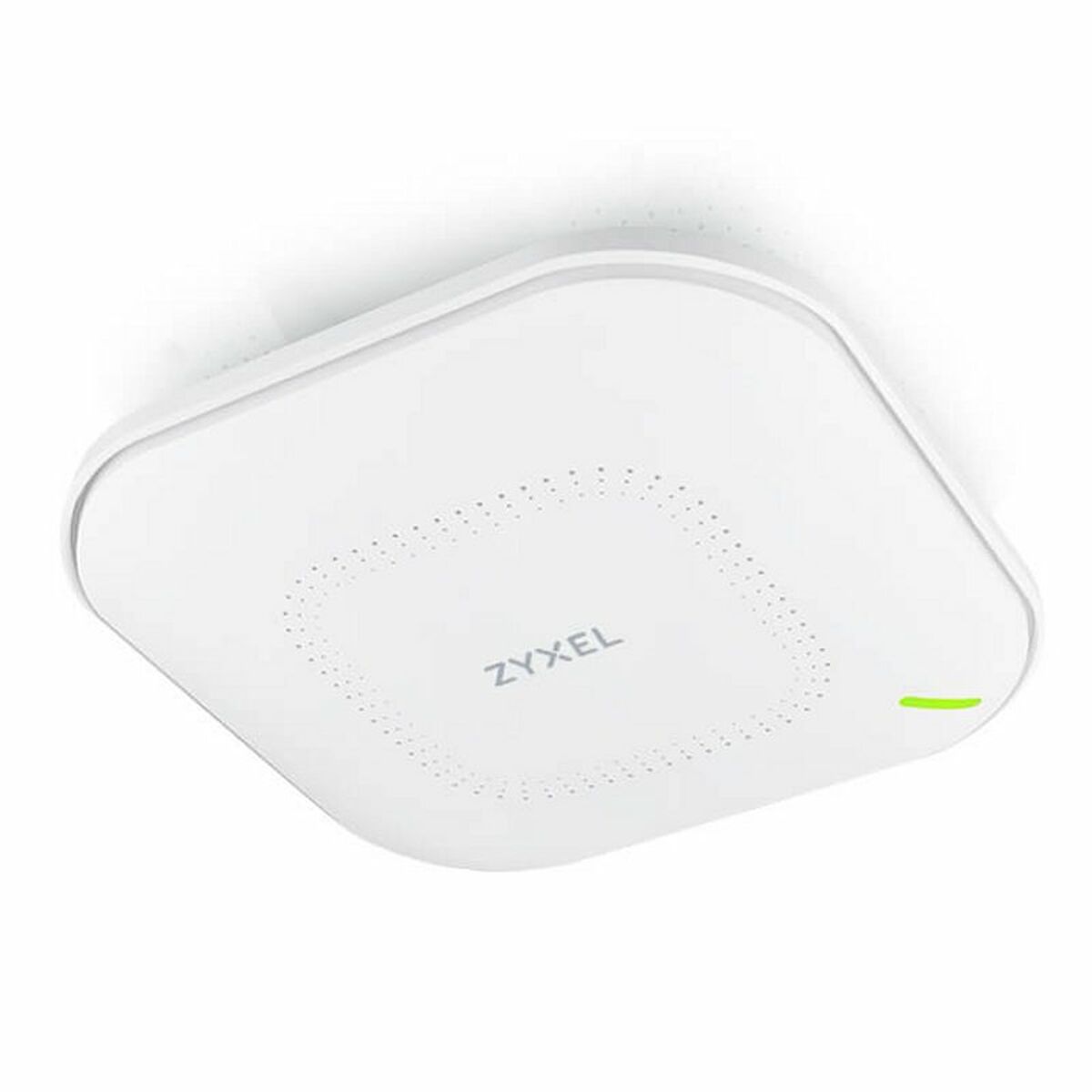

Access Point Repeater ZyXEL NWA110AX-EU0102F White

The Zyxel NWA110AX is a repeater access point designed to extend and improve wireless coverage in residential and professional environments using advanced Wi-Fi 6 technology (IEEE 802.11ax). It features a compact and functional design in white with a plastic casing and dimensions of 180 x 180 x 39 mm, allowing discreet integration into any space. This device supports connections at speeds up to 1 Gbps and offers dual-band compatibility with 2.4 GHz and 5 GHz frequencies, reaching wireless speeds up to 575 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz, ensuring efficient and stable data flow for multiple simultaneous devices. It includes a physical interface with a 10/100/1000 Mbps RJ45 Ethernet port, plus support for PoE (Power over Ethernet) and 12 V DC power input, facilitating installation in locations with limited power access. The unit features optimized 2x2 MIMO antennas with a maximum gain of up to 6 dBi on the 5 GHz band, providing excellent signal quality and extended wireless range. Regarding security, it integrates advanced protocols including WPA3, WPA2-PSK, and WPA Enterprise, as well as RADIUS authentication and MAC filtering, ensuring optimal network protection against unauthorized access. Additional features include fast roaming support (802.11r/k/v), load balancing, and VLAN networks, enabling efficient and secure network traffic management. The Zyxel NWA110AX is managed via the Nebula Cloud platform for centralized administration, with access to ZON utilities for configuration, device discovery, and firmware updates, offering simple remote control and flexibility for network administrators. This model includes a power on/off switch and accessories such as mounting plate and screws, optimizing installation and setup. Its robust build and technical specifications make it a versatile solution to extend wireless networks with advanced performance and updated security measures. In summary, the Zyxel NWA110AX is a reliable device for users and businesses needing effective Wi-Fi coverage enhancement with cutting-edge technology, balancing speed, security, and ease of management.

• Connectivity: Wi-Fi
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • RJ45 x 1
  • RJ45
  • PoE x 1
• Type:
  • Access Point Repeater
  • Wi-Fi repeater
• Power supply: Electric Network
• Speed: 1 Gbps
• Colour: White
• Material: Plastic
• Characteristics:
  • On/off interrupter
  • LED in operation indicator
• Frequency:
  • 2,4GHz
  • 5 GHz
  • 2,4 GHz
• Operating System: RouterOS
• Power: 22 W
• Voltage: 5-12 V
• Control: App
• Energy consumption: 17 kWh
• Amperage: 1,5 A
• Accuracy (relative humidity): 10 % - 95 %

WiFi 6, Wait No More NWA110AX The Best Deal of 11ax Access Point True WiFi 6 The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products. Simpler upgrade path The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches Manage it your way! As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.

• 2.4 GHz: Y
• 5 GHz: Y
• Maximum data transfer rate: 1000 Mbit/s
• Maximum data transfer rate (2.4 GHz): 575 Mbit/s
• Maximum data transfer rate (5 GHz): 1200 Mbit/s
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Frequency band: 2.412 - 2.472, 5.470 - 5.725 GHz
• Bandwidth: 0.08 GHz
• Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
• Cabling technology: 10/100/1000Base-T(X)
• Automatic channel selection: Y
• Automatic channel scanning: Y
• MIMO: Y
• MIMO type: Multi User MIMO
• Wi-Fi Multimedia(WMM)/(WME): Y
• Fast roaming: Y
• VLAN support: Y
• Virtual LAN features: SSID-based VLAN assignment
• Band steering: Y
• Transmitting power: 22 dBmW
• Receiver sensitivity: Min. Rx sensitivity up to -101 dBm
• Security algorithms: WPA,WPA-PSK,WPA2,WPA2-Enterprise,WPA3
• Routing protocols: IP
• IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
• Web-based management: Y
• Command-line interface (CLI): Y
• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet (PoE): Y
• Input voltage: 5 - 12 V
• Input current: 1.5 A
• Power consumption (typical): 17 W
• Placement: Ceiling, Table, Wall
• Product colour: White
• On/off switch: Y
• Reset button: Y
• WPS push button: Y
• LED indicators: Y
• Certification: FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
• Antenna type: Internal
• Antenna features: Integrated antenna
• Antennas quantity: 2
• Antenna gain level (max): 6 dBi
• Polarization: Dual polarization
• Operating relative humidity (H-H): 10 - 95%
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -30 - 70 °C
• Storage relative humidity (H-H): 10 - 90%
• Width: 180 mm
• Depth: 180 mm
• Height: 39 mm
• Weight: 453 g
• Number of products included: 1 pc(s)
• AC adapter included: Y
• Mounting kit: Y
• Quick start guide: Y
• Package width: 229 mm
• Package depth: 216 mm
• Package height: 64 mm
• Package weight: 770 g
